ADF, 216 x 355.6mm, 600 DPI, 40ppm, 3000 Pages/Day, 100-240V, 18W, 298x135x133mm, 2.5kg
Key Features
- Supports both USB 3.2 Gen 1x1 high-speed connection and wired network connection
- Compact and user-friendly design
- High quality technologies for accurate and reliable feeding
- Plastic card scanning
- Comes with PaperStream IP and PaperStream Capture providing advanced image processing functions
- Various software available for better data management
Description

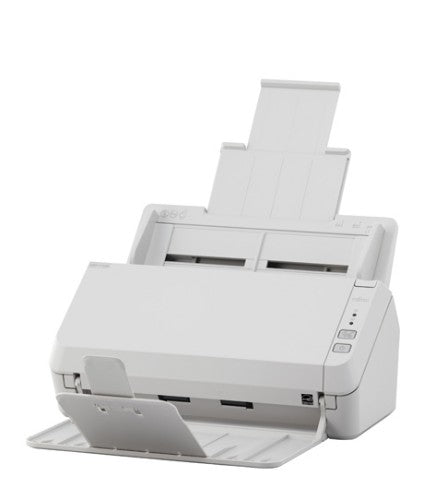

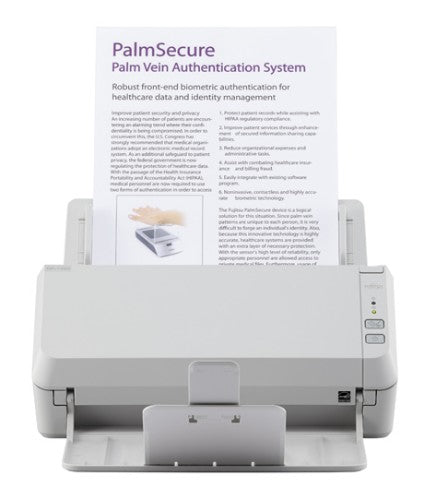

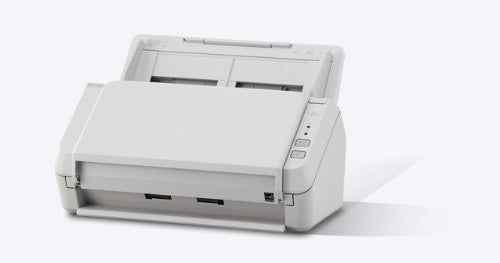

FUJITSU Image Scanner SP-1120NSP-1120N scans documents at 20 ppm/40 ipm (A4 portrait 200/300 dpi) and loads up to 50 sheets at a time. With a compact and network compatible design, the unit provides high-value performance as an entry-level model for all businesses.
Assistance for safe and reliable scanningSP-1120N comes with brake rollers to deliver accurate page separation and prevent any multi-feeding errors from occurring. This mechanism and our ultrasonic multi-feed sensors combined, provide users with stable paper feeding, prevent any potential information loss from occurring, and enable scanning of all documents and cards at the office with maximized precision and efficiency. Application forms and ID cards at the reception desk, for instance, can be scanned in just one batch, allowing for quick processing and little customer wait time.
Flexible and easy operation to improve daily workflowHigh-speed USB 3.2 Gen 1x1 and wired network connection expands the versatility of user operation so that users are no longer confined to operating near the computer. Operation is now possible in a wider variety of locations, with reliable network environment support. SP-1120N is also compact in size, making it the perfect scanner to use on a desk or reception space where space is limited. As an entry-level model, operation is simple with just 2 buttons to choose from: “Scan/Stop” and “Power ON/OFF”. This simple and easy-to-use design minimizes scanning procedures and human errors in any organization. All these features combined, enable anyone to operate the scanner anywhere.
Software for ultimate business efficiencyPaperStream IP for SP Series, the scanner driver supporting both TWAIN and ISIS, enables hassle-free scanning so that operators do not need to make fine OCR setting adjustments. The software automatically converts scanned images into exceptionally clean images, raising OCR accuracy, even when scanning wrinkled and soiled documents, or documents with background patterns. With PaperStream Capture, capture batches of all sizes with utmost efficiency.
Document software for maximized flexibilityEasily find the information you need using ABBYY FineReader Sprint. Specializing in OCR processing, the software is compatible with over 190 languages and generates both searchable PDF and Microsoft Office documents.
Specifications
| Scanning |
|---|
| Output greyscale depth |
8 bit |
| Output monochrome depth |
1 bit |
| Background colours |
White |
| Maximum scan size |
8.5 x 14" (216 x 355.6 mm) |
| Optical scanning resolution |
600 x 600 DPI |
| Colour scanning |
Yes |
| Duplex scanning |
Yes |
| Output colour depth |
24 bit |
| ADF scan speed (b/w, A4) |
20 ppm |
| Duplex ADF scan speed (b/w, A4) |
40 ipm |
| Duplex ADF scan speed (colour, A4) |
40 ipm |
| Sensor type |
CMOS dual CIS |
| Light source |
RGB LED |
| Scan file formats |
PDF |
| Daily duty cycle (max) |
3000 pages |
| Design |
|---|
| Scanner type |
ADF scanner |
| Product colour |
Gray |
| Performance |
|---|
| Sensor type |
CMOS dual CIS |
| Light source |
RGB LED |
| Scan file formats |
PDF |
| Daily duty cycle (max) |
3000 pages |
| Scan drivers |
ISIS, TWAIN |
| Input capacity |
|---|
| Auto document feeder (ADF) input capacity |
50 sheets |
| Paper handling |
|---|
| Maximum ISO A-series paper size |
A4 |
| Minimum scan area (ADF) |
2.05 x 2.91" (52 x 74 mm) |
| Auto Document Feeder (ADF) media weight |
50 - 209 g/m² |
| Multi feed detection |
Yes |
| Letter |
Yes |
| Long-paper mode |
Yes |
| Card thickness (max) |
0.0299" (0.76 mm) |
| Ports & interfaces |
|---|
| USB port |
Yes |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Scan drivers |
ISIS, TWAIN |
| Power |
|---|
| Power consumption (typical) |
18 W |
| Power consumption (off) |
0.3 W |
| Input voltage |
100-240 V |
| Power supply type |
AC |
| Power consumption (sleep) |
2 W |
| Sleep mode |
Yes |
| Media formats |
|---|
| Letter |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Technical details |
|---|
| Scanner type |
ADF scanner |
| Product colour |
Gray |
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
RoHS |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Weight & dimensions |
|---|
| Width |
11.7" (298 mm) |
| Depth |
5.31" (135 mm) |
| Height |
5.24" (133 mm) |
| Weight |
5.51 lbs (2.5 kg) |
| Other features |
|---|
| Ethernet LAN |
Yes |
| Scanner type |
ADF scanner |
