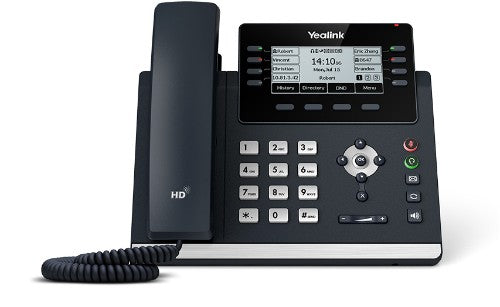

Yealink SIP-T43U IP phone Gray 12 lines LCD Wi-Fi

3.7" 360x160 LCD, Wi-Fi, Bluetooth 4.1, 2x Gigabit LAN, 2x USB, 12 VoIP, PoE

Key Features

• 3.7" 360x160-pixel graphical LCD with backlight
• Dual USB ports
• Dual firmware images
• Opus codec support
• T4U Auto-P template unified
• T4U firmware unified
• Up to 12 SIP accounts
• PoE support
• USB headset and EHS support
• Wi-Fi via WF40/WF50
• Bluetooth via BT40/BT41
• Supports color-screen expansion modules
• Stand with 2 adjustable angles
• Wall mountable

Description

A Well-Rounded SIP Phone for Clear Communications
The SIP-T43U IP phone is a feature-rich business tool for excellent communications and extended functionality. It is a 12-line IP phone that comes with a 3.7-inch large black-and-white screen and the EXP43 support. United Yealink Optima HD Voice technology and wideband codec of Opus, the T43U awards you the superb audio quality and crystal-clear voice communications. The phone feels quicker and more responsive when performing call features. Moreover, the T43U puts dual USB ports in a phone that makes Bluetooth, Wi-Fi, USB headset and USB recording come true, and you can use any two of them freely according to your needs. The Yealink new T4U series offers the same elegant appearance as the T4 line, but with improvements for greater interoperability and better collaboration.

Easy Customization and High Expansibility
Accompanied by two USB ports, the T43U is your right-hand man in the office that makes Bluetooth, Wi-Fi, USB headset and USB recording possible, and you can use any two of them freely according to your needs to enrich phone features. Meanwhile, the phone not only has three pages of flexible buttons that can be easily programmed with 21 paperless DSS keys at most, but also can connect up to three expansion modules, for up to 180 additional buttons with a screen-based LCD display and LED system.

HD Audio
Yealink Optima HD Voice technology combines cutting-edge hardware and software with wideband technology for maximum acoustic performance. Being a totally open, highly versatile audio codec, Opus, is designed to perform a higher HD audio quality than other wideband codecs in a high network bandwidth; However, if your current network quality is poor, Opus can provide you with a better audio quality than other narrowband codecs. And its hearing aid compatible (HAC) handset helps the person who is with hearing loss to hear the voice more clearly.

Efficient Installation and Provisioning
Yealink T4U series supports efficient provisioning and effortless mass deployment with Yealink’s Redirection and Provisioning Service (RPS) and Boot mechanism to help you realize the Zero Touch Provisioning without any complex manual settings, which makes the T4U series simple to deploy, easy to maintain and upgrade. Furthermore, a unified firmware and auto-p template that applies to all T4U phone models, saves even more time and costs for businesses, as well as simplifies the management and maintenance.

Secure Transport and Interoperability
Yealink T4U series uses SIP over Transport Layer Security (TLS/SSL), which is the latest network security technology. It’s also compatible with leading soft switch suppliers, such as 3CX, Broadsoft Broadworks. Moreover, it is carried with dual fimrware images that gives you a enterprise-level protection to avoid bricking your system once upgrade failed.

Specifications

Features
SIP registrar server	Yes
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Handset type	Wired handset
Mounting	Desk/Wall
Wall mountable	Yes
Plug and Play	Yes
Handset	Yes
Expansion module support	Yes
Ethernet cable	Yes
Product colour	Gray
Hearing aid compatibility	Yes
Design
Product type	IP Phone
Handset type	Wired handset
Mounting	Desk/Wall
Wall mountable	Yes
Product colour	Gray
Performance
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Hearing aid compatibility	Yes
Phone features
Call transfer	Yes
Call return	Yes
SIP registrar server	Yes
Number of VoIP accounts	12
Answering machine	Yes
Lines quantity	12 lines
Speed dialling	Yes
Redialing	Yes
Phonebook capacity	1000 entries
Full duplex	Yes
Conference call	Yes
Caller ID	Yes
Call waiting	Yes
Call hold	Yes
Call forwarding	Yes
Anonymous call rejection	Yes
Anonymous call	Yes
Call history	Yes
Management features
Plug and Play	Yes
Display
Touchscreen	No
Display resolution	360 x 160 pixels
Display diagonal	3.7"
Display	LCD
Backlight display	Yes
Audio
Comfort noise generation (CNG)	Yes
Voice codecs	AGC, AJB, AMR-NB, AMR-WB, G.711Mu, G.711a, G.723.1, G.726, G.729ab, OPUS, PLC, VAD, iLBC
Speakerphone	Yes
Microphone mute	Yes
Packet loss concealment (PLC)	Yes
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth version	4.1
Wi-Fi	Yes
Syslog	Yes
Supported network protocols	FTP/TFTP/HTTP/HTTPS, IPv6, LLDP/CDP/DHCP VLAN
Quality of Service (QoS) support	Yes
Ethernet LAN	Yes
DHCP client	Yes
Bluetooth	Yes
Technical details
Sustainability compliance	Yes
Harmonized System (HS) code	85171800
Compliance certificates	REACH, RoHS
Ports & interfaces
USB 2.0 ports quantity	2
RJ-9 ports quantity	2
Expansion module support	Yes
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes
Certificates
Sustainability compliance	Yes
Compliance certificates	REACH, RoHS
Power
AC adapter output current	1.2 A
Power over Ethernet (PoE)	Yes
Power consumption (typical)	2.2 W
AC adapter output voltage	5 V
AC adapter input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95%
Weight & dimensions
Width	8.85" (224.9 mm)
Depth	8.12" (206.2 mm)
Height	6.89" (174.9 mm)
Package width	9.69" (246 mm)
Package depth	8.78" (223 mm)
Package height	4.72" (120 mm)
Packaging content
Number of handles included	1 pc(s)
Quick start guide	Yes
Handset	Yes
Ethernet cable	Yes
Mounting kit	Yes
Logistics data
Harmonized System (HS) code	85171800
