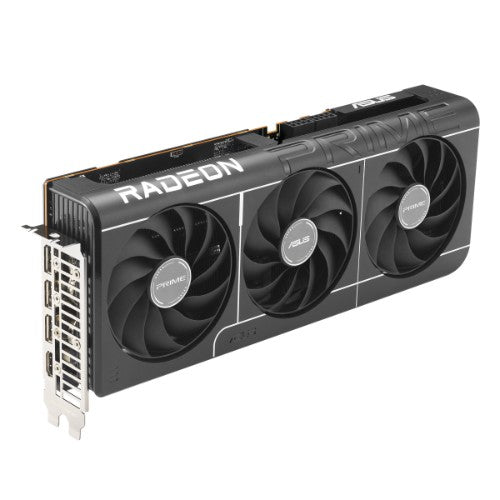

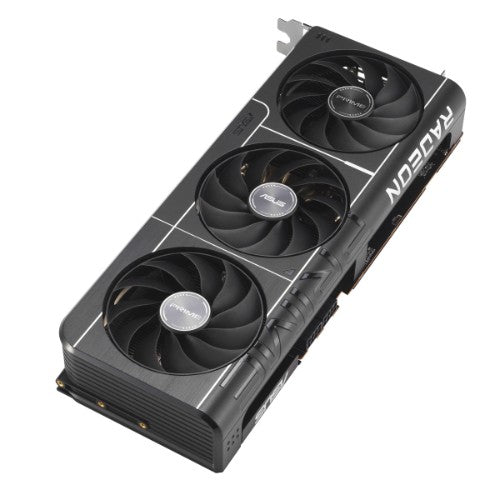

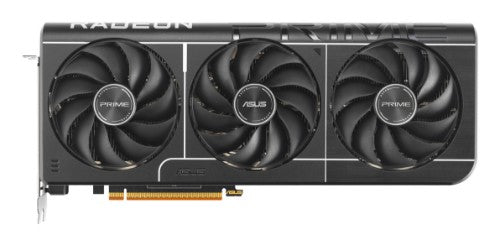

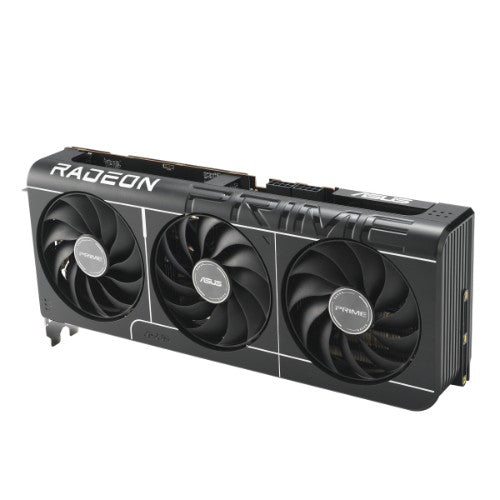

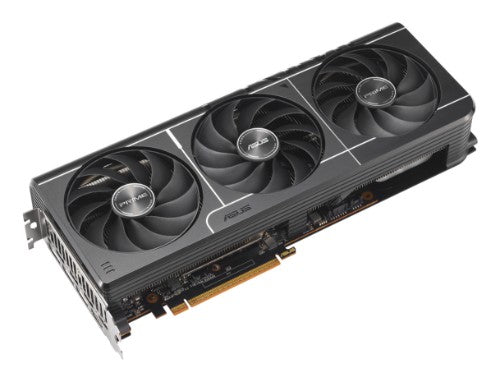

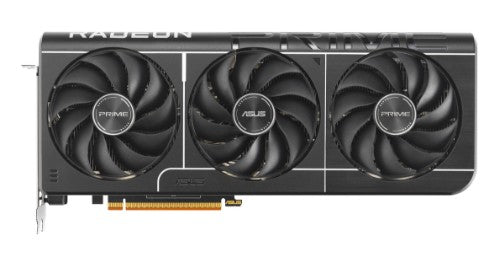

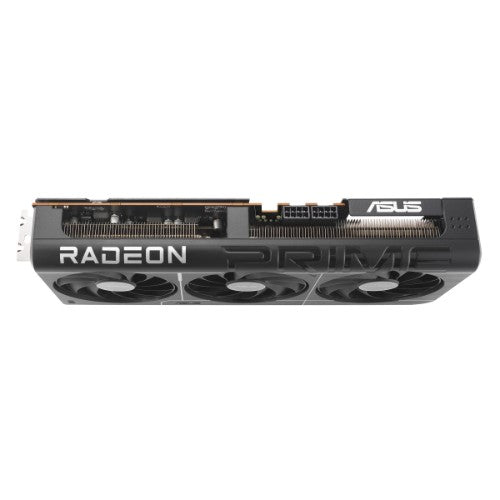

16 GB, GDDR6, 256-bit, PCI Express 5.0, 3x DisplayPort, 1x HDMI, 2x 8-pin, 2.5 slot
Description
Primed for PowerExperience Primal performance with the Prime Radeon™ RX 9070 graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a phase-change GPU thermal pad and a triple-fan setup for supreme cooling.
Cooling
2.5-slot DesignThe Prime Radeon™ RX 9070 features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.
Axial-tech UpgradesThree tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.
0dB TechnologyAll three fans come to a standstill when GPU temperatures are below 55°C, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 60°C, establishing a speed curve that balances performance and acoustics for work or play.
Dual Ball Fan BearingsDifferent bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.
Vented BackplateLarge backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
MaxContact DesignMaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.
Phase-Change GPU Thermal PadBy melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Unmatched Reliability
ASUS GPU Guard & BracketASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

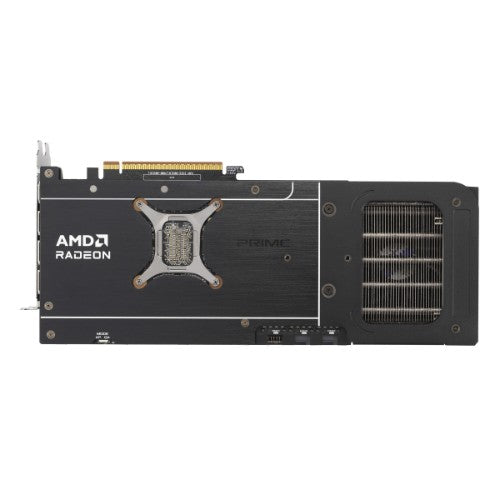

Protective BackplateThe PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.
Stainless Steel BracketThe mounting bracket features grade 304 stainless steel, chosen for its strength and high resistance to corrosion.
Engineering
Dual BIOSDo you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time, and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at moderate temperatures.
Auto−Extreme TechnologyAn automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
Specifications
| Processor |
|---|
| Graphics processor family |
AMD |
| Processor boost clock speed |
2590 MHz |
| Stream processors |
3584 |
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| CUDA |
No |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
Radeon RX 9070 |
| Memory |
|---|
| Discrete graphics card memory |
16 GB |
| Data transfer rate |
20 Gbit/s |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR6 |
| Ports & interfaces |
|---|
| HDMI version |
2.1b |
| Mini HDMI ports quantity |
0 |
| Mini DisplayPorts quantity |
0 |
| HDMI ports quantity |
1 |
| DisplayPort version |
2.1a |
| DisplayPorts quantity |
3 |
| DVI-I ports quantity |
0 |
| DVI-D ports quantity |
0 |
| Interface type |
PCI Express 5.0 |
| Thunderbolt 3 ports quantity |
0 |
| Video |
|---|
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| HDMI version |
2.1b |
| HDCP |
Yes |
| Dual Link DVI |
No |
| Performance |
|---|
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| HDCP |
Yes |
| Dual Link DVI |
No |
| TV tuner integrated |
No |
| HDCP version |
2.3 |
| Overclocked (OC) edition |
Yes |
| Design |
|---|
| Number of fans |
3 fan(s) |
| Cooling type |
Active |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Product colour |
Black |
| Number of slots |
2.5 |
| Bracket height |
Full-Height (FH) |
| Cooling technology |
ASUS Axial-tech |
| Power |
|---|
| Supplementary power connectors |
2x 8-pin |
| Minimum system power supply |
650 W |
| Weight & dimensions |
|---|
| Number of slots |
2.5 |
| Weight |
2.56 lbs (1.16 kg) |
| Height |
5.12" (130 mm) |
| Depth |
1.97" (50 mm) |
| Length |
12.3" (312 mm) |
| Technical details |
|---|
| Cooling type |
Active |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Product colour |
Black |
| TV tuner integrated |
No |
| System requirements |
|---|
| Minimum system power supply |
650 W |
| Packaging data |
|---|
| Package type |
Box |
| Package width |
15.9" (405 mm) |
| Package height |
3.48" (88.5 mm) |
| Package depth |
9.17" (233 mm) |
| Package weight |
3.86 lbs (1.75 kg) |
| User guide |
Yes |
| Packaging content |
|---|
| User guide |
Yes |
