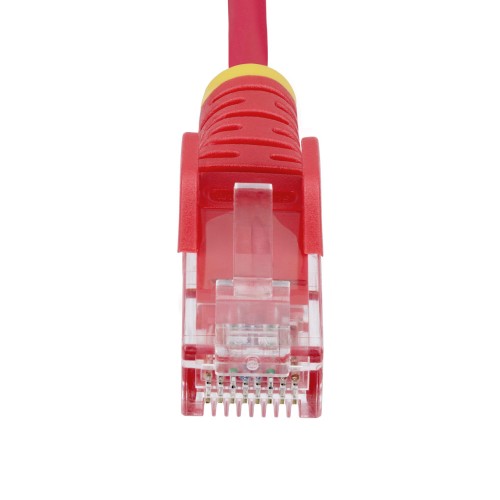

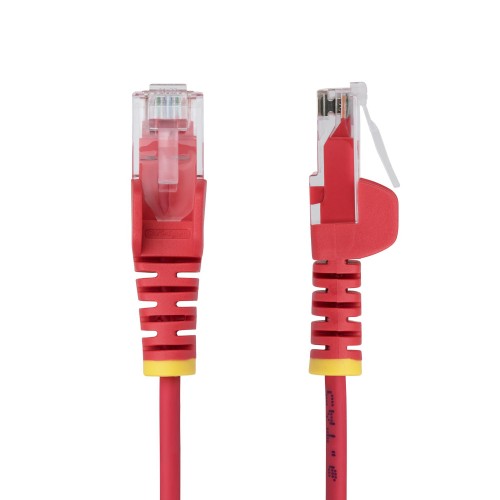

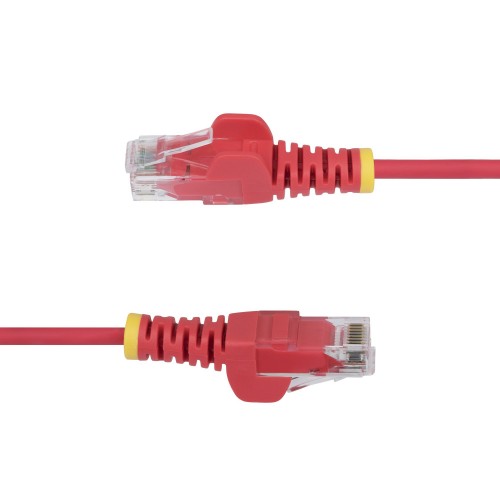

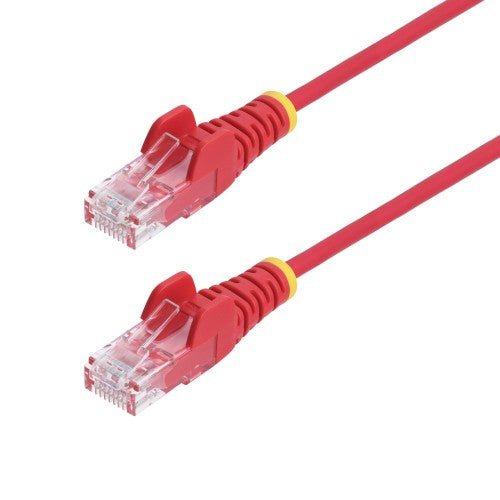

StarTech.com 2ft Red Slim CAT6 Ethernet Cable, Snagless RJ45, LSZH, 28AWG Pure Bare Copper, Slim Network Patch Cable/Cord
Key Features
- SLIM CAT6 CABLE: Streamline cabling in crowded setups using Slim Cat6 Cables; 36% slimmer diameter enables greater flexibility than standard Cat6 cabling; Supports Power over Ethernet (PoE++) up to 90W; Low Near-End Crosstalk (NEXT) and Return Loss (RL)
- QUALITY CONSTRUCTION: Snagless 50-micron gold-plated contacts enable a precise fit to minimize signal loss; 28AWG Pure Bare Copper wire delivers consistent power and throughput; Low-Smoke Zero Halogen (LSZH) jacket is flexible for routing in tight spaces
- SAFETY AND RELIABILITY: Compliant with ANSI/TIA-568-C.2 standards for guaranteed Cat6 performance; LSZH jacket is safe for enclosed/poorly ventilated spaces and emits low toxic fumes if combusted; PoE++ specifications complies with IEEE 802.3bt Type 4
- APPLICATIONS: Ideal for high-density network closets and cable management panels; Slim Cat6 cables enhance accessibility when troubleshooting and promote improved airflow between devices; Connect reliably to PoE devices such as IP or boardroom cameras
- SPECS: 2-foot; Red; Snagless RJ45; 1 Gbps; 250MHz; 90W PoE++; UTP; Gold-Plated Contacts; LSZH Jacket; 28AWG Pure Bare Copper Wire; 3.6mm (0.14in) Cable O.D.; Fluke Tested; Supports Cat 6 and Cat 5/5e
Description

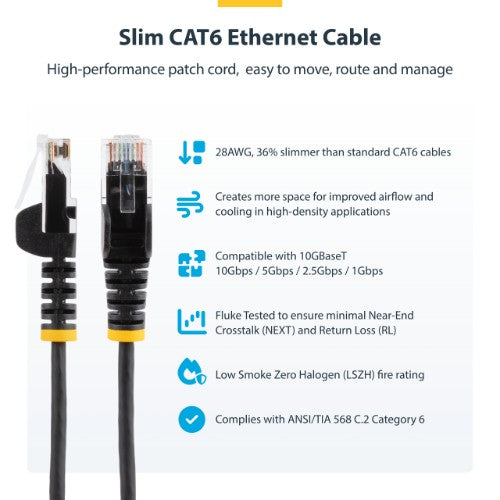

Route Slim Cat6 cables through high density installations for optimal flexibility and airflow
This slim CAT6 cable meets all Category 6 patch cable specifications to deliver a reliable Gigabit and Power over Ethernet (PoE) network connection in high-density network installations.
Improved Airflow

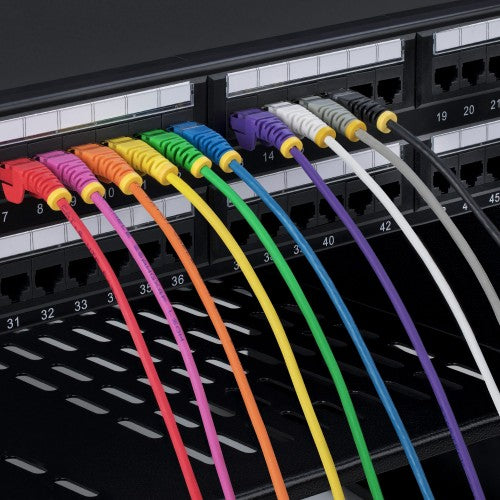

The Slim Cat6 Patch Cord is 36% thinner than standard Cat6 Ethernet cables, enabling greater airflow and heat dissipation in confined spaces. The Slim Cat6 Ethernet cable is also more flexible, for easier cable routing in crowded network racks and patch panels.

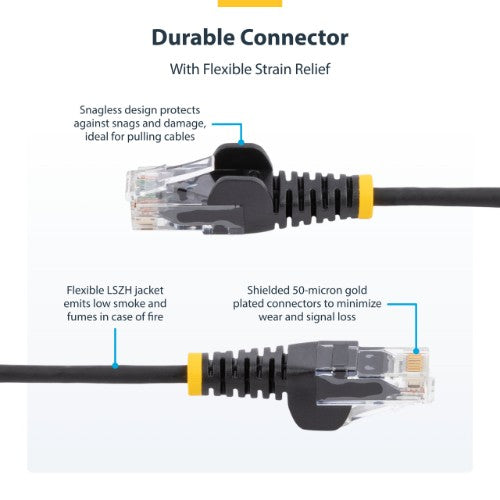

This cable features snagless connectors that protect the RJ45 clips during installation, reducing snags or breakage when routing through narrow gaps or in between devices.
Durable Construction

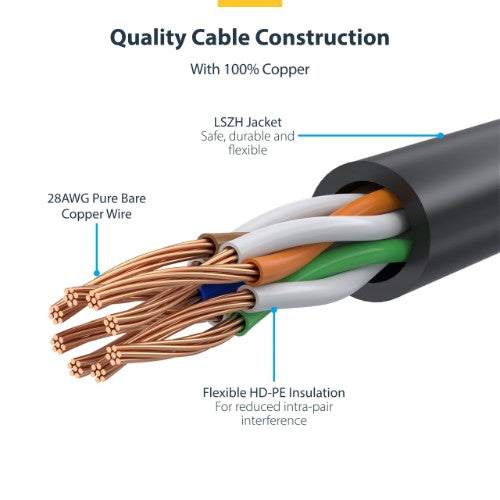

The Slim Cat6 Cable features 50-micron gold RJ45 contacts that ensure a precise fit to minimize wear and signal loss. The 4-pair Unshielded Twisted Pair (UTP) construction utilizes 28AWG Pure Bare Copper Wire for improved conductivity and low resistance. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Tested for Reliability
The Slim CAT6 patch cable is tested to comply with ANSI/TIA 568 C.2 requirements for guaranteed Cat6 performance. The cable is Fluke Tested to ensure minimal Near-End Crosstalk (NEXT) and Retun Loss (RL). Reliably deliver up to 90W of PoE++ to power a remote networking devices, including PoE switches and boardroom cameras. This Slim Cat6 Patch Cable complies with IEEE 802.3bt Type 4 PoE++ specifications.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Product colour |
Red |
| Snagless cable boot |
Yes |
| Conductor material |
Copper |
| Frequency |
250 MHz |
| AWG wire size |
28 |
| Plug and Play |
Yes |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Connector contacts plating |
Gold |
| Cabling technology |
10/100/1000Base-T(X) |
| Data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3bt |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Conductor type |
Stranded |
| Cable length |
23.6" (0.6 m) |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Power over Ethernet (PoE) |
Yes |
| Cable shape |
Round |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Power over Ethernet (PoE) type supported |
PoE++ (4PPoE) |
| Total Power over Ethernet (PoE) budget |
90 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
10 - 60 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
|---|
| Outer diameter |
0.142" (3.6 mm) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
8.66" (220 mm) |
| Package depth |
7.87" (200 mm) |
| Package height |
0.394" (10 mm) |
| Package weight |
1.11 oz (31.4 g) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Product colour |
Red |
| Plug and Play |
Yes |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Connector contacts plating |
Gold |
| Cabling technology |
10/100/1000Base-T(X) |
| Data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3bt |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Conductor type |
Stranded |
| Cable length |
23.6" (0.6 m) |
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
350 pc(s) |
| Master (outer) case width |
16.5" (420 mm) |
| Master (outer) case length |
16.5" (420 mm) |
| Master (outer) case height |
9.84" (250 mm) |
