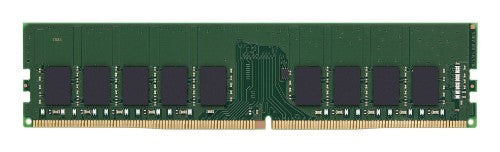

Kingston Technology KSM32ED8/32HD memory module 32 GB 1 x 32 GB DDR4 3200 MT/s ECC

Roll over image to zoom in Click on image to zoom

Kingston Technology KSM32ED8/32HD memory module 32 GB 1 x 32 GB DDR4 3200 MT/s ECC

Name: Kingston Technology KSM32ED8/32HD memory module 32 GB 1 x 32 GB DDR4 3200 MT/s ECC
Brand: Kingston Technology
SKU: KSM32ED8/32HD
Price: 339.3 USD
Availability: OutOfStock

Kingston Technology

Price:

$339.30

Stock:

Sold out

Quantity:

32GB DDR4 3200MT/s ECC Unbuffered DIMM CL22 2Rx8 1.2V 288-pin 16Gbit Hynix D

Key Features

Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Dual-rank
On-board I2 serial presence-detect (SPD) EEPROM
Temperature sensor with integrated SPD
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB: Height 1.23” (31.25mm)
RoHS Compliant and Halogen-Free

Description

Kingston's KSM32ED8/32HD is a 2G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Specifications

Power
Memory voltage	1.2 V
Design
JEDEC standard	Yes
Memory
Buffered memory type	Unregistered (unbuffered)
Memory layout (modules x size)	1 x 32 GB
Internal memory	32 GB
Component for	Server
Memory form factor	288-pin DIMM
CAS latency	22
Memory voltage	1.2 V
Module configuration	2048M x 72
Row cycle time	45.75 ns
Row active time	32 ns
SPD profile	Yes
Memory channels	Dual-channel
Memory ranking	2
ECC	Yes
Internal memory type	DDR4
Programming power voltage (VPP)	2.5 V
Features
Buffered memory type	Unregistered (unbuffered)
Memory layout (modules x size)	1 x 32 GB
Internal memory	32 GB
Component for	Server
Memory form factor	288-pin DIMM
CAS latency	22
Memory voltage	1.2 V
Module configuration	2048M x 72
Row cycle time	45.75 ns
Row active time	32 ns
SPD profile	Yes
Memory channels	Dual-channel
Memory ranking	2
ECC	Yes
Internal memory type	DDR4
Programming power voltage (VPP)	2.5 V
JEDEC standard	Yes
Memory data transfer rate	3200 MT/s
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-55 - 100 °C
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	5.25" (133.3 mm)
Height	1.23" (31.2 mm)
