Description
1/2.8" CMOS, 1920x1080px, 60 fps, 640x480px Thermal, 185W
Ideal for perimeter surveillance and border control, this bispectral camera offers reliable thermal detection and visual identification with 32x integrated optical zoom. It’s available in two versions with either 3x thermal zoom or without thermal zoom capabilities.
Always see what you need to see

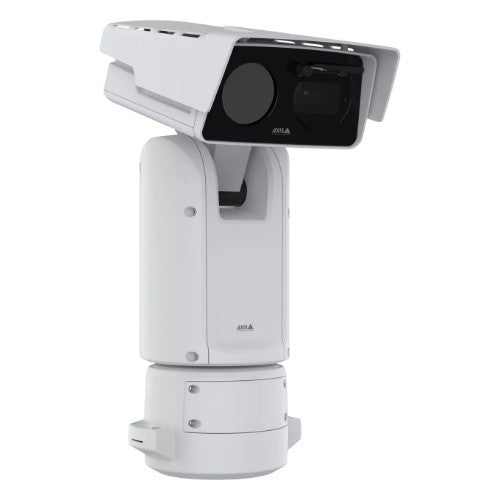

AXIS Q8752-E Mk II gives you two excellent cameras in one: a thermal camera for reliable detection and verification around-the-clock and in all weather and light conditions, and a visual camera for outstanding visual identification purposes. It offers a ground-to-sky view with a tilt range of -90° to +45° and 360° infinite pan for fast camera repositioning and smooth tracking of objects. Thermal palettes help identify different heat sources emitting the same amount of thermal energy, making it easier and more efficient to interpret a scene. Electronic image stabilization (EIS) on both channels ensures smooth video. Furthermore, Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light.
Powerful analytics platform
This top-of-the-line camera contains all the functionality you need to track and identify any type of behavior. It includes AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard for proactive surveillance. Featuring audio and I/O connectivity, you can integrate peripheral equipment, for instance a microphone to extend the value of your system. And edge-to-edge technology lets you connect, for instance, a horn speaker to enable audio alarms that deter, warn, and notify. What’s more, it’s built on a powerful analytics platform, so it’s easy to add Axis as well as custom-made 3rd party analytics.
Robust and secure
This robust camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. With IP66, NEMA TS2, and IK10 ratings, you can be sure that the camera housing is resistant to both harsh weather conditions and vandalism. Plus, it’s possible to connect AXIS Q8752-E Mk II using fiber optic cabling to overcome distance and bandwidth limitations. With thermal, visual, and PTZ capabilities in one camera, it reduces the need for additional cameras to protect your premises.
Key Features
- Thermal and visual camera in one
- 360° infinite pan
- Dual electronic image stabilization
- Built-in cybersecurity
- Thermal palettes
Description
AXIS Q8752-E Mk II Bispectral PTZ CameraIdeal for perimeter surveillance and border control, this bispectral camera offers reliable thermal detection and visual identification with 32x integrated optical zoom. It’s available in two versions with either 3x thermal zoom or without thermal zoom capabilities.
Always see what you need to see
AXIS Q8752-E Mk II gives you two excellent cameras in one: a thermal camera for reliable detection and verification around-the-clock and in all weather and light conditions, and a visual camera for outstanding visual identification purposes. It offers a ground-to-sky view with a tilt range of -90° to +45° and 360° infinite pan for fast camera repositioning and smooth tracking of objects. Thermal palettes help identify different heat sources emitting the same amount of thermal energy, making it easier and more efficient to interpret a scene. Electronic image stabilization (EIS) on both channels ensures smooth video. Furthermore, Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light.
Powerful analytics platform
This top-of-the-line camera contains all the functionality you need to track and identify any type of behavior. It includes AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard for proactive surveillance. Featuring audio and I/O connectivity, you can integrate peripheral equipment, for instance a microphone to extend the value of your system. And edge-to-edge technology lets you connect, for instance, a horn speaker to enable audio alarms that deter, warn, and notify. What’s more, it’s built on a powerful analytics platform, so it’s easy to add Axis as well as custom-made 3rd party analytics.
Robust and secure
This robust camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. With IP66, NEMA TS2, and IK10 ratings, you can be sure that the camera housing is resistant to both harsh weather conditions and vandalism. Plus, it’s possible to connect AXIS Q8752-E Mk II using fiber optic cabling to overcome distance and bandwidth limitations. With thermal, visual, and PTZ capabilities in one camera, it reduces the need for additional cameras to protect your premises.
Specifications
| Performance | |
|---|---|
| Preset points | Yes |
| Infrared (IR) cut-off filter | Yes |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | UL/cUL, CE, KC, VCCI, RCM |
| Thermal sensitivity (NETD) | 50 mK |
| Thermal module | Yes |
| Design | |
| IK code | IK10 |
| Fog proof | Yes |
| Form factor | Box |
| Product colour | Black, White |
| International Protection (IP) code | IP66 |
| Housing material | Aluminum, Glass, Thermoplastic |
| Camera | |
| Minimum illumination | 0.01 lx |
| Tilt angle range | -90 - 45° |
| Tilt speed | 65 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 120 °/sec |
| Camera shutter speed | 1/66500 - 2 s |
| Lens viewing angle, horizontal | 58.5° |
| Lens viewing angle, vertical | 35° |
| Number of Privacy masking areas | 32 |
| Vertical field of view (thermal module) | 13.5° |
| Horizontal field of view (thermal module) | 18° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 1/2.8" |
| Effective sensor resolution (thermal module) | 640 x 480 pixels |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 4 |
| Auto focus | Yes |
| Closest focusing distance | 275.6" (7 m) |
| Minimum aperture number | 1.4 |
| Zoom capability | Yes |
| Optical zoom | 32x |
| Digital zoom | 12x |
| Focal length range | 4.3 - 137.6 mm |
| Aperture number (thermal module) | 1.6 |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Audio | |
| Audio system | 1-way |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio detection | Yes |
| Sample rates | 8 - 48 kHz |
| Network | |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1AE, IEEE 802.1x |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/ DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 2000 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Terminal block port | Yes |
| Microphone in | Yes |
| Connectivity technology | Wired |
| Memory | |
| Internal memory | 2000 MB |
| Flash memory | 512 MB |
| Technical details | |
| Type | IP security camera |
| Form factor | Box |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Product colour | Black, White |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Progressive scan | Yes |
| Doesn't contain | PVC |
| Compliance certificates | REACH, RoHS, Trade Agreements Act (TAA) |
| Security | |
| Privacy protection | Yes |
| Video motion detection | Yes |
| Pixel counter | Yes |
| Material | |
| Housing material | Aluminum, Glass, Thermoplastic |
| Power | |
| Power source type | DC |
| Power consumption (max) | 185 W |
| Power consumption (typical) | 25 W |
| Certificates | |
| International Protection (IP) code | IP66 |
| Certification | UL/cUL, CE, KC, VCCI, RCM |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 9.02" (229 mm) |
| Depth | 14.2" (360 mm) |
| Height | 22.9" (581 mm) |
| Weight | 33.7 lbs (15.3 kg) |
| Sustainability | |
| Compliance certificates | REACH, RoHS, Trade Agreements Act (TAA) |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Wiper included | Yes |
| Other features | |
| Doesn't contain | PVC |
