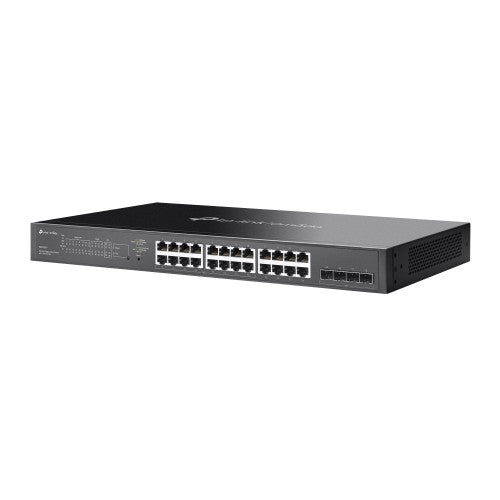

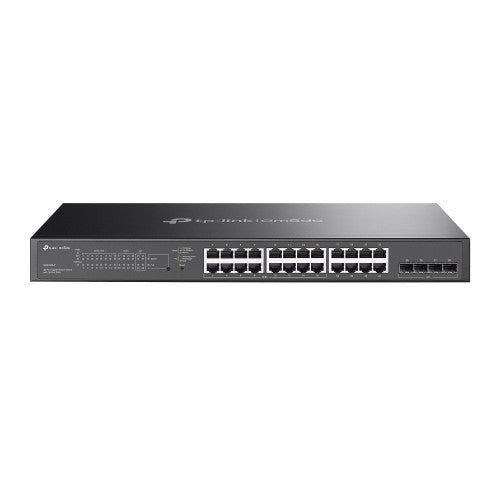

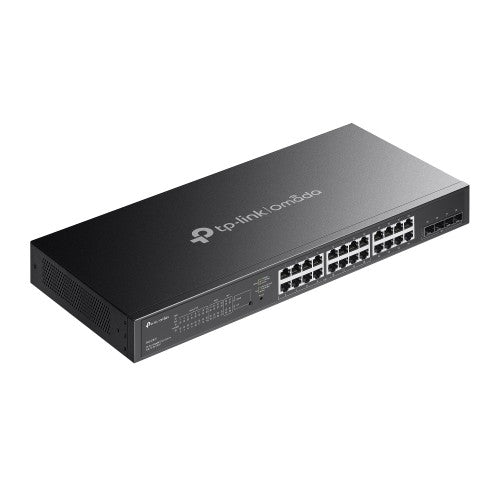

16× 10/100/1000 Mbps PoE+ RJ45, 8× 10/100/1000 Mbps RJ45, 4× Gigabit SFP Slots, 56 Gbps, 41.66 Mpps, 440 x 220 x 44 mm
Key Features
- 16× Gigabit 802.3af/at PoE+ ports
- 8× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
- 150 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for quiet operation

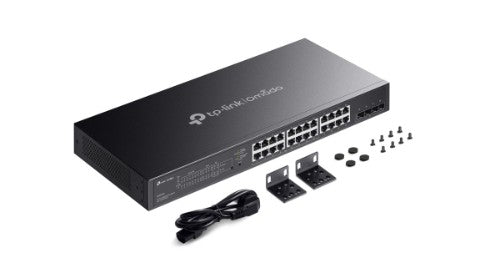

- Durable metal casing and rackmountable design
Description
- 24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
- 150 W Total PoE Budget
- Fanless Design for Silent Operation
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Traffic Separation
Software Defined Networking (SDN) with Cloud AccessRemotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Multiple Application ScenariosSurveillanceWorks with IP Cameras
Conference CallWorks with IP Phones
Wi-Fi CoverageWorks with Access Points
Wired ConnectionsWorks with Non-PoE Devices such as PCs and Printers
Specifications
| Management features |
|---|
| ARP inspection |
Yes |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Switch layer |
L2/L2+ |
| Cloud-managed |
Yes |
| Ports & interfaces |
|---|
| SFP module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Number of VLANs |
4000 |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| Virtual LAN features |
MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| Jumbo frames |
9000 |
| Packet buffer memory |
4.1 MB |
| MAC address table |
8000 entries |
| Switching capacity |
56 Gbit/s |
| Jumbo frames support |
Yes |
| Forwarding rate |
41.66 Mpps |
| Number of VLANs |
4000 |
| Security |
|---|
| MAC address filtering |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Password protection |
Yes |
| DHCP features |
DHCP relay, DHCP server |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Product colour |
Gray |
| LED indicators |
Yes |
| Rack mounting |
Yes |
| Performance |
|---|
| Fanless |
Yes |
| Packet buffer memory |
4.1 MB |
| Auto-negotiation |
Yes |
| Power |
|---|
| Power consumption (max) |
184.7 W |

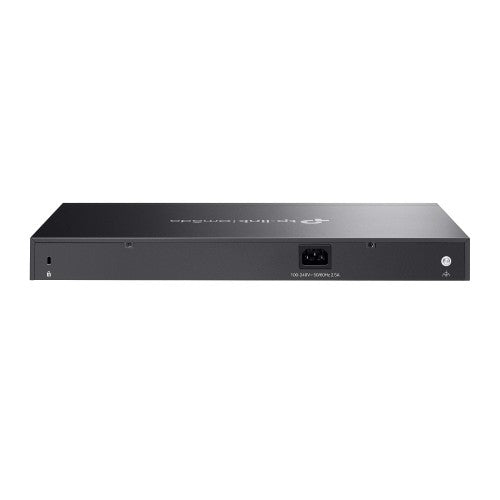

| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power source |
AC/PoE |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Total Power over Ethernet (PoE) budget |
150 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Heat dissipation |
628 BTU/h |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
4000 |
| Virtual LAN features |
MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Weight & dimensions |
|---|
| Width |
17.3" (440 mm) |
| Depth |
8.66" (220 mm) |
| Height |
1.73" (44 mm) |
| Technical details |
|---|
| Product colour |
Gray |
| Rack mounting |
Yes |
| Memory |
|---|
| Packet buffer memory |
4.1 MB |
| Indication |
|---|
| LED indicators |
Yes |
