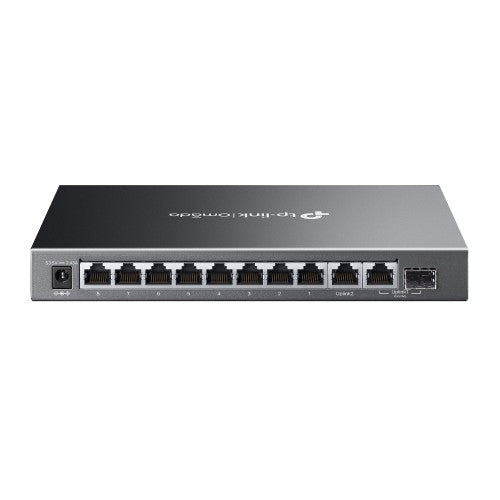

8× 10/100/1000 Mbps PoE+ RJ45, 1× 10/100/1000 Mbps RJ45, 1× Gigabit SFP/RJ45 Combo, 20 Gbps, 8K MAC, 15 KB Jumbo, 209×126×26 mm
Key Features
- 8× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
- 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
- 123W Power Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

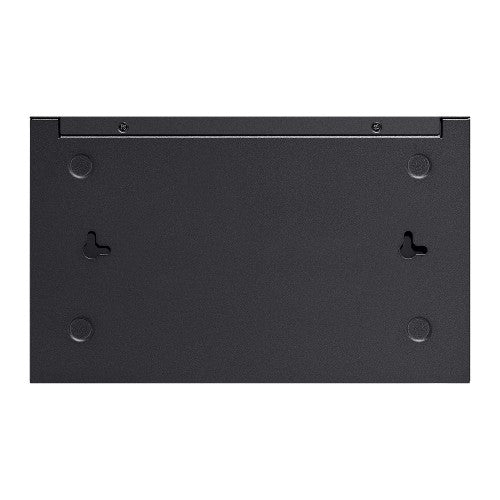

- Durable metal casing and desktop/wall mounting design
Description

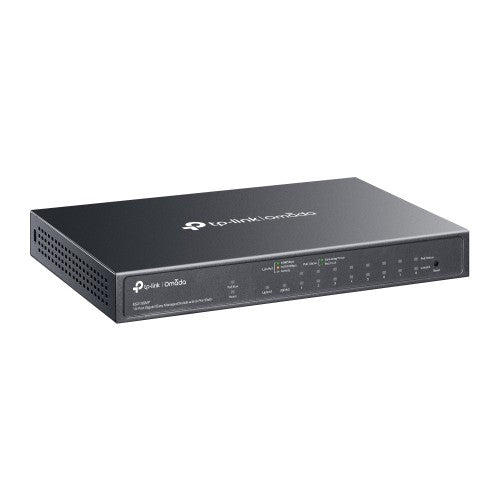

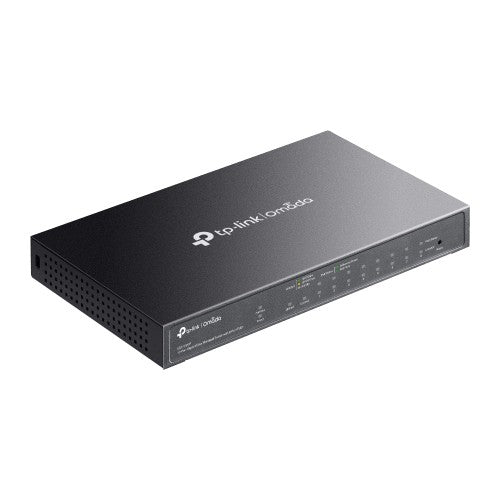

Omada 10-Port Gigabit Easy Managed
Switch with 8-Port PoE+Omada Cloud Essentials - A Free and Easy Cloud-Based Network MnagementOmada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system§, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
- Lifetime Free Cloud without Any Additional Fees
- Exists Entirely in the Cloud. No Hardware or Software Controller Needed
- Cloud Centralized Management for Multiple Sites
- Access Anytime via Omada App or Web
- Easy Setup, Use, and Maintenance
- Unlimited Management Scale
- Zero-Touch Provisioning (ZTP) without Unboxing
- Upgrade to Standard with a Seamless Subscription
Specifications
| Management features |
|---|
| Reset button |
Yes |
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| Cloud-managed |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
10 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity |
1 |
| Network |
|---|
| Networking standards |
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| VLAN support |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| Virtual LAN features |
MTU VLAN, Port-based VLAN, Tagged VLAN |
| IGMP snooping |
Yes |
| Optical fiber |
|---|
| Transmission distance (max) |
0.25 km |
| Data transmission |
|---|
| Jumbo frames |
15 |
| Packet buffer memory |
4 MB |
| MAC address table |
8000 entries |
| Switching capacity |
20 Gbit/s |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Forwarding rate |
14.88 Mpps |
| Security |
|---|
| IGMP snooping |
Yes |
| DHCP features |
DHCP client |
| Design |
|---|
| Wall mountable |
Yes |
| Reset button |
Yes |
| Product colour |
Black |
| Performance |
|---|
| Fanless |
Yes |
| Packet buffer memory |
4 MB |
| Auto-negotiation |
Yes |
| Power |
|---|
| Power supply included |
Yes |
| Input current |
2.43 A |
| DC input voltage |
53.5 V |
| Power source |
DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Total Power over Ethernet (PoE) budget |
123 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Virtual LAN features |
MTU VLAN, Port-based VLAN, Tagged VLAN |
| Weight & dimensions |
|---|
| Width |
8.23" (209 mm) |
| Depth |
4.96" (126 mm) |
| Height |
1.02" (26 mm) |
| Packaging content |
|---|
| User guide |
Yes |
| Cables included |
AC |
| Packaging data |
|---|
| Package type |
Box |
| User guide |
Yes |
| Cables included |
AC |
| Technical details |
|---|
| Product colour |
Black |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Memory |
|---|
| Packet buffer memory |
4 MB |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
