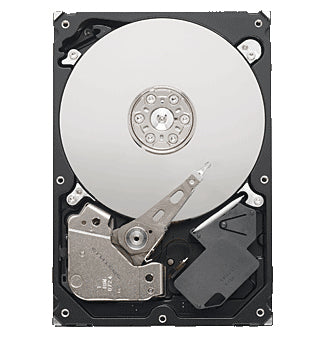

Seagate Pipeline HD internal hard drive 1 TB 5900 RPM 64 MB Serial ATA II

Pipeline HD, 5900RPM, 64M, 1TB

Description

Always on. Always reliable.
Media technology demands both reliability and energy efficiency. Pipeline HD® hard drives deliver with the industry’s lowest overall power consumption profile, coolest operating temperatures, and a best–in–industry AFR.

Low-power profiles help DVR manufacturers achieve reduced overall power requirements and support Energy Star compliance.

Delivers 24/7 reliability.
With an AFR of 0.55%, Pipeline HD® hard drives feature industry–leading reliability for devices like DVRs and home theater systems.

And the Pipeline HD drive can take the heat in the most demanding 24×7 devices. This hard drive improves system reliability with a capability of operating at temperatures of up to 75º C.

Key to the Pipeline HD drive’s remarkable reliability is the reduced heat output enabled by its low-power consumption. Pipeline HD hard drives feature:

The industry’s lowest overall power consumption profile
40% less heat production than comparable drives during the same duty cycle

Performance and low-power consumption.
Pipeline HD hard drives meet a rising demand for energy-conserving consumer electronics without compromising performance.

And Seagate is committed to environmental stewardship that goes beyond reduced power consumption. In fact, Pipeline HD drives support a comprehensive sustainability value proposition.

Seagate and sustainability.
Every Pipeline HD hard drive incorporates a proactive approach to sustainability and environmental stewardship.

50% of the materials used in the manufacture of the Pipeline HD hard drive come from recycled sources
70% of the drive’s materials are recyclable
Meets all RoHS and new REACH standards
Low halogen use

Perfect when you need to:
Build digital video recorders, home theater PCs, karaoke and audio jukeboxes
Increase the storage capacity of DVR and media center applications
Enhance performance and storage in cable, satellite and IPTV set–top boxes

Specifications

Hard drive
Data transfer rate	3 Gbit/s
Write seek time	9 ms
Read seek time	8.5 ms
Average latency	5.1 ms
HDD speed	5900 RPM
HDD capacity	1 TB
Data transmission
Sustained data rate	268.4 MB/s
Features
Interface	Serial ATA II
Write seek time	9 ms
Read seek time	8.5 ms
Average latency	5.1 ms
HDD speed	5900 RPM
HDD capacity	1 TB
Storage drive buffer size	64 MB
Power
Power consumption (typical)	0.145 W
Power consumption (idle)	0.145 W
Start-up current	2 A
Operational conditions
Operating temperature (T-T)	0 - 75 °C
Storage temperature (T-T)	-40 - 70 °C
Operating shock	80 G
Non-operating shock	350 G
Technical details
Interface	Serial ATA II
Track density	625Gb/in2
Internal	Yes
Weight & dimensions
Width	4" (101.6 mm)
Weight	14.6 oz (415 g)
Height	0.795" (20.2 mm)
Depth	5.79" (147 mm)
Other features
Interface	Serial ATA II
Track density	625Gb/in2
Internal	Yes
Data transfer rate	3 Gbit/s
Sustained data rate	268.4 MB/s
