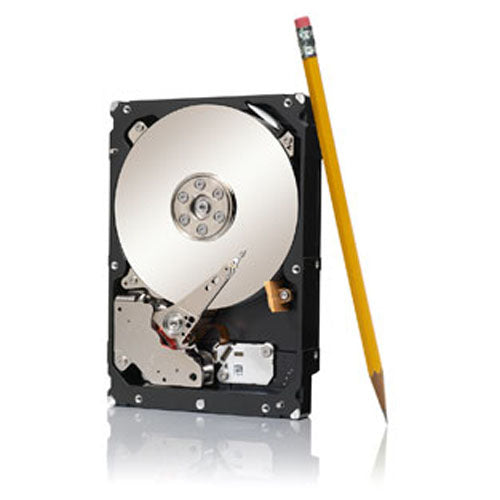

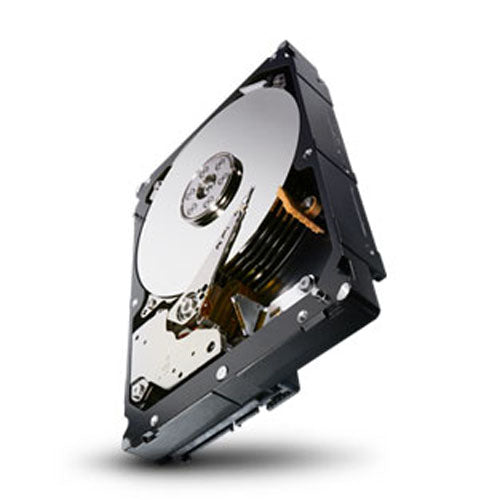

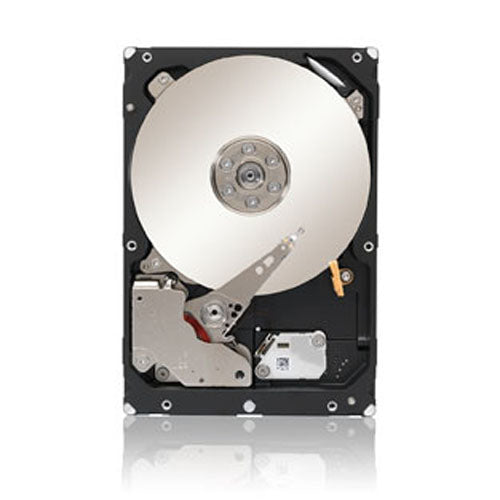

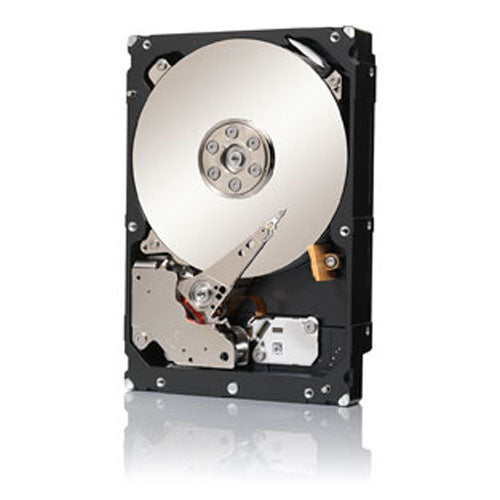

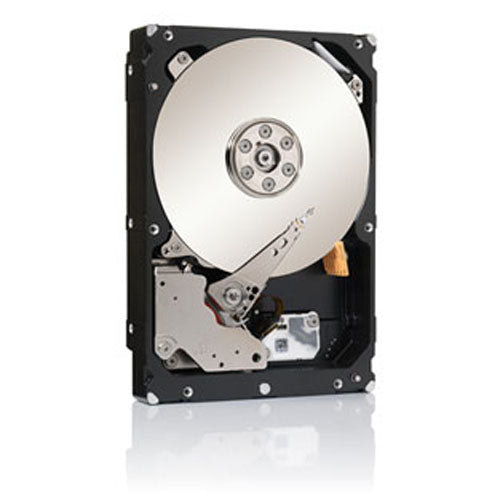

Constellation® ES.3 1TB, 7200rpm, 128MB, SAS 6Gb/s
Description
The Seagate® Constellation® ES.3 enterprise HDD delivers the scalability that data centres need to meet their demanding growth of unstructured data reliably.
- Highest-capacity enterprise drive, up to 4TB for maximum density server and storage solutions
- Perfect for reliable, 24×7 bulk data storage
- Predictable 7,200-rpm performance even in the most rugged multi-drive SAS or SATA environments
- Best-in-class energy efficiency with low power and cooling requirements
Specifications
| Hard drive |
|---|
| Data transfer rate |
6 Gbit/s |
| Component for |
Server/workstation |
| Average latency |
4.16 ms |
| Bytes per sector |
512 |
| Mean time between failures (MTBF) |
1400000 h |
| HDD speed |
7200 RPM |
| HDD size |
3.5" |
| HDD capacity |
1 TB |
| Features |
|---|
| Component for |
Server/workstation |
| Interface |
SAS |
| Average latency |
4.16 ms |
| Bytes per sector |
512 |
| Mean time between failures (MTBF) |
1400000 h |
| HDD speed |
7200 RPM |
| HDD size |
3.5" |
| HDD capacity |
1 TB |
| Storage drive buffer size |
128 MB |
| Power |
|---|
| Power consumption (typical) |
8.93 W |
| Power consumption (idle) |
4.84 W |
| Operating voltage |
5 / 12 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 60 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating shock |
70 G |
| Non-operating vibration |
0.25 G |
| Non-operating shock |
300 G |
| Technical details |
|---|
| Interface |
SAS |
| Power requirements |
+12V & +5V |
| Mean time between failures (MTBF) |
1400000 h |
| Internal |
Yes |
| Weight & dimensions |
|---|
| Width |
4.01" (101.8 mm) |
| Weight |
21.3 oz (605 g) |
| Height |
1.03" (26.1 mm) |
| Depth |
5.79" (147 mm) |
| Other features |
|---|
| Interface |
SAS |
| Power requirements |
+12V & +5V |
| Internal |
Yes |
| Data transfer rate |
6 Gbit/s |
