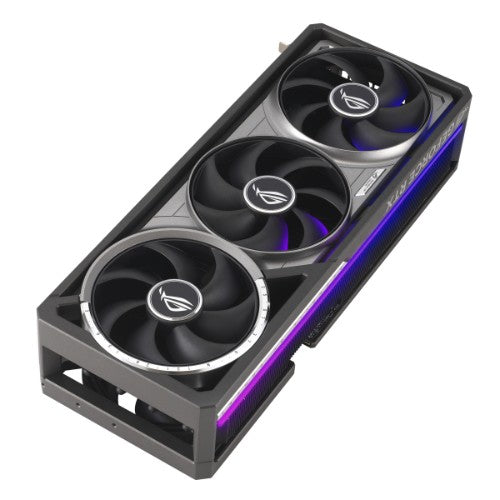

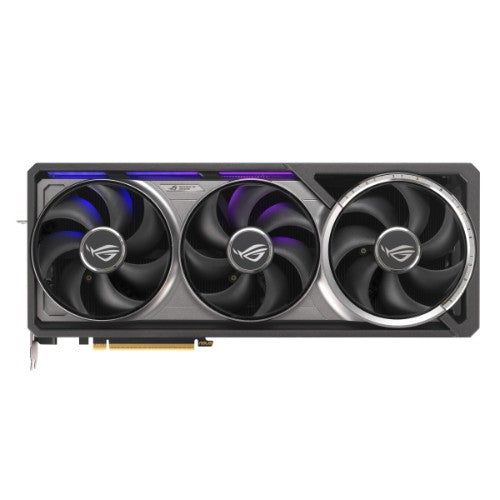

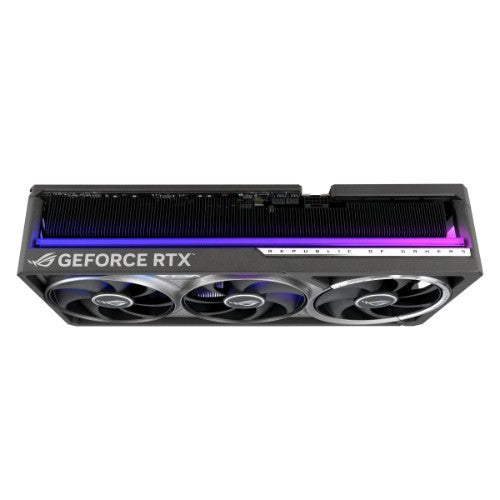

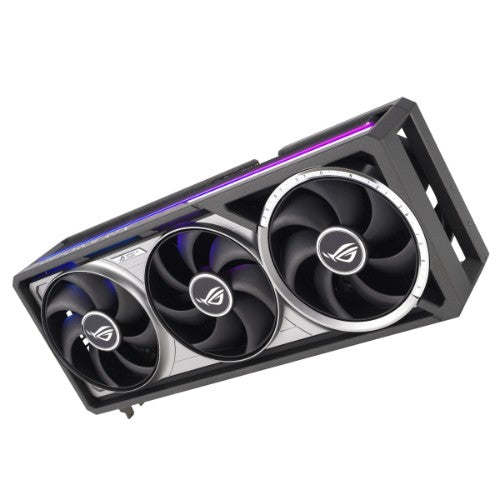

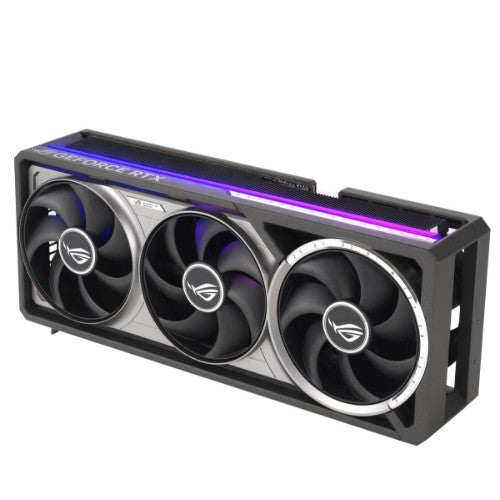

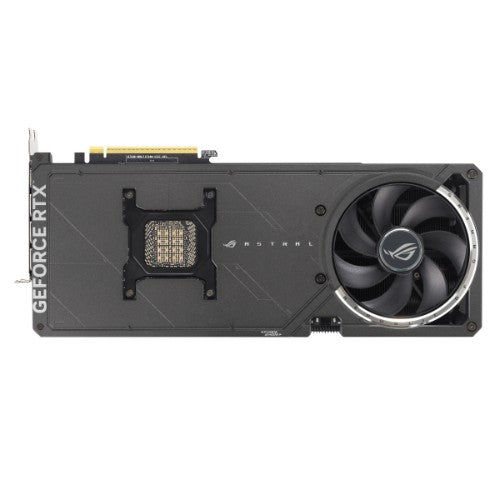

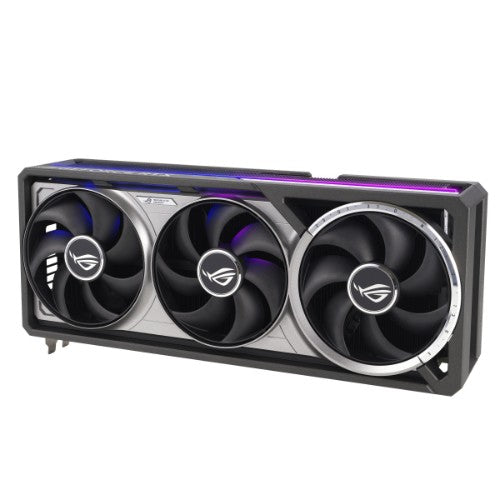

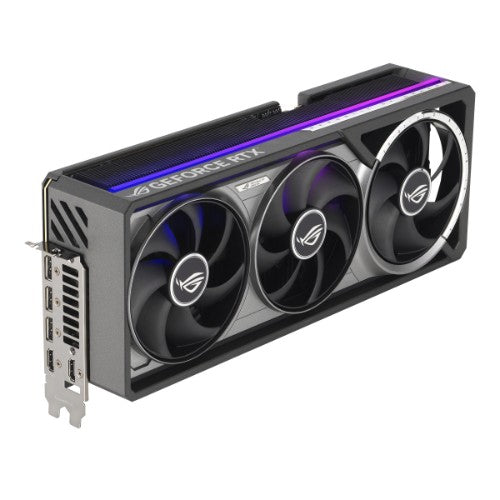

ROG Astral GeForce RTX 5090 32GB GDDR7 gaming graphics card (Nvidia GeForce RTX5090, four fans, 3.8-slot design, PCIe 5.0, 2x HDMI 2.1b, 3x DisplayPort 2.1a, ROG-ASTRAL-RTX5090-32G-GAMING)
Description
The Final FrontierThe new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5090 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.
Engineered for ExcellenceDriven by a passion for innovation and the pursuit of precision, we crafted the ROG Astral. Inspired by the universe’s wonders, it blends art and technology, achieving stellar cooling and unmated performance.
Cooling Expertise
Quad-Fan ForceA revolutionary four-fan design creates a powerful vertical airflow channel that boosts air pressure by up to 20%. This results in premium thermal performance that dramatically lowers GPU temperatures and minimizes hotspots, enabling unprecedented clock speeds.
Optimized Fin SpacingThe addition of a fourth fan permits more densely packed heatsink fins, increasing cooling potential.
Patented Vapor ChamberA patented vapor chamber designed with milled pathways allows heatpipes to sink in without flattening, boosting heat dissipation efficiency. This innovative combo maximizes contact surface and improves thermal performance by over 10%.
MaxContact DesignMaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.
Phase-Change GPU Thermal PadBy melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Unmatched Reliability
Premium Power DeliveryPowerful 80-amp MOSFETs deliver over 35% more headroom than the standard design. This helps ensure enhanced performance, stability and higher overclocking potential.
ASUS GPU Guard & BracketTo handle larger graphics processors, ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.
Protective PCB CoatingA protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
Auto−Extreme TechnologyAn automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
Ultra Rigid Metal CaseA high-quality diecast frame, shroud, and backplate tightly brace the PCB for rigidity, and a 304 stainless steel I/O bracket plus bundled graphics card holder ensures stable mounting.
Game FriendlyGPU Tweak III: Effortless GPU Monitoring and Tuning
FanConnect IITwo PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly synced with the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.
Dual BIOSDo you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at medium temperatures.
Perfect PSU for the GeForce RTX 50 SeriesPatented “GPU-First” Intelligent Voltage Stabilizer
Pair with the ROG Thor III and ROG Strix Platinum Series PSU and enjoy reliable power for your graphics card. GPU-First enhances voltage stability by up to 45%, even during demanding gaming sessions and overclocking scenarios, helping to ensure peak performance for a more consistent gaming experience. Additionally, the integration of a GaN MOSFET boosts power efficiency by up to 30%.
Specifications
| Processor |
|---|
| Graphics processor family |
NVIDIA |
| Processor boost clock speed |
2437 MHz |
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| CUDA cores |
21760 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 5090 |
| Memory |
|---|
| Discrete graphics card memory |
32 GB |
| Memory bandwidth (max) |
28 GB/s |
| Memory bus |
512 bit |
| Graphics card memory type |
GDDR7 |
| Ports & interfaces |
|---|
| HDMI version |
2.1b |
| Mini HDMI ports quantity |
0 |
| Mini DisplayPorts quantity |
0 |
| HDMI ports quantity |
2 |
| DisplayPort version |
2.1b |
| DisplayPorts quantity |
3 |
| DVI-I ports quantity |
0 |
| DVI-D ports quantity |
0 |
| Interface type |
PCI Express 5.0 |
| Thunderbolt 3 ports quantity |
0 |
| Video |
|---|
| OpenGL version |
4.6 |
| HDMI version |
2.1b |
| HDCP |
Yes |
| Dual Link DVI |
No |
| CUDA cores |
21760 |
| Performance |
|---|
| Virtual Reality (VR) ready |
Yes |
| OpenGL version |
4.6 |
| HDCP |
Yes |
| Dual Link DVI |
No |
| TV tuner integrated |
No |
| HDCP version |
2.3 |
| Design |
|---|
| Number of fans |
4 fan(s) |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Cooling type |
Active |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Product colour |
Gray |
| Number of slots |
3.8 |
| Cooling technology |
ASUS Axial-tech |
| Power |
|---|
| Supplementary power connectors |
1x 16-pin |
| Minimum system power supply |
1000 W |
| Weight & dimensions |
|---|
| Number of slots |
3.8 |
| Weight |
6.64 lbs (3.01 kg) |
| Height |
5.88" (149.3 mm) |
| Depth |
2.99" (76 mm) |
| Length |
14.1" (357.6 mm) |
| Technical details |
|---|
| Cooling type |
Active |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Product colour |
Gray |
| TV tuner integrated |
No |
| System requirements |
|---|
| Minimum system power supply |
1000 W |
| Packaging data |
|---|
| Package type |
Box |
| Package width |
16.5" (420 mm) |
| Package height |
4.96" (126 mm) |
| Package depth |
8.9" (226 mm) |
| Package weight |
9.81 lbs (4.45 kg) |
