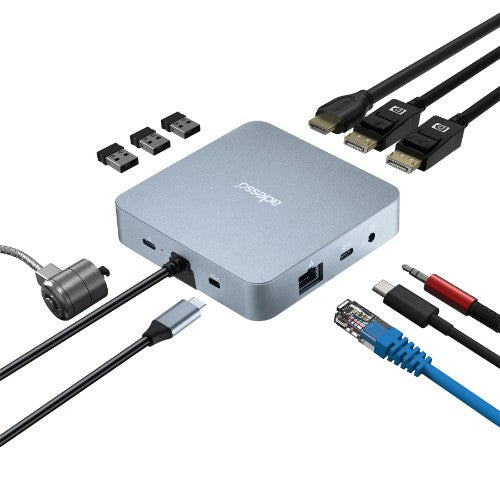

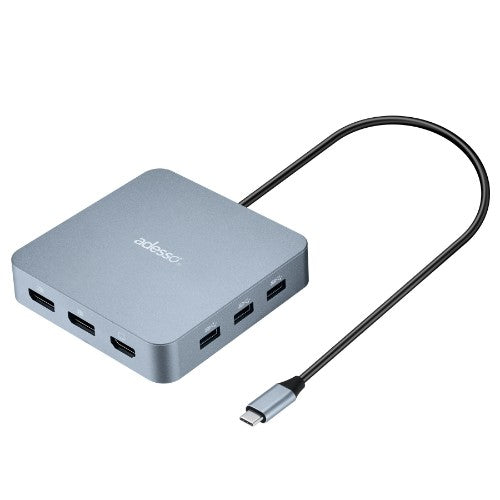

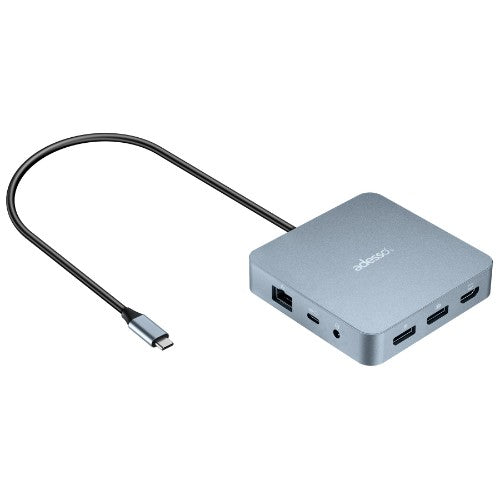

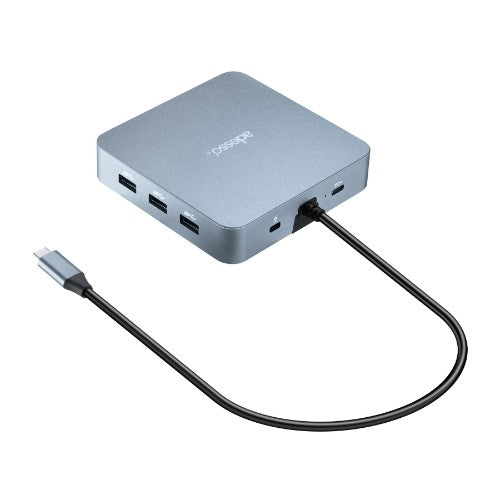

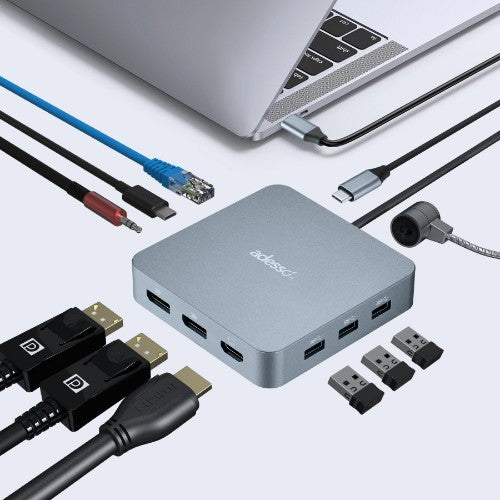

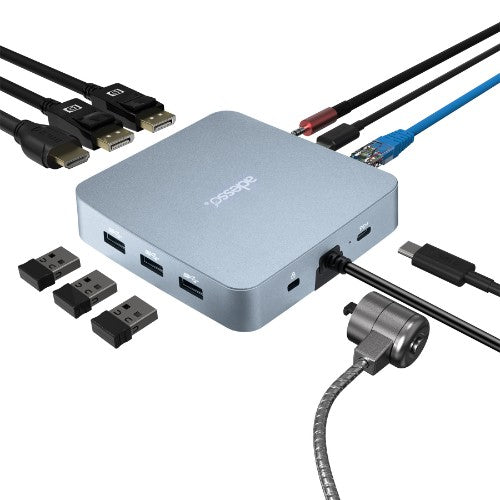

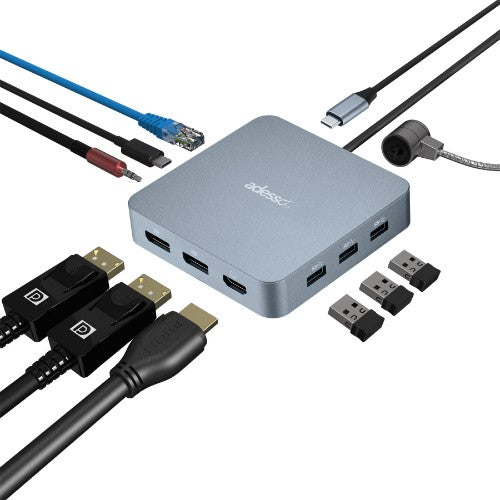

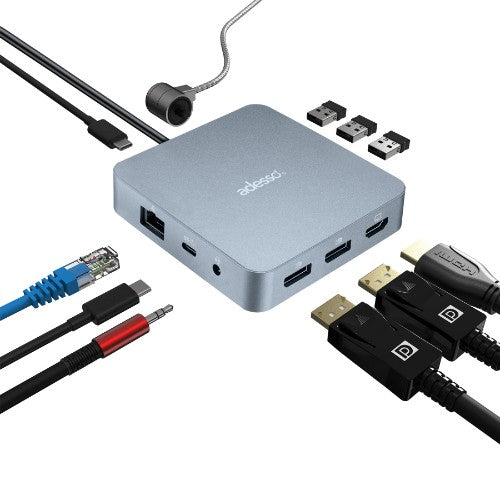

Adesso AUH-4051-TAA laptop dock/port replicator Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Gray

1-IN-1 USB-C Multiport Docking Station Supports Dual Display, HDMI Port, USB 3.2, PD, RJ45, 3.5mm Jack, Peripheral Lock Port (TAA Compliant)

Description

Expand your laptop’s connection port with this USB Type-C multiport docking station. It has 3x USB-A 3.2 (10 Gbps), 1x USB-C 3.2 (10 Gbps), 1x PD (up to 100W), 2x DP (Single Output: 8k/30Hz, Dual Output:
4K/60Hz),1x HDMI (4K/60Hz), 1x RJ45 (10/100/1000 Mbps).1x 3.5MM Jack. and 1x Peripheral Lock Port (3×7 mm).

Fast and Stable Internet Connection
Equipped with an RJ-45 port, you can seamlessly connect your laptop to become hard wired for a fast and stable connection to your internet up to 1000Mbps.

Multiple Displays
Extend your devices display by up to three monitors via two
4K/60Hz Display ports and one 4K/60Hz HDMI port, creating the perfect work environment. (Using all three simultaneously only supports 4K/30Hz)

Up To 10Gbps Transfer Speeds
Transfer files at fast speeds and stable connection via the USB 3.2 Gen 2 Type-C port, Also includes 4 USB 3.2 ports for a maximum of 10 Gbps transfer speed.

Docking Station Lock
The docking station lock Feature on the AUH-4051 provides enhanced security by locking the device in place, This prevents unauthorized removal or tampering, ensuring the safety of critical peripherals in shared or high-traffic environments.

Mac Address Pass Through
It supports the “MAC address pass-through” feature. This feature allows the MAC address of the native Ethernet network device on the system to be used for imaging, systems management, etc. To use the “MAC address pass through” feature, the setting must be enabled in the BIOS. The setting is located in BIOS -> Config -> Network

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	2
Headphone outputs	1
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
USB 2.0 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Product colour	Gray
Card reader integrated	No
Cable lock slot	Yes
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum refresh rate	60 Hz
Technical details
Product colour	Gray
Cable lock slot	Yes
Data transfer rate	10 Gbit/s
Storage
Card reader integrated	No
Power
Power source type	USB
Power consumption (max)	65 W
Output voltage	5 - 20 V
Output current	5 A
Power connector	USB Type-C
USB cable length	19.7" (0.5 m)
Software
Windows operating systems supported	Yes
Weight & dimensions
Width	2.66" (67.5 mm)
Depth	2.01" (51 mm)
Height	0.63" (16 mm)
Package weight	19.2 oz (544 g)
Package width	6.1" (155 mm)
Package depth	5.98" (152 mm)
Package height	2.99" (76 mm)
Design
Windows operating systems supported	Yes
Product colour	Gray
Cable lock slot	Yes
Packaging data
Quantity per pack	1 pc(s)
Package weight	19.2 oz (544 g)
Package width	6.1" (155 mm)
Package depth	5.98" (152 mm)
Package height	2.99" (76 mm)
Packaging content
Quick start guide	Yes
AC adapter included	Yes
Quantity per pack	1 pc(s)
