| Internal I/O |
|---|
| Number of M.2 (M) slots |
5 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Total number of SATA connectors |
4 |
| 12V power connector |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| mSATA ports quantity |
0 |
| TPM connector |
Yes |
| Number of SATA connectors |
0 |
| Number of SATA III connectors |
4 |
| Number of SATA II connectors |
0 |
| EPS power connector (8-pin) |
Yes |
| ATX Power connector (24-pin) |
Yes |
| RGB LED pin header |
Yes |
| USB 3.2 Gen 2x2 connectors |
1 |
| Number of EPS power connectors (8-pin) |
2 |
| Technical details |
|---|
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel Z890 |
| Supported processor sockets |
LGA 1851 |
| PC health monitoring |
Fan, Temperature, Voltage |
| On-board graphics card |
No |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Total number of SATA connectors |
4 |
| Maximum internal memory supported by processor |
256 GB |
| Warranty period |
3 year(s) |
| Audio |
|---|
| Audio output channels |
7.1 channels |
| Performance |
|---|
| Number of HDDs supported |
9 |
| Supported storage drive types |
HDD & SSD |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel Z890 |
| RAID levels |
0, 1, 5, 10 |
| Windows operating systems supported |
Windows 11 x64 |
| Supported processor sockets |
LGA 1851 |
| PC health monitoring |
Fan, Temperature, Voltage |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Processor |
|---|
| Processor manufacturer |
Intel |
| Maximum internal memory supported by processor |
256 GB |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| Supported processor sockets |
LGA 1851 |
| Processor socket |
LGA 1851 (Socket V1) |
| Memory |
|---|
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Supported memory types |
DDR5-SDRAM |
| Memory channels |
Dual-channel |
| Supported memory clock speeds |
5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,9500 MHz |
| Supported memory module capacities |
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB |
| Maximum internal memory |
256 GB |
| Supported memory clock speed (max) |
9500 MHz |
| ECC сompatibility |
Non-ECC |
| Storage controllers |
|---|
| Number of HDDs supported |
9 |
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| RAID levels |
0, 1, 5, 10 |
| Number of storage drives supported |
4 |
| RAID support |
Yes |
| Graphics |
|---|
| On-board graphics card |
No |
| DirectX version |
12.0 |

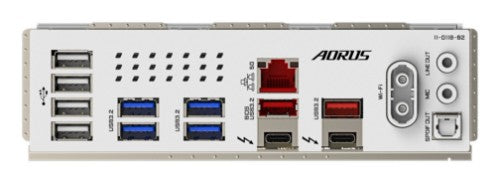

| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 2.0 ports quantity |
4 |
| VGA (D-Sub) ports quantity |
0 |
| Thunderbolt ports quantity |
2 |
| S/PDIF out port |
Yes |
| Microphone in |
Yes |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DVI-D ports quantity |
0 |
| DisplayPorts quantity |
2 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Ethernet interface type |
5 Gigabit Ethernet |
| Bluetooth |
Yes |
| Bluetooth version |
5.4 |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| WLAN controller model |
Intel Wi-Fi 7 BE200 |
| Features |
|---|
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel Z890 |
| Windows operating systems supported |
Windows 11 x64 |
| Supported processor sockets |
LGA 1851 |
| PC health monitoring |
Fan, Temperature, Voltage |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Audio chip |
Realtek ALC1220 |
| Product colour |
White |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
5 |
| PCI Express x16 (Gen 4.x) slots |
2 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| BIOS |
|---|
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Yes |
| BIOS memory size |
256 Mbit |
| ACPI version |
5.0 |
| Clear CMOS button |
Yes |
| System Management BIOS (SMBIOS) version |
2.7 |
| Desktop Management Interface (DMI) version |
2.7 |
| Video |
|---|
| DirectX version |
12.0 |
| Packaging data |
|---|
| Package width |
13.2" (335 mm) |
| Package depth |
10.6" (270 mm) |
| Package height |
3.15" (80 mm) |
| Package weight |
5.62 lbs (2.55 kg) |
| Software |
|---|
| Windows operating systems supported |
Windows 11 x64 |
| Bundled software |
Norton® Internet Security (OEM version)
LAN bandwidth management software |
| Battery |
|---|
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight |
0.106 oz (3 g) |
| Number of battery cells |
1 |
| Lithium weight per battery |
0.00247 oz (0.0700 g) |
| Battery type |
CR2032 |
| Logistics data |
|---|
| Products per shipping (inner) case |
1 pc(s) |
| Country of origin |
China |
| Weight & dimensions |
|---|
| Height |
1.38" (35 mm) |
| Package width |
13.2" (335 mm) |
| Package depth |
10.6" (270 mm) |
| Package height |
3.15" (80 mm) |
| Package weight |
5.62 lbs (2.55 kg) |
| Weight |
5 lbs (2.27 kg) |
| Width |
12" (305 mm) |
| Depth |
9.61" (244 mm) |
| Packaging content |
|---|
| Bundled software |
Norton® Internet Security (OEM version)
LAN bandwidth management software |
| Batteries included |
Yes |
| Other features |
|---|
| Height |
1.38" (35 mm) |
| Package width |
13.2" (335 mm) |
| Package depth |
10.6" (270 mm) |
| Package height |
3.15" (80 mm) |
| Package weight |
5.62 lbs (2.55 kg) |
| mSATA ports quantity |
0 |
| Weight |
5 lbs (2.27 kg) |
