1-Port HDMI over Cat6 Receiver - 4K 60 Hz, HDR, 4:4:4, PoC, HDCP 2.2, 230 ft. (70.1 m), TAA
Key Features
- Supports 4K @ 60 Hz video resolutions (4:4:4) as specified in HDMI 2.0
- Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
- Combines with optional B127A-010-H repeater to extend signal to 400 ft.
- Power over Cable (PoC) technology provides power to the receiver via Cat6 cable
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Description
HDMI Extender Receiver Ideal for Digital Signage in Schools and WorkplacesThis 4K receiver is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.
Extends a 4K A/V Transmission up to 230 ft....or Even FartherThe B127A-1A0-BH connects to a B127A-Series transmitter, switch or splitter to extend 4K signals from an HDMI source to an HDMI display up to 230 feet (70.1 meters) away via user-supplied Cat6 cabling. By adding a B127A-010-H signal repeater (sold separately) to the application, you can extend the signal up to 400 feet (121.9 meters).
Supports Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 ColorThe B127A-1A0-BH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with 7.1-channel surround sound audio via TOSLINK. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This receiver also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.
Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power BricksPower over Cable (PoC) technology powers the B127A-1A0-BH over Cat6 cable. LEDs indicate when the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver where needed without worrying about finding a nearby AC outlet.

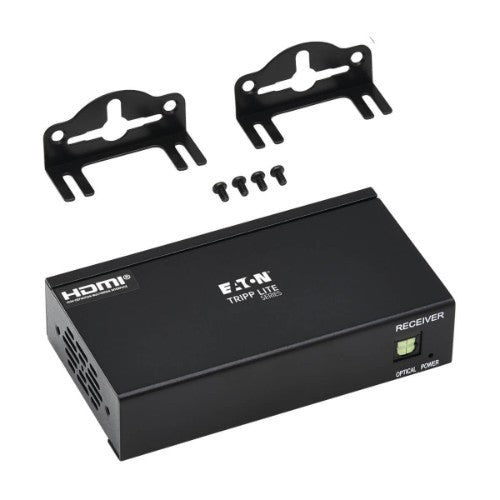

Plug-and-Play Operation for Quick Setup and Immediate UseThe receiver works right out of the package with no software required. Mounting hardware is included for installing it on a wall, pole or 19-inch rack. Connect the receiver to a transmitter, switch or splitter with user-supplied Cat6 cable (such as N202-Series). Connect to a 4K display with a user-supplied HDMI cable (such as P568- or P569-Series).
TAA-Compliant for GSA Schedule PurchasesThe B127A-1A0-BH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Specifications
| Features |
|---|
| Material |
Metal |
| HDCP |
Yes |
| Colour depth |
36 bit |
| Audio output channels |
7.1 channels |
| Rack mounting |
Yes |
| Consumer Electronics Control (CEC) support |
Yes |
| 3D |
Yes |
| Type |
AV receiver |
| Maximum resolution |
3840 x 2160 pixels |
| Cable types supported |
Cat5, Cat5e, Cat6, HDMI |
| Maximum transfer distance |
2759.8" (70.1 m) |
| Audio system |
Multichannel |
| LED indicators |
Yes |
| Product colour |
Black |
| Extended display identification data (EDID) |
Yes |
| HDCP version |
1.4/2.2 |
| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| RJ-45 input ports |
1 |
| Number of HDMI outputs |
1 |
| HDMI version |
2.0 |
| Connectivity technology |
Wired |
| Digital audio optical out |
1 |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 85% |
| Operating relative humidity (H-H) |
0 - 85% |
| Storage temperature (T-T) |
-15 - 50 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Width |
4.53" (115 mm) |
| Height |
1.06" (27 mm) |
| Depth |
2.46" (62.4 mm) |
| Weight |
8.82 oz (250 g) |
| Packaging data |
|---|
| Package type |
Box |
| Package depth |
6.46" (164.1 mm) |
| Package width |
8.43" (214.1 mm) |
| Package height |
2.17" (55.1 mm) |
| Package weight |
19.8 oz (560 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Manual |
Yes |
| Technical details |
|---|
| Country of origin |
Taiwan |
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, REACH, RoHS |
| Logistics data |
|---|
| Master (outer) case width |
22.6" (573 mm) |
| Master (outer) case length |
8.94" (227.1 mm) |
| Master (outer) case height |
6.89" (175 mm) |
| Master (outer) case gross weight |
13 lbs (5.9 kg) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332263237 |
