USB-C Dock for Microsoft Surface - 4K HDMI, USB 3.x Gen 2 (10Gbps) and USB 2.0 Hub Ports, GbE, 100W PD Charging, Black
Key Features
- HDMI port supports UHD resolutions up to 4K @ 30 Hz for crystal-clear video
- USB hub ports allow connection of flash drives, hard drives and other peripherals
- Supports USB 3.2 Gen 2 speeds up to 10 Gbps to ensure lightning-fast data transfers
- Connects you to a wired 10/100/1000 Ethernet network when no Wi-Fi is available
- USB-C PD 3.0 port supports 20V 5A (100W) power output for charging host device
Description

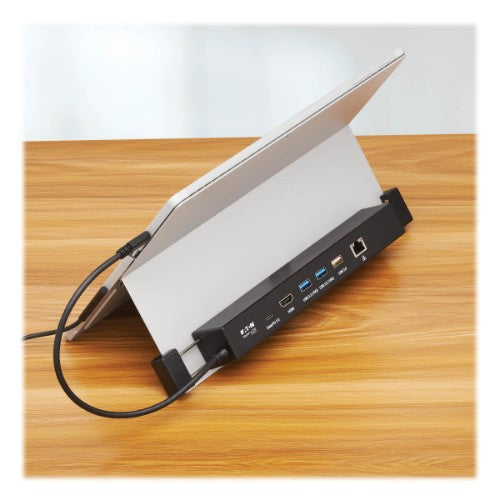

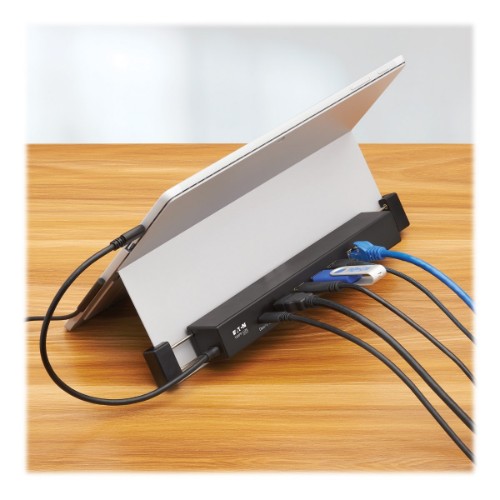

USB-C Docking Station Turns Your Microsoft Surface into a Versatile WorkstationThis multipurpose dock is compatible with any Surface device with a USB-C port. An adjustable clamp firmly secures the dock to compatible Surface devices up to 12 inches (30.5 centimeters) wide. You can connect to a wired Gigabit Ethernet network, transmit 4K video with audio to a larger screen, add a thumb drive and other USB peripherals, and charge your Surface, all at the same time.
Note: This dock clamps to the following models: Surface GO, Surface GO 2, Surface GO 3, Surface Pro 7, Surface Pro 8 and Surface Pro X. It also works with other Surface devices with a USB-C port, but cannot clamp to them.
Transmits Crystal-Clear 4K Video with Digital AudioThe HDMI port supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. HDCP 2.3 compliance allows you to stream 4K Amazon and Netflix content with no complications. You may also connect to a DVI display by connecting an HDMI-to-DVI adapter (sold separately).
USB 3.2 Gen 2 Ports Connect Keyboards, Thumb Drives and Other PeripheralsTwo USB-A ports and one USB-C port support USB 3.2 Gen 2 data transfer rates up to 10 Gbps for USB peripherals, such as flash drives, RAID storage, mice and keyboards. Another USB-A port supports USB 2.0 specifications for devices that require less speed. All ports are backward compatible with previous USB generations, so you can use legacy equipment.
PD Charging Port Charges Host Device via AC Wall ChargerThe USB-C Power Delivery port supports power output up to 20V 5A (100W), which is more than sufficient for charging and powering the connected Surface. Just connect the device’s wall charger to both the USB-C PD port and an AC outlet.
Accesses a Wired Gigabit Ethernet NetworkThe RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.
Specifications
| Performance |
|---|
| Basic device type |
Tablet |
| Brand compatibility |
Microsoft |
| Compatibility |
Surface GO, Surface GO 2, Surface GO 3, Surface Pro 7, Surface Pro 8, Surface Pro X |
| Product colour |
Black |
| Material |
Plastic |
| HD type |
4K Ultra HD |
| Number of displays supported |
1 |
| Maximum resolution |
3840 x 2160 pixels |
| Maximum refresh rate |
30 Hz |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Bluetooth |
No |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Docking connector type |
USB Type-C |
| USB 2.0 ports quantity |
1 |
| Audio output |
No |
| HDMI connector type |
Full-size |
| HDMI |
Yes |
| USB hub |
Yes |
| USB Type-C ports quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.0 |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
100 W |
| USB Power Delivery revision |
3.0 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Bluetooth |
No |
| Ethernet LAN |
Yes |
| Power |
|---|
| Power source type |
USB |
| Weight & dimensions |
|---|
| Cable length |
11.8" (0.3 m) |
| Weight |
8.82 oz (250 g) |
| Packaging data |
|---|
| Quantity |
1 |
| Package width |
11" (279.9 mm) |
| Package depth |
4.33" (110 mm) |
| Package height |
1.77" (45 mm) |
| Package weight |
9.17 oz (260 g) |
| Packaging content |
|---|
| User guide |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Harmonized System (HS) code |
8517.62.0090 |
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS |
| Logistics data |
|---|
| Country of origin |
China |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
18.9" (480.1 mm) |
| Master (outer) case gross weight |
6.61 lbs (3 kg) |
| Master (outer) case length |
11.8" (300 mm) |
| Master (outer) case height |
5.31" (134.9 mm) |
| Harmonized System (HS) code |
8517.62.0090 |
