SmartRack Industrial Enclosure with Lock - NEMA 3R, Wall Mount, Metal Construction, Hinged Back, Internal Fans, 28 in. Depth, 6U, Gray
Key Features
- Enclosed, sealed metal housing protects 6U of rack equipment up to 28 in. deep
- NEMA 3R enclosure provides protection against rain, sleet, snow and other moisture
- Door locks securely with included keys to help prevent damage, tampering or theft
- Built-in internal fans improve airflow through the enclosure and keep equipment cool
- Enclosure swings away from the wall on hinge for easy back-door access
Description

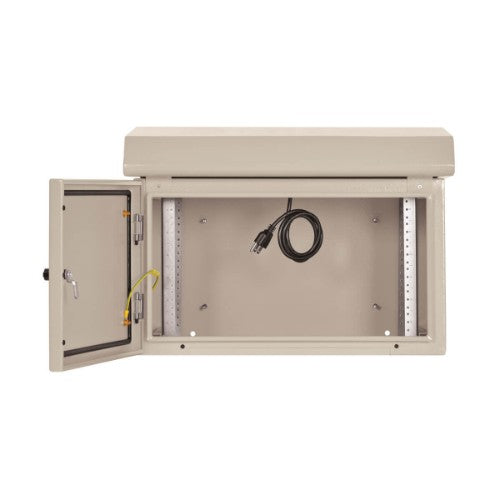

Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 28 in. Deep
This SmartRack® industrial enclosure is designed to house 6U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from steel with a durable gray powder-coated finish, the SRN3RG6US has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications.
NEMA 3R Enclosure Designed for Protection Against Harsh Elements
The SRN3RG6US protects its contents against the ingress of water (including rain, sleet and snow), solid foreign objects (including falling dirt) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.
Locks and Hinged Back Allow Easy Authorized Access to Equipment and Cabling
The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering and unauthorized access. The enclosure swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.
Easy Enclosure and Equipment Installation
This 6U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 28 inches deep. Hardware for mounting equipment inside the enclosure is included. Built-in fans help keep mounted equipment cool and lasting longer.
Specifications
| Weight & dimensions |
|---|
| Package depth |
36" (914.4 mm) |
| Package width |
28" (711.2 mm) |
| Package height |
24" (609.9 mm) |
| Package weight |
164.9 lbs (74.8 kg) |
| Width |
25.2" (639.3 mm) |
| Depth |
32.1" (816.1 mm) |
| Height |
18" (456.9 mm) |
| Weight |
116.2 lbs (52.7 kg) |
| Maximum weight capacity |
200.6 lbs (91 kg) |
| Packaging content |
|---|
| Manual |
Yes |
| Screws included |
Yes |
| Number of screws |
24 |
| Features |
|---|
| Number of fans |
2 fan(s) |
| Key lock |
Yes |
| Rack capacity |
6U |
| Cable management |
Yes |
| Type |
Wall mounted rack |
| Maximum weight capacity |
200.6 lbs (91 kg) |
| Material |
Steel |
| Cooling type |
Active |
| Product colour |
Gray |
| Power |
|---|
| AC input voltage |
120 V |
| AC input frequency |
50 - 60 Hz |
| Packaging data |
|---|
| Manual |
Yes |
| Package depth |
36" (914.4 mm) |
| Package width |
28" (711.2 mm) |
| Package height |
24" (609.9 mm) |
| Package weight |
164.9 lbs (74.8 kg) |
| Screws included |
Yes |
| Number of screws |
24 |
| Technical details |
|---|
| Package width |
28" (711.2 mm) |
| Package height |
24" (609.9 mm) |
| Type |
Wall mounted rack |
| Cooling type |
Active |
| Sustainability compliance |
Yes |
| Harmonized System (HS) code |
8517.62.0090 |
| Compliance certificates |
RoHS, REACH |
| Rack capacity |
6U |
| Colour |
|---|
| Product colour |
Gray |
| Material |
|---|
| Material |
Steel |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
8517.62.0090 |
