Tripp Lite NGI-U05C2POE4 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

5-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, PoE+ 30W, -10° to 60°C, 2 GbE SFP Slots, DIN Mount, TAA

Key Features

• 5 auto-negotiable RJ45 and 2 GbE SFP ports connect devices over a LAN
• 4 PoE+ ports deliver up to 30W each with a 120W total PoE budget
• Industrial-grade switch supports operating temperature range of -10° to 60°C
• Plug-and-play operation with no software or configuration required before use
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Description

5-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving Power over Ethernet (PoE) switch transmits both power and data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-U05C2POE4 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper.

PoE+ Ports Deliver Power to Devices Without Access to AC Outlets
This unmanaged switch features four PoE ports capable of powering compatible devices, such as cameras, sensors, clocks, digital signage and wireless access points, without the need to run separate power lines or install the devices near an AC outlet. The NGI-U05C2POE4 provides PoE+ compatibility up to 30W per PoE port and a PoE budget of 120W.

Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U05C2POE4 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit).

Unmanaged Switch Requires Little to No Configuration

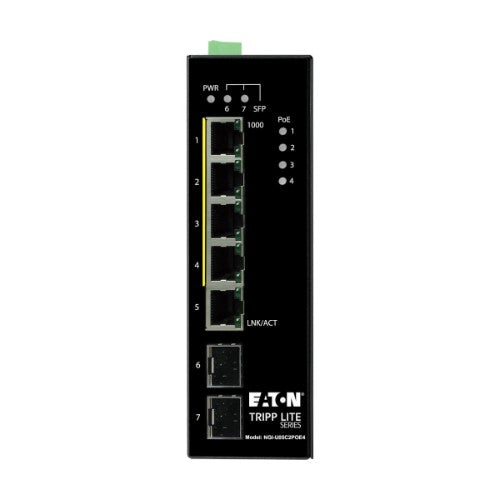

Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U05C2POE4 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

Works with the Most Popular Web Browsers
The NGI-U05C2POE4 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-U05C2POE4 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

Pre-Installed DIN Rail Clip Allows for Convenient Installation

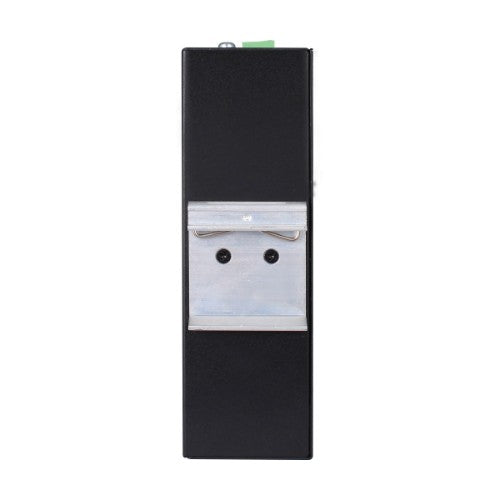

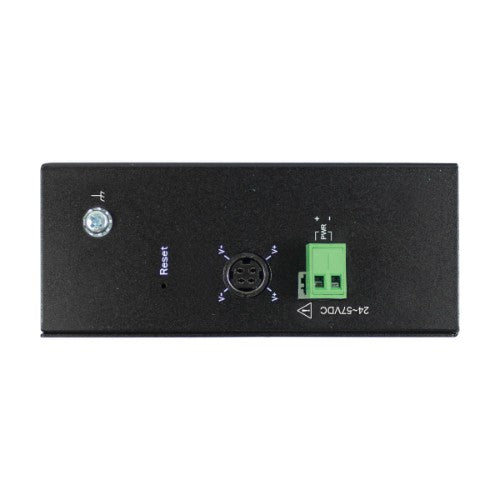

The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features a 2-pin 24–57VDC terminal block power input to help prevent unnecessary downtime. Device power must be supplied by SELV circuit.

TAA-Compliant for GSA Schedule Purchases
The NGI-U05C2POE4 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	Terminal block (2-pin)
Network
MAC address auto-learning supported	Yes
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
Jumbo frames	10000
MAC address table	8000 entries
Switching capacity	14 Gbit/s
Jumbo frames support	Yes
Design
DIN rail mounting	Yes
Product colour	Black
LED indicators	LAN, Link, Power
Housing material	Metal
Rack mounting	No
Country of origin	Taiwan
Power
Power supply included	No
Power consumption (typical)	14 W
Input current	6 A
DC input voltage	24 - 57 V
Power connector	Terminal block (2-pin)
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	120 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	1.97" (50 mm)
Depth	4.72" (119.9 mm)
Height	6.3" (160 mm)
Weight	30.3 oz (860 g)
Packaging content
Manual	Yes
Packaging data
Package width	9.17" (232.9 mm)
Package depth	7.2" (182.9 mm)
Package height	2.44" (62 mm)
Package weight	34.9 oz (990 g)
Manual	Yes
Sustainability
Sustainability compliance	Yes
Performance
Auto-negotiation	Yes
Harmonized System (HS) code	8517.62.0020
Technical details
Product colour	Black
Housing material	Metal
Rack mounting	No
Sustainability compliance	Yes
Master (outer) case GTIN (EAN/UPC)	10037332266023
Compliance certificates	RoHS, CE, REACH
Certificates
Compliance certificates	RoHS, CE, REACH
Indication
LED indicators	LAN, Link, Power
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
Country of origin	Taiwan
Logistics data
Country of origin	Taiwan
Master (outer) case width	13.1" (334 mm)
Master (outer) case length	15.1" (384 mm)
Master (outer) case height	10.2" (260.1 mm)
Master (outer) case gross weight	23.6 lbs (10.7 kg)
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	8517.62.0020
