Tripp Lite NGI-S16 network switch Managed Gigabit Ethernet (10/100/1000) Black

16-Port Lite Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, -10° to 60°C, DIN Mount, TAA

Key Features

• 16 auto-negotiable 10/100/1000 Mbps RJ45 ports connect devices over a LAN
• RJ45 ports can be repurposed as a console port for access to command line interface
• Industrial-grade switch supports operating temperature range of -10° to 60°C
• Cloud-based platform lets you manage devices via web
• Ideal for applications that demand high bandwidth convergence, such as IP security

Description

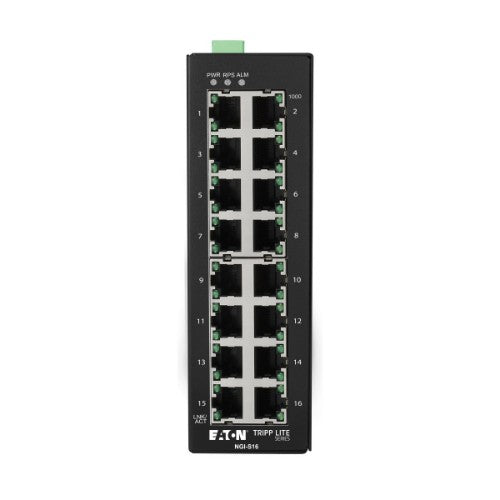

16-Port Smart Gigabit Ethernet Switch Connects Your Network Devices to a LAN
This Lite Managed switch transmits data over a Gigabit Ethernet network. Sixteen auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity.

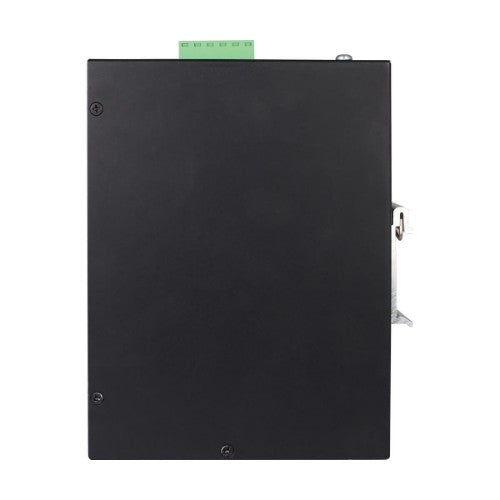

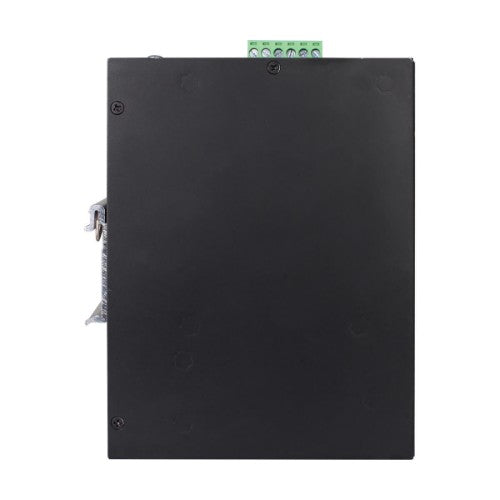

Protective Metal Housing Built to Last in Harsh Environments
The hardened NGI-S16 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, security, government, military, oil and gas, mining and outdoor applications that demand high bandwidth convergence, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -10 to 60 degrees Celsius (-14 to 140 degrees Fahrenheit).

Manages and Monitors Devices via Innovative Management Platform
The Lite Managed switch’s user-friendly cloud-based platform helps you manage your network via web interface. Three different features help you monitor connected devices, real-time traffic and link information. The Wizard is a set-up assistant that guides you step-by-step through initial management. The Topology Map with visual connectivity diagram displays network infrastructure and highlights link status. The Dashboard provides important performance and traffic-related information. A tri-color scheme – red (critical), yellow (alert), green (normal) – keeps you up to date on any network irregularities.

Intelligent Connection Technology Ensures Plug-and-Play Operability
The NGI-S16 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files.

Works with the Most Popular Web Browsers
The NGI-S16 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-S16 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

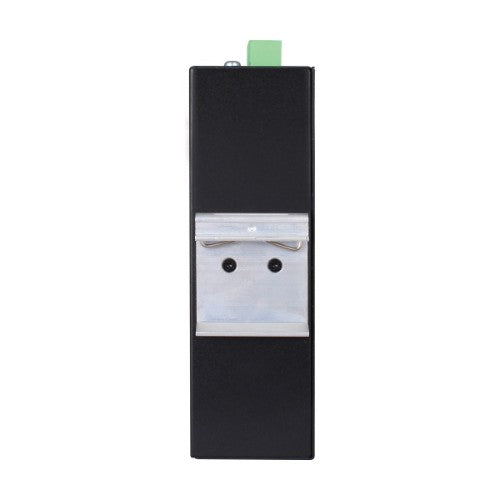

Pre-Installed DIN Rail Clip Allows for Convenient Installation

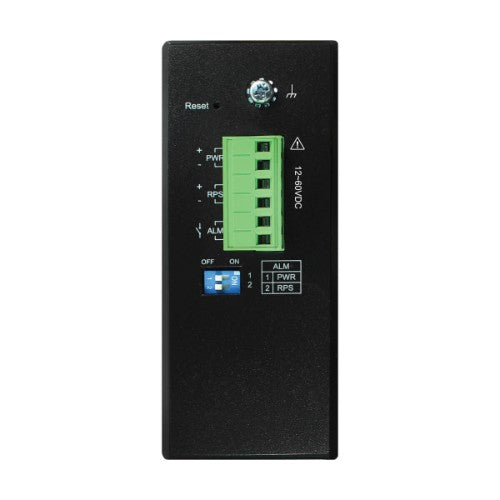

The switch may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 12–60VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.

TAA-Compliant for GSA Schedule Purchases
The NGI-S16 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specifications

Management features
Switch type	Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
MAC address auto-learning supported	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Data transmission
Jumbo frames	10000
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Jumbo frames support	Yes
Security
DHCP features	DHCP snooping
Design
DIN rail mounting	Yes
Product colour	Black
Stackable	Yes
LED indicators	Power, Speed
Housing material	Metal
Country of origin	Taiwan
Certification	FCC, CE, RoHS, REACH
Power
Power supply included	Yes
Power consumption (typical)	12 W
Input current	1.5 A
DC input voltage	12 - 60 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	1.97" (50 mm)
Depth	4.72" (119.9 mm)
Height	6.3" (160 mm)
Weight	32.1 oz (910 g)
Packaging data
Package width	9.17" (232.9 mm)
Package depth	7.2" (182.9 mm)
Package height	2.44" (62 mm)
Package weight	2.31 lbs (1.05 kg)
Performance
Stackable	Yes
Harmonized System (HS) code	8517.62.0020
Technical details
Product colour	Black
Stackable	Yes
Housing material	Metal
Master (outer) case GTIN (EAN/UPC)	10037332266986
Certificates
Certification	FCC, CE, RoHS, REACH
Indication
LED indicators	Power, Speed
Other features
Country of origin	Taiwan
Logistics data
Country of origin	Taiwan
Master (outer) case width	13.1" (334 mm)
Master (outer) case length	15.1" (384 mm)
Master (outer) case height	10.2" (260.1 mm)
Master (outer) case gross weight	25.6 lbs (11.6 kg)
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	8517.62.0020
