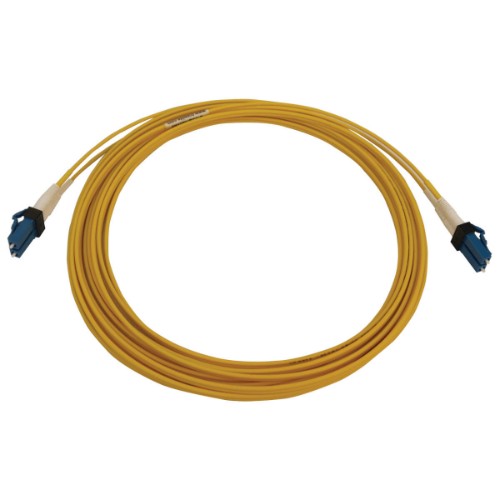

400G Duplex Singlemode 9/125 OS2 Switchable Fiber Optic Cable (LC/UPC M/M), LSZH, Yellow, 5 m (16.8 ft.)
Key Features
- OS2-rated cable recommended for 100 Gb speeds up to 100 meters (@ 1550 nm)
- Switchable LC connectors allow polarity conversion without tools or re-termination
- Backward compatible with 10/25/40/100 Gb networks to facilitate future-proofing
- Yellow LSZH jacket allows fast, easy identification in a crowded switch or patch panel
Description
40/100/400 GbE Cable Supports Higher Bandwidths for High-Density Data NetworkingThe N370X-05M is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This singlemode 9/125 OS2 cable is an ideal choice for 100 Gb Ethernet applications up to 100 meters (328 feet) at 1550 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb or 400 Gb.

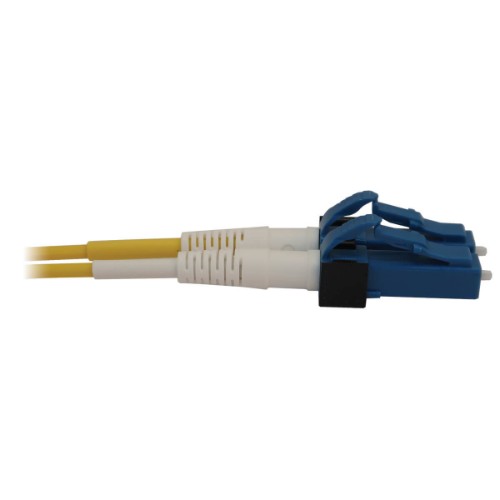

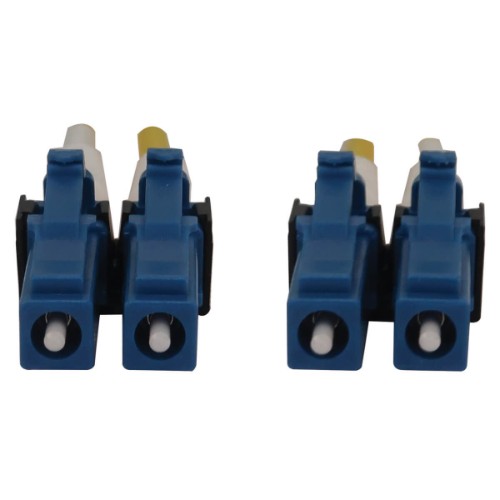

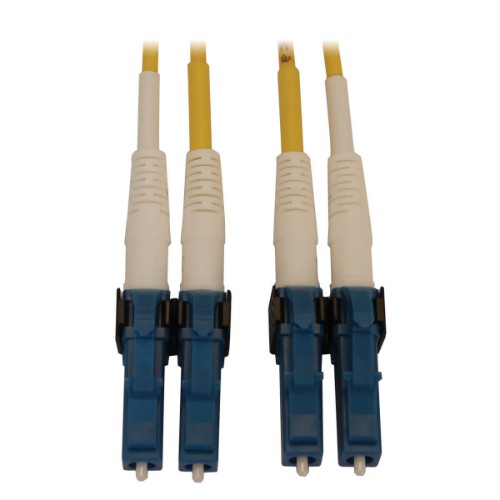

Switchable Connectors Allow Easy Polarity ConversionsThe switchable LC/UPC duplex ends let you easily switch the fiber polarity without tools or the need to re-terminate the connectors.
Yellow Jacket Helps Avoid Misidentification That Can Cause Costly DowntimeThe OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.
Specifications
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Single-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable type |
OFNR |
| Cable length |
196.9" (5 m) |
| Core diameter |
9 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.3 dB |
| Sustainability compliance |
Yes |
| Sustainability certificates |
UL ECOLOGO |
| Master (outer) case GTIN (EAN/UPC) |
10037332271812 |
| Compliance certificates |
RoHS, CE, REACH |
| Features |
|---|
| Bending radius |
0.787" (2 cm) |
| Fibre optic type |
OS2 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Single-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable type |
OFNR |
| Cable length |
196.9" (5 m) |
| Core diameter |
9 µm |
| Cladding diameter |
125 µm |
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Insertion loss |
0.3 dB |
| Data transfer rate |
400 Gbit/s |
| Country of origin |
China |
| Ethernet interface type |
10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet, Gigabit Ethernet |
| Harmonized System (HS) code |
8544.70.0000 |
| Product colour |
Blue, Yellow |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector polish type |
UPC |
| Data transmission |
|---|
| Data transfer rate |
400 Gbit/s |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Weight & dimensions |
|---|
| Bending radius |
0.787" (2 cm) |
| Cable length |
196.9" (5 m) |
| Package width |
7" (177.8 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
9" (228.6 mm) |
| Package weight |
1.76 oz (50 g) |
| Packaging data |
|---|
| Package width |
7" (177.8 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
9" (228.6 mm) |
| Package weight |
1.76 oz (50 g) |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Master (outer) case width |
7.3" (185.4 mm) |
| Master (outer) case length |
5.9" (149.9 mm) |
| Master (outer) case height |
4" (101.6 mm) |
| Master (outer) case gross weight |
19.8 oz (560 g) |
| Products per master (outer) case |
10 pc(s) |
| Harmonized System (HS) code |
8544.70.0000 |
| Quantity per pack |
1 pc(s) |
