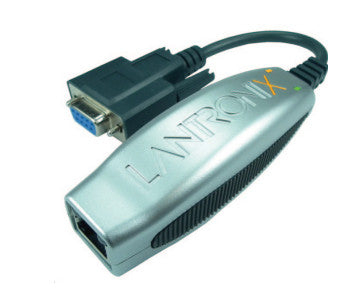

xDirect232 Single Port RS232 10/100 Device Server, 100-240 VAC International Power Supply with Regional Adapters, RoHS
Description
Network Connectivity For Any Serial Device 'Right On The Wire'xDirect™ is a sleek and compact Serial-to- Ethernet device server, providing quick and easy Ethernet connectivity to virtually any device or machine with a serial interface.
With an integrated Ethernet port and serial cable, multiple power options including PoE, and an industry-best five year warranty, xDirect provides a portable, extremely flexible, and highly affordable network connectivity solution.
xDirect comes with a built-in web server that enables users to access and configure the unit using a standard web browser on a PC, smartphone, or tablet from anywhere.
With plug-and-play simplicity, small form factor, multiple power options, and a robust device server application, xDirect provides the easiest and shortest path to network connectivity ‘right on the wire’.
Specifications
| Technical details |
|---|
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| RS-232 signals |
DCD, DSR, DTR |
| Management protocols |
SNMP |
| Flow control support |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Baud rate |
921.6 Kbit/s |
| Ports & interfaces |
|---|
| Wi-Fi |
No |
| USB 2.0 ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| Cabling technology |
10/100Base-T(X) |
| Processor |
|---|
| Built-in processor |
DSTni-EX |
| Memory |
|---|
| RAM capacity |
0.4 MB |
| Flash memory |
1 MB |
| Weight & dimensions |
|---|
| Weight |
2.4 oz (68 g) |
| Dimensions (WxDxH) |
7.09 x 5.12 x 2.09" (180 x 130 x 53 mm) |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Protocols |
|---|
| Supported network protocols |
UDP, TCP, ARP, Telnet, ICMP, DHCP, BOOTP, TFTP, Auto IP, HTTP, Telnet |
| Security |
|---|
| Security algorithms |
128-bit AES, 192-bit AES, 256-bit AES |
| Indication |
|---|
| LED indicators |
Yes |
| Power LED |
Yes |
| Link/Act LED |
Yes |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Management features |
|---|
| Management protocols |
SNMP |
