StarTech.com 6.6ft (2m) USB-C Charging Cable, Side Screw Locking, 240W (5A) PD EPR, Dual-Layer Silicone/Braided Jacket, Laptop Charger Cord, USB-IF Certified
Key Features
- USB-C EPR CHARGING CABLE: Side Screw Locking USB-C cable supports Power Delivery 3.1 EPR with up to 240W for high-performance laptops; Ideal for chargers and hubs with side-locking USB-C ports; Performance markings on connectors for easy identification
- USB-IF CERTIFIED: The USB C Cable with integrated E-marker chip is USB-IF certified, for consistent Power Delivery output to USB-C hosts and peripherals; When using certified cables, reliable performance and compatibility is guaranteed
- QUALITY CONSTRUCTION: Flexible braided nylon jacket resists wear and withstands -/+90° bends and up to 20,000 bending cycles; Nickel-plated connectors rated beyond 10,000 insertions; M2 Screw Locking connector with knurled grip for easy installation and removal
- APPLICATIONS: Compatible with USB-C Power Delivery-enabled devices; Screw Locking for drive enclosures & external storage; Suitable for high-performance laptops such as 16in MacBook Pro/Max M-series; Supports USB 2.0 for general file transfer/sync
- PERFORMANCE: 240W/5A PD 3.1 EPR, 48V; Backward Compatible w/140W/100W/60W; USB 2.0 Type-C (480Mbps); 2-meter (6.6-foot) cable; Color: Black; O.D.: 0.18in (4.7mm); Silicone Jacket w/Braided Nylon; NOTE: USB-C video (DP Alt Mode) is not supported
Description
Maintain a secure connection using this rugged USB-C cable with side-locking screws
Connect a charger or hub to a USB Power Delivery (PD) 3.1-enabled device, using this USB-C Charging Cable. The USB-C charger cord delivers up to 240W of Extended Power Range (EPR) Power Delivery and 5A output for fast charging. The connector markings enable quick visual identification, distinguishing it from other similar-looking or unmarked USB-C cables. Eliminate guesswork and always choose the right Type-C cable to support full 240W charging.

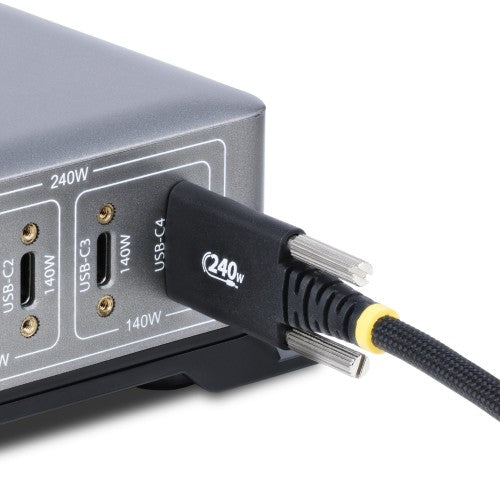

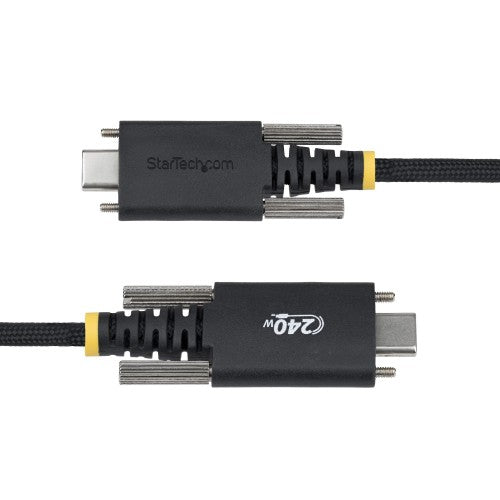

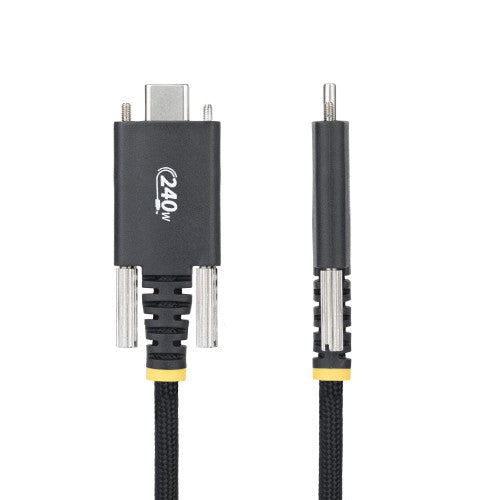

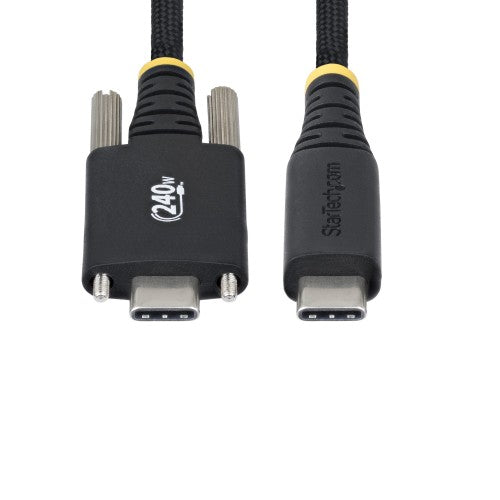

Screw Locking USB-C
This cable features dual locking screws that can securely connect to your USB-C peripherals and can prevent accidental disconnection from your devices. The knurled screws can be removed from the cable completely allowing it to be used as a standard USB-C cable if required.
The screws are designed to fit all devices that use a standard side screw locking input.
Quality Construction
The USB-C EPR Charging Cable features a silicone inner jacket with a braided nylon exterior for optimal flexibility and wear protection. The durable nickel-plated connectors are designed for frequent daily use, and are rated to operate beyond 20,000 insertion cycles.
Charge Mobile Devices On The Go
Charge a USB-C device with a USB-C wall charger, car charger, or power bank. The 2-meter (6.6-foot) USB Type-C cable is the ideal length for desk and mobile workstations, commuters, in-car use or to reduce clutter when syncing with a USB-C laptop.

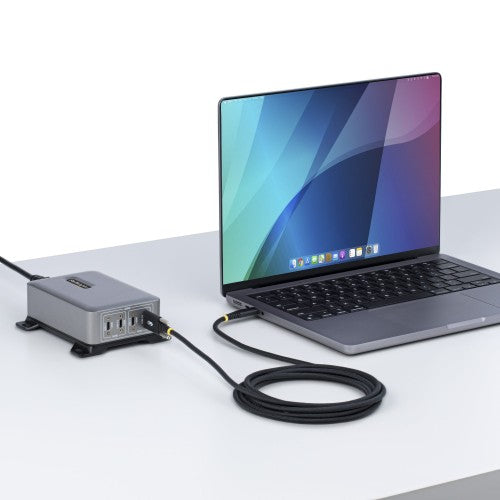

Power a Laptop
With up to 5A of output, the USB-C Charger Cord supports up to 240W of Power Delivery to charge a USB-C laptop, or fast charge a tablet or smartphone. To use, connect the cable from a USB-C laptop to a USB-C wall charger.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| AWG wire size |
30 |
| USB version |
USB 2.0 |
| Connector 1 |
USB C |
| Connector 2 |
USB C |
| Cable length |
78.7" (2 m) |
| Connector contacts plating |
Nickel |
| Product colour |
Black |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| USB Power Delivery (USB PD) |
Yes |
| Cable jacket material |
Silicone |
| USB Power Delivery up to |
240 W |
| USB Power Delivery revision |
3.1 |
| Cable jacket type |
Braided |
| USB Type-C DisplayPort Alternate Mode |
No |
| Connector 2 lockable |
Yes |
| Maximum data transfer rate |
0.48 Gbit/s |
| Output voltage |
48 V |
| Output current (max) |
5 A |
| Cable diameter |
0.185" (4.7 mm) |
| Weight |
2.96 oz (84 g) |
| Quantity per pack |
1 pc(s) |
| Power |
|---|
| Output voltage |
48 V |
| Output current (max) |
5 A |
| Weight & dimensions |
|---|
| Cable diameter |
0.185" (4.7 mm) |
| Cable length |
78.7" (2 m) |
| Weight |
2.96 oz (84 g) |
| Package width |
8.66" (220 mm) |
| Package depth |
5.04" (128 mm) |
| Package height |
0.709" (18 mm) |
| Package weight |
3.17 oz (90 g) |
| Packaging data |
|---|
| Package width |
8.66" (220 mm) |
| Package depth |
5.04" (128 mm) |
| Package height |
0.709" (18 mm) |
| Package weight |
3.17 oz (90 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Ports & interfaces |
|---|
| USB version |
USB 2.0 |
| Connector 1 |
USB C |
| Connector 2 |
USB C |
| Connector contacts plating |
Nickel |
| Technical details |
|---|
| Product colour |
Black |
| Compliance certificates |
Federal Communications Commission (FCC), RoHS |
| Certificates |
|---|
| Compliance certificates |
Federal Communications Commission (FCC), RoHS |
| Other features |
|---|
| Product colour |
Black |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Compliance certificates |
Federal Communications Commission (FCC), RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
140 pc(s) |
| Master (outer) case width |
19.7" (500 mm) |
| Master (outer) case length |
12.6" (320 mm) |
| Master (outer) case height |
8.27" (210 mm) |
