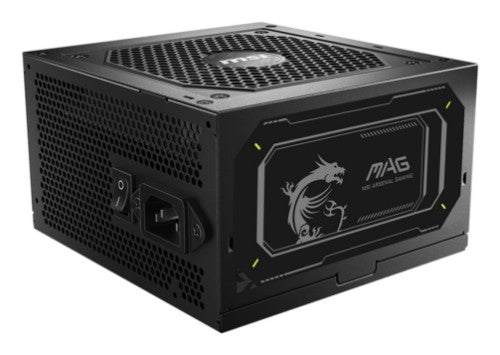

MSI MAG A750GL PCIE5 II power supply unit 750 W 20+4 pin ATX ATX Black

750W, 47-63Hz, ATX 3.1, 120 mm, 80 PLUS Gold, 140 x 150 x 86 mm

Key Features

• ATX 3.1 ready, native PCIe 5.1 connector
• Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
• Full modular design,Flat cables
• 80 Plus Gold certified for high efficiency with Active PFC design
• Industrial level protection with OVP, OCP, OPP, OTP, SCP, UVP

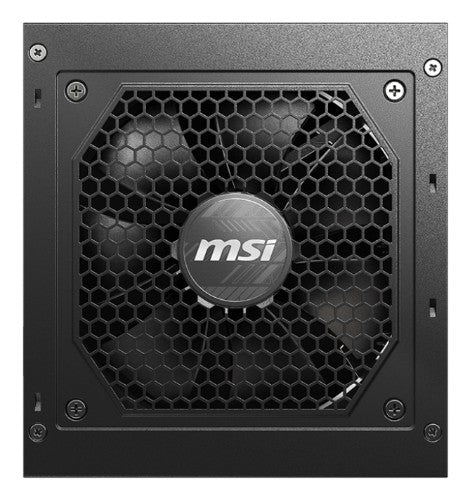

• 120 mm Fluid Dynamic Bearing Fan
• LLC Full Bridge Topology with DC-DC module design

Description

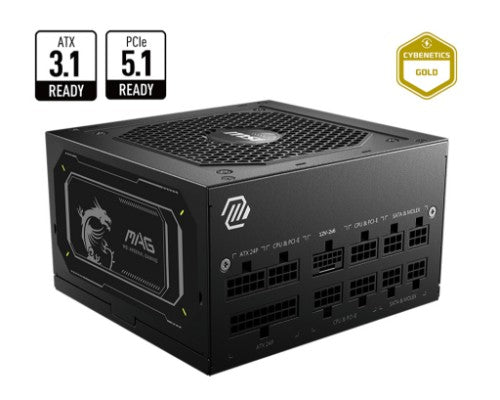

ATX 3.1 Ready
It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

ONLY WHAT YOU NEED

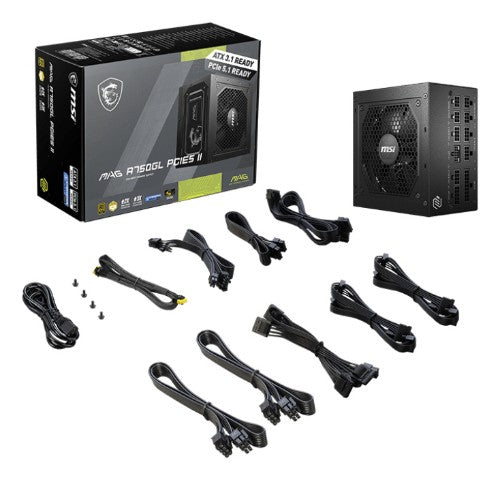

The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

FLUID DYNAMIC BEARING
The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.

DC to DC & Full bridge
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.

PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.

Specifications

Cooling
Fan diameter	4.72" (12 cm)
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
Bearing technology	FDB
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black
Fan diameter	4.72" (12 cm)
On/off switch	Yes
Number of fans	1 fan(s)
Cooling type	Active
Power
Total power	750 W
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	110 W
Combined power (+12V)	744 W
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Efficiency	90%
Number of +12V rail(s)	1

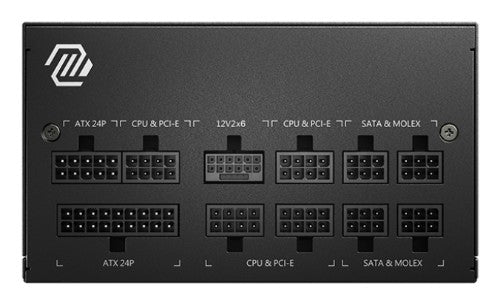

Ports & interfaces
Motherboard power cable length	23.6" (60 cm)
SATA power cable length	150,500 mm
Peripheral (Molex) power cable length	500 mm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	8
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (6+2 pin)	3
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (16-pin)	1
Weight & dimensions
Width	5.91" (150 mm)
Depth	5.51" (140 mm)
Height	3.39" (86 mm)
Packaging data
Package type	Box
Certificates
80 PLUS certification	80 PLUS Gold
