10 TB, 4kn SAS, 12GB/s, 3.5", 7200 RPM
Key Features
- Store up to 9 PB in a single 42U rack with helium-sealed drive technology
- Advanced Write Caching provides a 20% boost over previous generation drives
- Highest 10 TB HDD performance, making it perfect for OLTP and HPC applications
- Hyperscale SATA model tuned for large data transfers
- Proven enterprise-class reliability backed by 2.5M-hr MTBF
- Lowest 10 TB power consumption with up to 6% savings per rack per year
Description

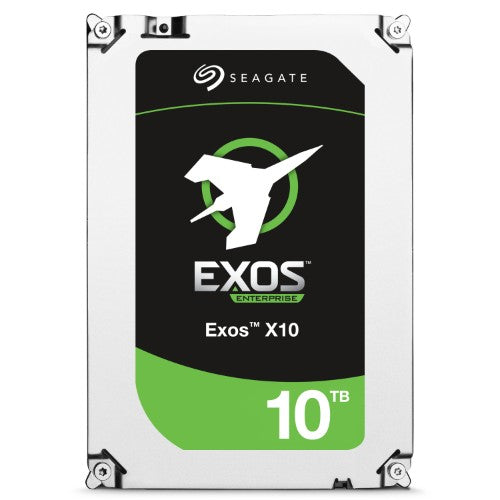

The Seagate® Exos™ X10 hard drive includes 10 TB and 8 TB secure, highcapacity, high performance enterprise hard drives optimised for demanding hyperscale applications for maximum TCO savings.
Maximum Storage Capacity for High Rack Space EfficiencyThe Exos X10 enterprise hard drives support up to 10 TB per drive, providing 25% more petabytes per rack. High storage densities allow the latest technology and greatest efficiencies to help catalyse the datasphere, enabling data centre architects and IT professionals to deliver trusted performance, rocksolid reliability, ironclad security and low TCO for demanding 24×7 operations.
Industry's Highest Performance Combined With the Lowest Power and Weight for Lower TCO
Exos X10 drives offer the industry's highest 10 TB hard drive performance with advanced write caching, making it perfect for OLTP, Hadoop, Ceph and HPC applications. The hyperscale SATA model is tuned for large data transfers and offers a 20% boost in random write performance. Experience the industry's best in IOPS/watt by optimising your storage with Seagate's PowerBalance™ feature.
Innovative Helium DesignThe proven, enterprise-class Exos X10 is backed by a 2.5 M-hour MTBF. Built on a wrought aluminium base, the helium-sealed drive design with no porosity and uniform density is engineered with superior material and a wide-weld design, and utilises the latest hermetic interconnect technology to support higher data rate heads and higher pin counts to excel in extreme thermal conditions in a robust storage infrastructure. These Seagate X class hard drives provide digital environmental sensors that measure internal humidity, pressure and temperature, to help ensure high reliability and performance.
Enhanced Enterprise Reliability, Data Protection and SecurityThe Exos X10 hard drives offer advanced security features that help protect data where it lives — on the drive. Advanced security levels to prevent unauthorised access to a drive and safeguard stored data include Seagate Downloads & Diagnostics, TCG-compliant Self Encrypting Drive and governmentgrade FIPS/Common Criteria tamper-resistant hard drive. Seagate Secure™ drives simplify drive repurposing and disposal, help protect data-at-rest, and comply with corporate and federal data security mandates.
Specifications
| Hard drive |
|---|
| Component for |
Server/workstation |
| HDD interface transfer rate |
12 Gbit/s |
| Average latency |
4.16 ms |
| Mean time between failures (MTBF) |
2500000 h |
| HDD speed |
7200 RPM |
| HDD size |
3.5" |
| HDD capacity |
10 TB |
| Features |
|---|
| Type |
HDD |
| Component for |
Server/workstation |
| HDD interface transfer rate |
12 Gbit/s |
| Interface |
SAS |
| Average latency |
4.16 ms |
| Mean time between failures (MTBF) |
2500000 h |
| HDD speed |
7200 RPM |
| HDD size |
3.5" |
| HDD capacity |
10 TB |
| Power |
|---|
| Power consumption (write) |
9 W |
| Power consumption (read) |
9.4 W |
| Power consumption (idle) |
5.5 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 60 °C |
| Operating shock |
70 G |
| Non-operating vibration |
2.27 G |
| Non-operating shock |
250 G |
| Technical details |
|---|
| Quantity per pack |
1 pc(s) |
| Interface |
SAS |
| Mean time between failures (MTBF) |
2500000 h |
| Weight & dimensions |
|---|
| Width |
4.01" (101.8 mm) |
| Weight |
22.9 oz (650 g) |
| Height |
1.03" (26.1 mm) |
| Depth |
5.79" (147 mm) |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Interface |
SAS |
