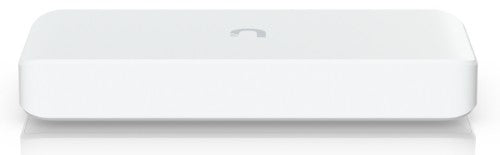

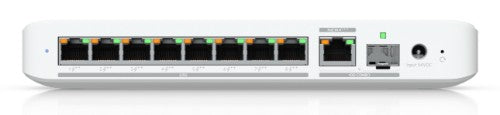

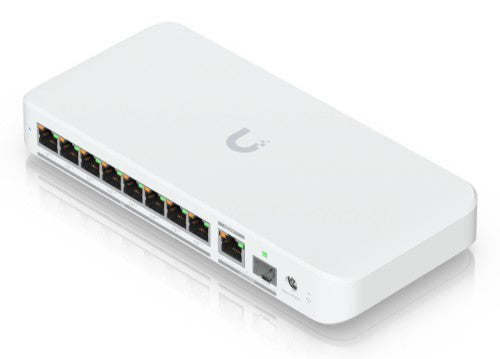

8x 2.5 GbE PoE++, 1x 10G SFP+ or 10/5/2.5/1 GbE RJ45 combination port, 60W PoE++, 60 Gbps, white
Key Features
- (8) 2.5 GbE PoE++ output ports
- (1) 10 GbE PoE+++ input port for power / SFP+ port combo (57W PoE availability with PoE+++ input / 37W PoE availability with PoE++ input / 12W PoE availability with PoE+ input)
- 196W PoE availability with optional AC power adapter
Description
Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter*.
*AC power adapter sold separately.
Specifications
| Management features |
|---|
| Reset button |
Yes |
| Switch type |
Managed |
| Multicast support |
Yes |
| Switch layer |
L2 |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
1 |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Power connector |
DC-in jack |
| 2.5G Ethernet (copper) ports quantity |
8 |
| 10G Ethernet (copper) ports quantity |
1 |
| Network |
|---|
| Rate limiting |
Yes |
| Port mirroring |
Yes |
| Flow control support |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Broadcast storm control |
Yes |
| 10G support |
Yes |
| Data transmission |
|---|
| Switching capacity |
60 Gbit/s |
| Jumbo frames support |
Yes |
| Forwarding rate |
44.64 Mpps |
| Throughput |
30 Gbit/s |
| Security |
|---|
| Loop protection |
Yes |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|

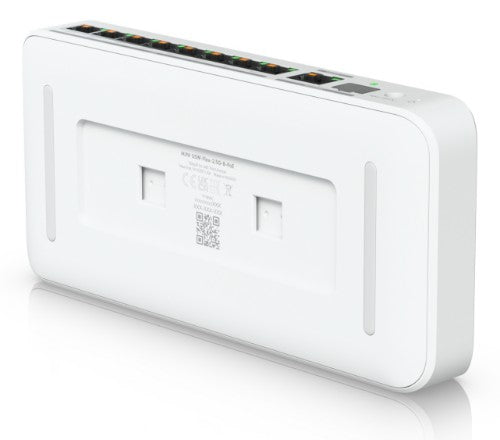

| Wall mountable |
Yes |
| Reset button |
Yes |
| DIN rail mounting |
Yes |
| Form factor |
Desktop/Wall-Mounting |
| Product colour |
White |
| LED indicators |
Activity, Link, PoE, Power, Status |
| Housing material |
Polycarbonate (PC) |
| Power |
|---|
| Power consumption (max) |
17 W |
| Power supply included |
No |
| Input current |
3.9 A |
| DC input voltage |
54 V |
| Power source |
AC/DC/PoE |
| Power connector |
DC-in jack |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
15.4 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Total Power over Ethernet (PoE) budget |
196 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) voltage |
57 V |
| Power over Ethernet 4PPoE (PoE++) ports quantity |
1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 45 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
8.38" (212.9 mm) |
| Depth |
3.91" (99.4 mm) |
| Height |
1.32" (33.5 mm) |
| Weight |
20 oz (567 g) |
| Technical details |
|---|
| Form factor |
Desktop/Wall-Mounting |
| Product colour |
White |
| Housing material |
Polycarbonate (PC) |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Indication |
|---|
| LED indicators |
Activity, Link, PoE, Power, Status |
| Other features |
|---|
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
