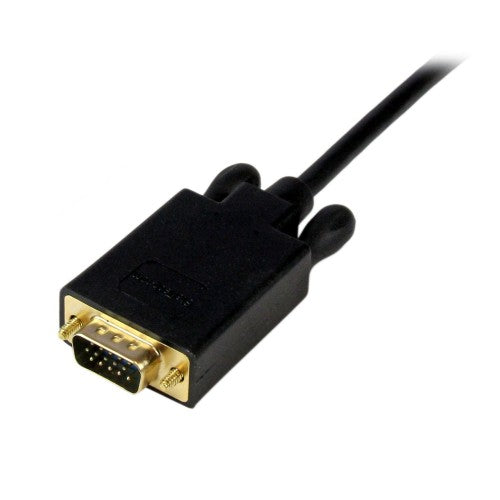

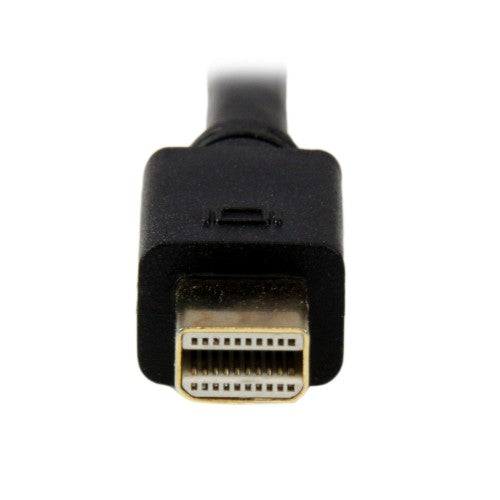

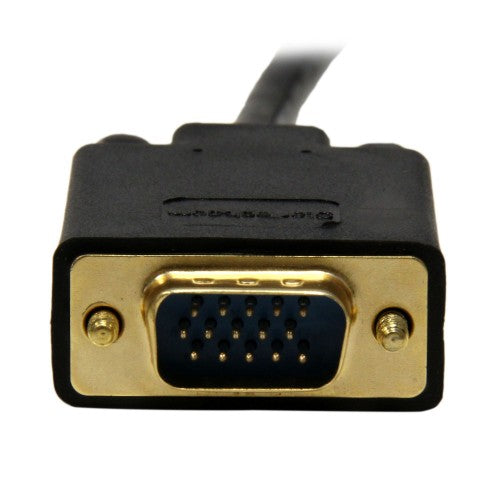

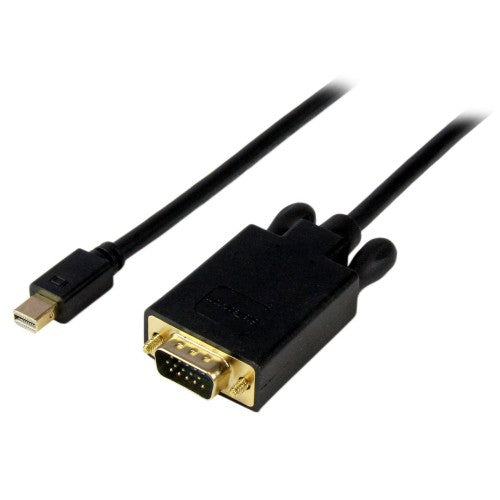

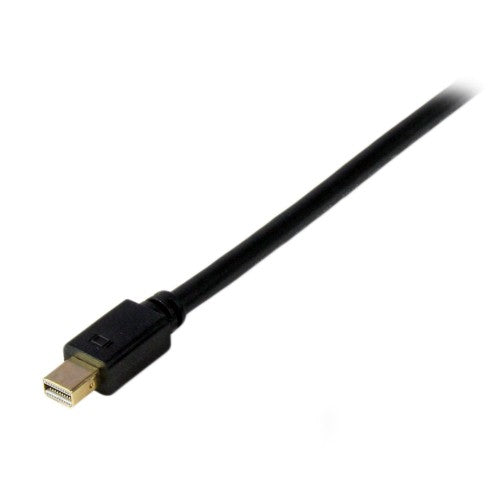

StarTech.com 6ft (2m) Mini DisplayPort to VGA Cable - Active Mini DP to VGA Adapter Cable - 1080p Video - mDP 1.2 or Thunderbolt 1/2 Mac/PC to VGA Monitor/Display - Converter Cord (MDP2VGAMM6B)
Key Features
- MINI DISPLAYPORT TO VGA CABLE: 6ft (1.8m) Mini DisplayPort 1.2 (HBR2) to VGA cable connects a VGA display/monitor/projector supporting 1920x1200 & 1080p at 60Hz; DPCP & HDCP 1.4 / EDID & DDC pass-through ensure compatibility between source & display
- HOST COMPATIBILITY: Active digital to analog converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INTEGRATED DISPLAY CABLE: Mini DisplayPort to VGA adapter cable has slim & flexible design with video adapter chip built into VGA connector reducing clutter & providing a tidy install in the office, boardroom or home office
- INCREASE PRODUCTIVITY: Connect a VGA monitor or projector, or add a second display to your workstation using this mDP to VGA display adapter cable / Supports VGA screw locking cable to prevent accidental disconnection / Gold-plated connectors
- EASY TO USE: With no software or drivers required, the Mini DP to VGA converter cord works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like Microsoft Surface PCs or TB1/TB2 MacBooks
Description
Connect a Mini DisplayPort-equipped PC or Mac® to a VGA monitor/projector, with a 6ft black cable
The MDP2VGAMM6B 6ft active Mini DisplayPort to VGA converter cable lets you connect your Mini DisplayPort-equipped device (such as a Macbook® or any Microsoft® Surface™ Pro devices with mDP) directly to a VGA monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your Mini DisplayPort computer to work with a VGA monitor or projector.
The adapter cable is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port. Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.
The MDP2VGAMM6B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Converter type |
Active video converter |
| Chipset |
Analogix - 9832 |
| DisplayPort version |
1.2 |
| Product colour |
Black |
| Cable length |
72" (1.83 m) |
| Connector 1 |
mini DisplayPort |
| Connector 2 |
VGA (D-Sub) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Maximum resolution |
1920 x 1200 pixels |
| Supported video modes |
1080p |
| HDCP |
Yes |
| Plug and Play |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| HDCP version |
1.4 |
| DisplayPort Content Protection (DPCP) |
Yes |
| HBR2 support |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
40 - 85% |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Other features |
|---|
| Width |
1.46" (37 mm) |
| Height |
0.748" (19 mm) |
| Depth |
72" (1830 mm) |
| Weight & dimensions |
|---|
| Width |
1.46" (37 mm) |
| Height |
0.748" (19 mm) |
| Depth |
72" (1830 mm) |
| Weight |
3.57 oz (101.3 g) |
| Package width |
7.76" (197 mm) |
| Package depth |
8.74" (222 mm) |
| Package height |
0.787" (20 mm) |
| Package weight |
4.34 oz (123 g) |
| Packaging data |
|---|
| Package width |
7.76" (197 mm) |
| Package depth |
8.74" (222 mm) |
| Package height |
0.787" (20 mm) |
| Package weight |
4.34 oz (123 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Master (outer) case width |
16.5" (420 mm) |
| Master (outer) case length |
16.3" (415 mm) |
| Master (outer) case height |
17.1" (435 mm) |
| Products per master (outer) case |
150 pc(s) |
| Harmonized System (HS) code |
84733080 |
