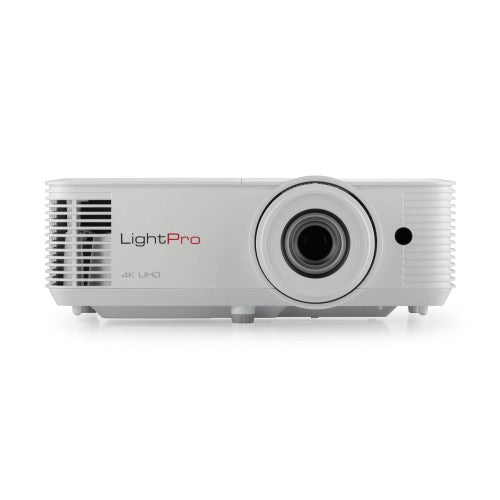

INFOCUS, MULTIMEDIA PROJECTOR, P134, ORBITAL, 4K, IN0061SL
Key Features
- 4X More Details Than Full HD - 4K UHD resolution delivers sharper, true-to-life images and richer colours - for a more immersive viewing experience. The Orbital True 4K UHD projector uses DLP® technology pioneered by Texas Instruments. It provides Consumer Technology Association (CTA)® approved True 4K UHD resolution, capable of projecting 8.3 million active pixels on-screen. That's four times more detail than Full HD 1080p and more than two times the detail of LCD 4K Pro UHD technology
- Gaming Level Performance That Thrills - The Orbital supports 1080p 240Hz with an ultra-low input lag of 4.2ms, allowing gamers to experience exceptionally fluid gameplay with high-quality graphics and rapid response times. It delivers an edge in every match, transforming any space into the ultimate gaming arena
- Effortless Device Switching with Dual HDMI and Smart Ready - Easily connect to your laptop, PC, games console, set-top box, Blu-ray player, or media streamer, in educational settings, corporate environments, and at home with a single HDMI cable. Go smart by connecting an HDMI dongle like the Google Chromecast™, Amazon Fire TV, Apple TV™ or Roku® stick
- DLP 4K UHD with XPR technology - An advanced single-chip Digital Micro Mirror (DMD) DLP design capable of generating 8.3 million on-screen pixels for impeccable precision and detail at four times the resolution of Full HD 1080p
- Four Corner Adjustment for A Perfectly Aligned Image - Orbital True 4KUHD is equipped with four corner corrections that enable the projector's keystone to be adjusted on both the vertical and horizontal plane, You can digitally adjust each corner of the projected image to make it perfectly square. It is ideal for uneven walls or spaces or where the projector installation is at an angle due to limited space
- High Contrast Ratio - 1000000:1 Contrast Ratio uncover details that were always there but hard to see
- HDR and HLG compatible - See more details and texture with greater depth for more immersive viewing
- USB-A Power for Devices - Directly powers HDMI devices like Google Chromecast or a wireless dongle for streamlined setup
- ISF Modes - Save your calibrated day and night mode settings for the highest possible viewing experience
- Outstanding Optical Performance - Unlike many other 4K UHD models that rely on a standard 1.1:1 zoom lens, the Orbital sets itself apart with its high light transmissive 1.3:1 zoom lens. This innovative design provides users with impressive three-times placement flexibility, unlocking a world of possibilities for your viewing experience and creating the perfect environment for any setup
Description
Elevate classrooms, meeting spaces, and fixed installations with high bright, razor-sharp True 4K UHD resolution, and reliable performance with InFocus LightPro Orbital True 4K UHD projector.
Orbital delivers bright and clear images in classrooms, ensuring students see better and stay focused. In meeting spaces, it helps businesses deliver impressive presentations with sharp visuals. For fixed installations, the Orbital offers long-lasting quality and reliability. Orbital is an excellent choice for anyone who needs high-quality visuals in their work or learning environment.
Specifications
| Projector |
|---|
| Projector native resolution |
UHD 4K (3840x2160) |
| Native aspect ratio |
16:9 |
| Supported aspect ratios |
4:3, 16:10, 16:9 |
| Projection distance |
39.4 - 318.9" (1 - 8.1 m) |
| Contrast ratio (typical) |
30000:1 |
| Vertical synchronization (min) |
0.024 kHz |
| Vertical synchronization (max) |
0.24 kHz |
| Uniformity |
80% |
| Matrix type |
DMD |
| Matrix size |
0.47" |
| Keystone correction, vertical |
± 30° |
| Keystone correction, horizontal |
± 30° |
| Horizontal synchronization (min) |
15 kHz |
| Horizontal synchronization (max) |
150 kHz |
| Projection technology |
DLP |
| Projector brightness |
4000 ANSI lumens |
| Smart projector |
No |
| Light source |
|---|
| Light source type |
Lamp |
| Service life of light source |
15000 h |
| Lamp type |
UHP |
| Lamp power |
240 W |
| Service life of light source (economic mode) |
10000 h |
| Lens system |
|---|
| Zoom ratio |
1.3:1 |
| Zoom capability |
Yes |
| Focus |
Manual |
| Focal length range |
12.81 - 16.74 mm |
| Throw ratio |
1.21 - 1.59:1 |
| Offset |
115% |
| F-number (relative aperture) |
2.43 |
| Zoom type |
Manual |
| Video |
|---|
| Analog signal format system |
NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM |
| Full HD |
No |
| 3D |
Yes |
| Supported graphics resolutions |
1920 x 1200 (WUXGA) |
| Ports & interfaces |
|---|
| PC in (D-Sub) |
Yes |
| VGA (D-Sub) ports quantity |
2 |
| HDMI ports quantity |
2 |
| Composite video in |
0 |
| Audio (L/R) in |
1 |
| Audio (L/R) out |
1 |
| S-Video inputs quantity |
1 |
| Serial interface type |
RS-232 |
| HDMI version |
2.0 |
| DVI port |
No |
| Component video (YPbPr/YCbCr) in |
0 |
| AC (power) in |
Yes |
| S/PDIF out port |
Yes |
| Service port type |
USB Type-A |
| Network |
|---|
| Smart TV |
No |
| Ethernet LAN |
No |
| Wi-Fi |
No |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| Interactive |
No |
| Noise level |
27 dB |
| Certification |
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
WEEE, EU RoHS, China RoHS, CEL, CECP |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
1 |
| RMS rated power |
10 W |
| Design |
|---|
| Market positioning |
Presentation |
| Product type |
Standard throw projector |
| Cable lock slot type |
Kensington |
| Product colour |
White |
| Cable lock slot |
Yes |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (max) |
300 W |
| Power source |
AC |
| Power consumption (typical) |
210 W |
| Power consumption (standby) |
0.5 W |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 80% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating altitude |
0 - 120000" (0 - 3048 m) |
| Weight & dimensions |
|---|
| Package width |
15.7" (400 mm) |
| Package depth |
13.3" (337 mm) |
| Package height |
6.61" (168 mm) |
| Weight |
7.05 lbs (3.2 kg) |
| Width |
12.3" (313 mm) |
| Depth |
9.29" (236 mm) |
| Height |
3.8" (96.4 mm) |
| Package weight |
9.7 lbs (4.4 kg) |
| Packaging content |
|---|
| Remote control included |
Yes |
| Remote control type |
IR |
| Manual |
Yes |
| Batteries included |
No |
| Other features |
|---|
| F-number (relative aperture) |
2.43 |
