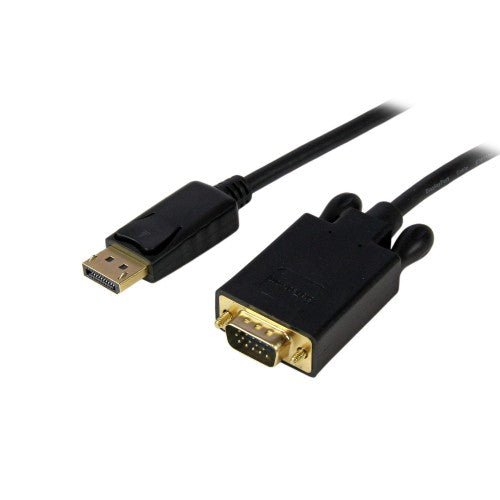

StarTech.com 6ft (1.8m) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cable - DP 1.2 to VGA Converter - Latching DP Connector (DP2VGAMM6B)
Key Features
- DISPLAYPORT TO VGA CABLE: 6ft (1.8m) DisplayPort 1.2 (HBR2) adapter cable lets you connect a single VGA display supporting 2048x1280, 1920x1200 & 1920x1080 (1080p) at 60Hz; EDID & DDC pass-through ensure compatibility between source & display
- COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- INTEGRATED DISPLAY CABLE: Adapter cable has a slim & flexible design w/ adapter chip built into VGA connector reducing clutter & providing a tidy install at your desk workstation in the office or home office

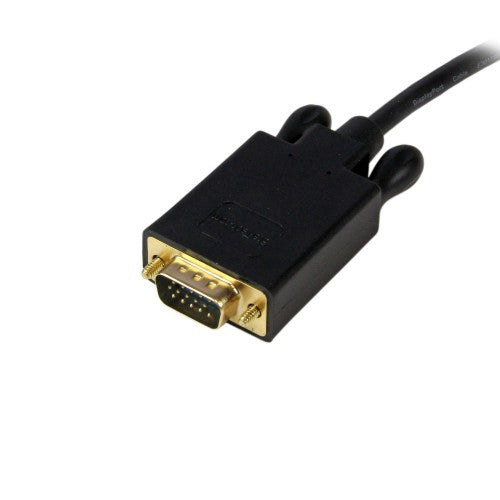

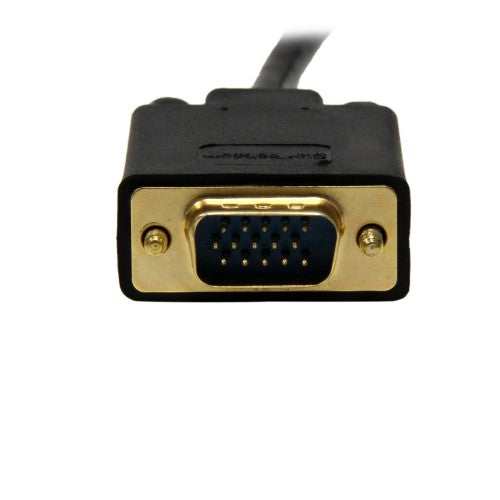

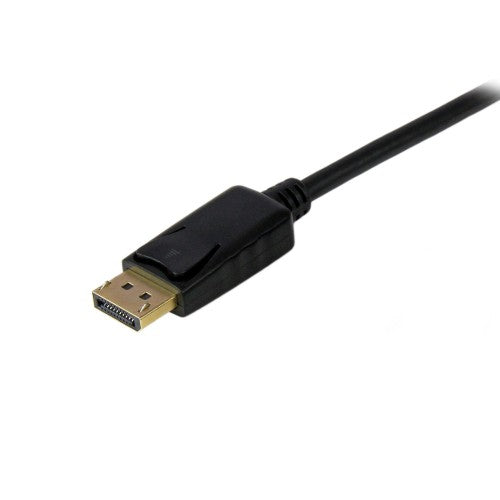

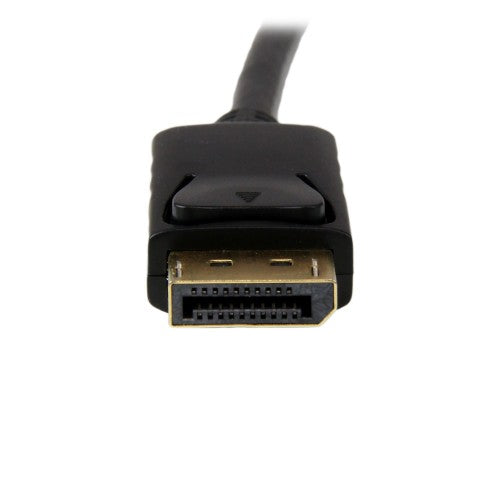

- LATCHING DISPLAYPORT & SCREW LOCKING VGA: Latching DP connector ensures a solid host connection, and chip built into VGA connector minimizes signal loss / Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection
- EASY TO USE: With no software or drivers required, the DP to VGA video converter cable/cord works with any OS including macOS, Windows & Ubuntu / DP Source to VGA Monitor/Display/Projector/ DisplayPort Male to VGA Male Cable
Description
Connect a DisplayPort-equipped PC to a VGA monitor/projector, with a 6ft cable
The DP2VGAMM6B 6ft active DisplayPort to VGA converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a VGA monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new DisplayPort computer to work with an older VGA monitor or projector.
Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.
The DP2VGAMM6B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Converter type |
Active video converter |
| Chipset |
Analogix - 9832 |
| DisplayPort version |
1.2 |
| Product colour |
Black |
| Cable length |
70.9" (1.8 m) |
| Connector 1 |
DisplayPort |
| Connector 2 |
VGA (D-Sub) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Maximum resolution |
2048 x 1280 pixels |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280 |
| Supported video modes |
1080p |
| Plug and Play |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
60 Hz |
| HBR2 support |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
40 - 85% |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Other features |
|---|
| Width |
1.38" (35 mm) |
| Height |
0.591" (15 mm) |
| Depth |
72.4" (1840 mm) |
| Weight & dimensions |
|---|
| Width |
1.38" (35 mm) |
| Height |
0.591" (15 mm) |
| Depth |
72.4" (1840 mm) |
| Weight |
3.66 oz (103.7 g) |
| Package width |
7.68" (195 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.787" (20 mm) |
| Package weight |
4.52 oz (128 g) |
| Packaging data |
|---|
| Package width |
7.68" (195 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.787" (20 mm) |
| Package weight |
4.52 oz (128 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Master (outer) case width |
16.5" (420 mm) |
| Master (outer) case length |
16.3" (415 mm) |
| Master (outer) case height |
17.1" (435 mm) |
| Products per master (outer) case |
120 pc(s) |
| Harmonized System (HS) code |
84733080 |
