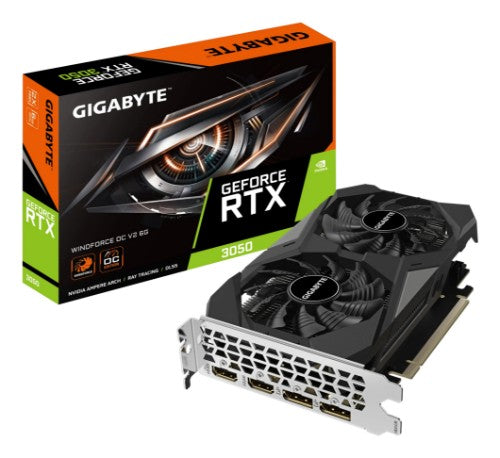

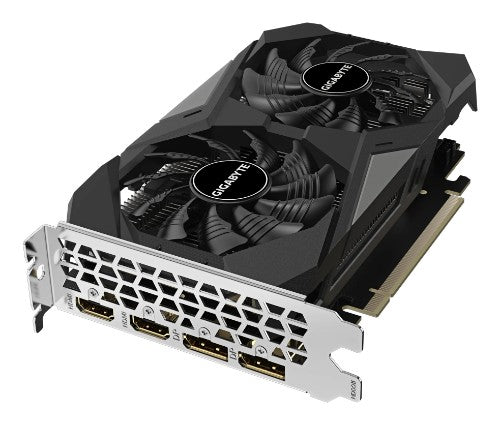

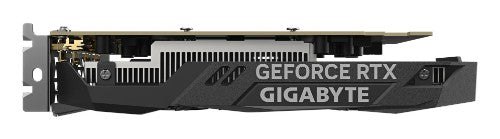

GIGABYTE GeForce RTX 3050 WINDFORCE OC V2 6G NVIDIA 6 GB GDDR6

GeForce RTX 3050, 1477 MHz, 6 GB GDDR6, 96 bit, 14000 MHz, PCI-E 4.0, 2x HDMI, 2x DP, DirectX 12 Ultimate

Description

KEY FEATURE
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3050
Integrated with 6GB GDDR6 96-bit memory interface

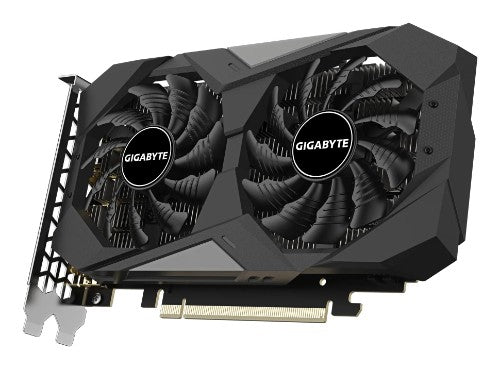

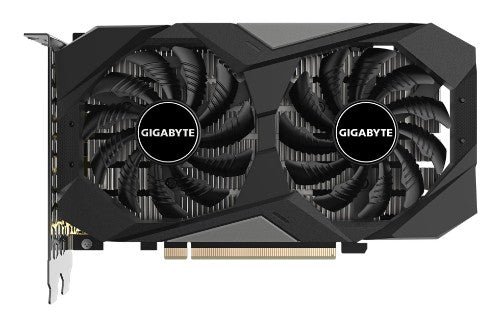

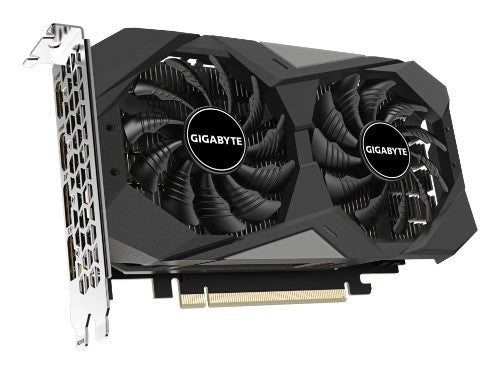

WINDFORCE cooling system

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two unique blade fans, alternate spinning and 3D active fan, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ULTRA DURABLE
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications

Processor
Graphics processor family	NVIDIA
Processor frequency	1477 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	2304
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 3050
Memory
Discrete graphics card memory	6 GB
Memory clock speed	14000 MHz
Memory bus	96 bit
Graphics card memory type	GDDR6

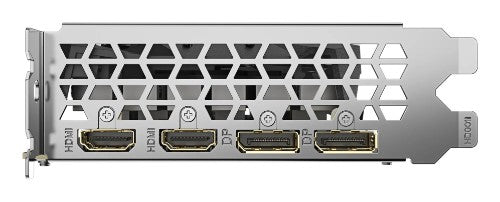

Ports & interfaces
HDMI version	2.1
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	2
DisplayPort version	1.4
DisplayPorts quantity	2
DVI-I ports quantity	0
DVI-D ports quantity	0
Interface type	PCI Express 4.0
Thunderbolt 3 ports quantity	0
Video
DirectX version	12 Ultimate
OpenGL version	4.6
HDMI version	2.1
CUDA cores	2304
Performance
NVIDIA G-SYNC	Yes
DirectX version	12 Ultimate
OpenGL version	4.6
TV tuner integrated	No
Design
Number of fans	2 fan(s)
Cooling type	Active
Form factor	Full-Height/Half-Length (FH/HL)
Product colour	Black, Silver
Cooling technology	GIGABYTE WINDFORCE 2X
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Power
Minimum system power supply	300 W
Technical details
Cooling type	Active
Form factor	Full-Height/Half-Length (FH/HL)
Product colour	Black, Silver
TV tuner integrated	No
System requirements
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Minimum system power supply	300 W
Weight & dimensions
Height	1.42" (36 mm)
Depth	4.37" (111 mm)
Length	7.52" (191 mm)
Packaging data
Package type	Box
User guide	Yes
Packaging content
User guide	Yes
