Intel Celeron 7305, 2 x SO-DIMM DDR5-5200 max 64GB, 1 x 2.5" SSD/HDD, 2 x M.2-2280, Intel UHD Graphics, 2 x LAN (1 x 2.5Gbit, 1 x 1Gbit), 90W
Key Features
- Fanless 1.3L-PC supports 24/7 operating

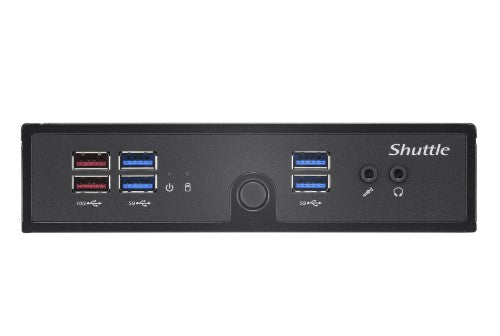

- Dual LAN (1x 2.5Gbit , 1x 1Gbit) , 1x COM (RS232) , VESA

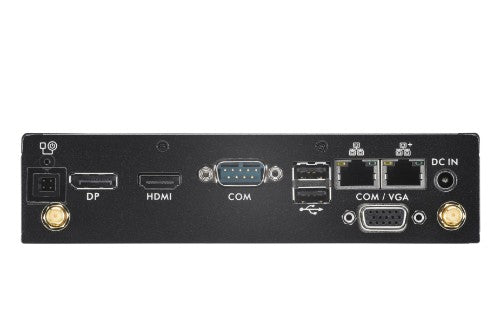

- HDMI, Display Port and VGA
Description

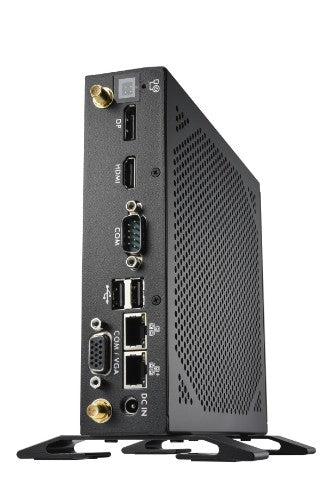

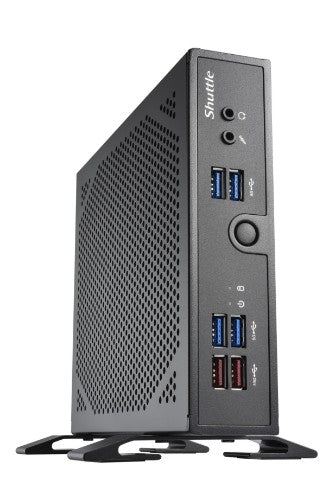

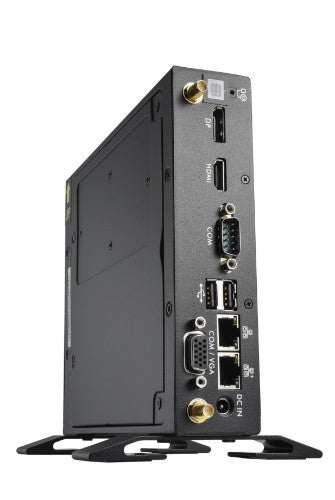

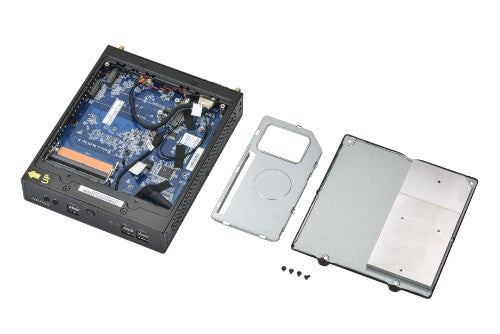

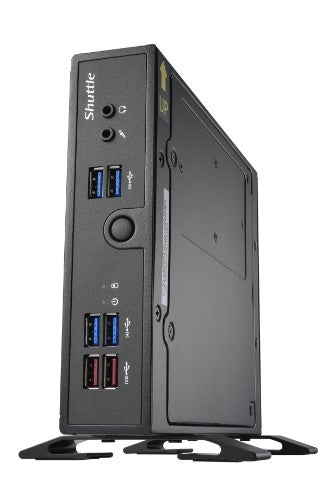

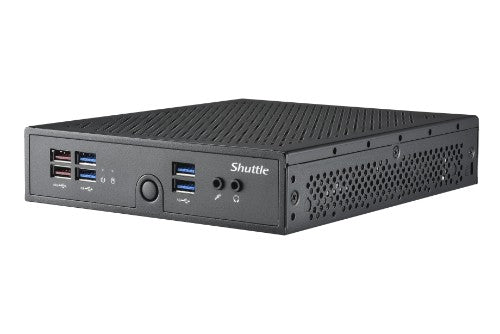

Fanless Slim PC with integrated ULV processor in industrial designThe DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards.
Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.
Specifications
| Motherboard |
|---|
| Number of processors supported |
1 |
| Processor |
|---|
| Built-in processor |
Yes |
| Processor model |
7305 |
| Processor threads |
5 |
| Processor cores |
5 |
| Processor family |
Intel® Celeron® |
| Number of processors supported |
1 |
| Processor manufacturer |
Intel |
| ECC supported by processor |
No |
| Performance cores |
1 |
| Efficient cores |
4 |
| Memory |
|---|
| Memory voltage |
1.1 V |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Memory channels |
Dual-channel |
| Supported memory types |
DDR5-SDRAM |
| Supported memory clock speeds |
5200 MHz |
| Maximum internal memory |
64 GB |
| Video |
|---|
| On-board graphics card |
Yes |
| Graphics card family |
Intel |
| Storage |
|---|
| Supported storage drive types |
HDD & SSD |
| Storage drive sizes supported |
2.5,M.2 |
| Storage drive interface |
PCI Express, Serial ATA III |
| Number of storage drives supported |
3 |
| NVMe |
Yes |
| Graphics |
|---|
| On-board graphics card |
Yes |
| Graphics card family |
Intel |
| On-board graphics card model |
Intel® UHD Graphics |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Audio chip |
RealTek ALC888S |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| LAN controller |
Intel® I219, Intel I226-LM |
| Ports & interfaces |
|---|
| DisplayPort version |
1.4 |
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| HDMI version |
2.0b |
| DisplayPorts quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| Serial ports quantity |
1 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Design |
|---|
| VESA mounting |
Yes |
| Product type |
Mini PC barebone |
| Housing material |
Steel |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| On/off switch |
Yes |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| LED indicators |
HDD, Power |
| Cooling type |
Passive |
| Product colour |
Black |
| Chassis type |
1.3L sized PC |
| Performance |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Linux operating systems supported |
Yes |
| BIOS type |
UEFI AMI |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Operating system installed |
No |
| Number of processors supported |
1 |
| Audio chip |
RealTek ALC888S |
| Harmonized System (HS) code |
84733080 |
| Colour |
|---|
| Product colour |
Black |
| Technical details |
|---|
| BIOS type |
UEFI AMI |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Quick start guide |
Yes |
| Processor cores |
5 |
| Cooling type |
Passive |
| Chassis type |
1.3L sized PC |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, ErP |
| Compliance certificates |
BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus |
| Packaging data |
|---|
| Power cord included |
Yes |
| AC adapter included |
Yes |
| Package weight |
5.07 lbs (2.3 kg) |
| Indication |
|---|
| LED indicators |
HDD, Power |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Linux operating systems supported |
Yes |
| Operating system installed |
No |
| Management features |
|---|
| On/off switch |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, ErP |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| AC adapter output voltage |
19 V |
| AC adapter output current |
1.6 A |
| Power supply type |
External AC adapter |
| Power supply |
90 W |
| Number of power supply units |
1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
7.87" (200 mm) |
| Depth |
6.5" (165 mm) |
| Height |
1.56" (39.5 mm) |
| Package weight |
5.07 lbs (2.3 kg) |
| Weight |
3.53 lbs (1.6 kg) |
| Packaging content |
|---|
| Power cord included |
Yes |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Other features |
|---|
| Chassis type |
1.3L sized PC |
