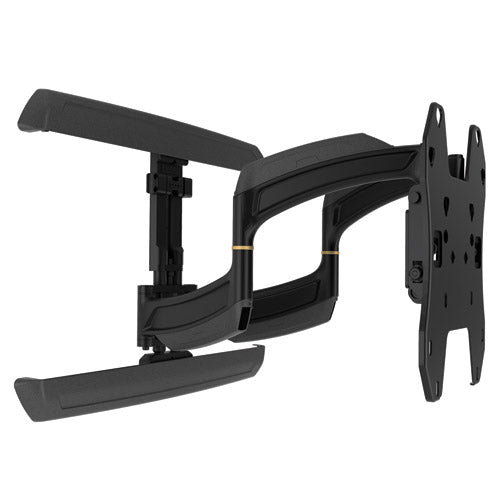

TS318TU, Medium THINSTALL Dual Swing Arm Wall Mount - 18" Extension
Description
A lightweight, low-profile full-motion wall mount for TVs 26-52”. Easily installs with one person by mounting the top rail and sliding on the assembly.
Features- Ultra Low Profile Sleek design collapses to 1.3” (33 mm), providingan ultra-low profile for all types of TVs, including LED, LCD and Plasma.
- Extends up to 18” (457 mm) Full extension maximizes viewing potential.
- Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles.
- Centerless™ Lateral Shift Post-installation lateral shift allows up to 16”(406 mm) of adjustment for limitless centering capability.
- Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation.
- Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Minimum screen size |
26" |
| Panel mounting interface |
100 x 100,200 x 200,600 x 400 |
| Minimum VESA mount |
3.94 x 3.94" (100 x 100 mm) |
| Maximum VESA mount |
23.6 x 15.7" (600 x 400 mm) |
| Maximum screen size |
52" |
| Maximum weight capacity |
75 lbs (34 kg) |
| Ergonomics |
|---|
| Tilt angle range |
15 - -15° |
| Swivel angle range |
-90 - 90° |
| Distance to the wall (min) |
5" (12.7 cm) |
| Distance to the wall (max) |
18.2" (46.2 cm) |
| Technical details |
|---|
| Quantity |
1 |
| Distance to the wall (min) |
5" (12.7 cm) |
| Distance to the wall (max) |
18.2" (46.2 cm) |
| Product colour |
Black |
| Mounting type |
Wall |
| Design |
|---|
| Certification |
UL |
| Product colour |
Black |
| Housing material |
Metal |
| Certificates |
|---|
| Certification |
UL |
| Packaging content |
|---|
| Manual |
Yes |
| Weight & dimensions |
|---|
| Width |
22.6" (574 mm) |
| Depth |
1.3" (33 mm) |
| Height |
17.2" (437 mm) |
| Packaging data |
|---|
| Manual |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
| Other features |
|---|
| Mounting type |
Wall |
| Quantity |
1 |
| Screen size compatibility |
26 - 52" |
