650VA, 390W, 8 x NEMA 5-15R Out, NEMA 5-15P In, USB, RJ11 Protection
Description

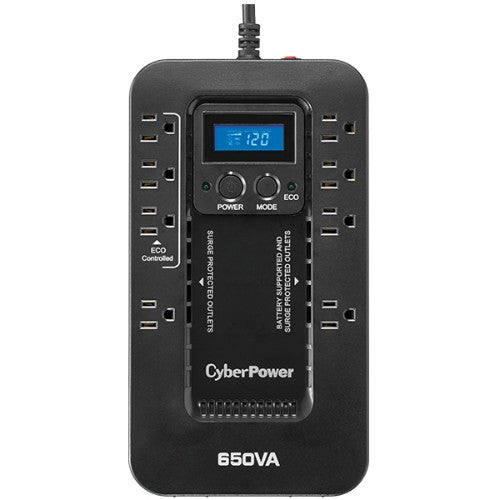

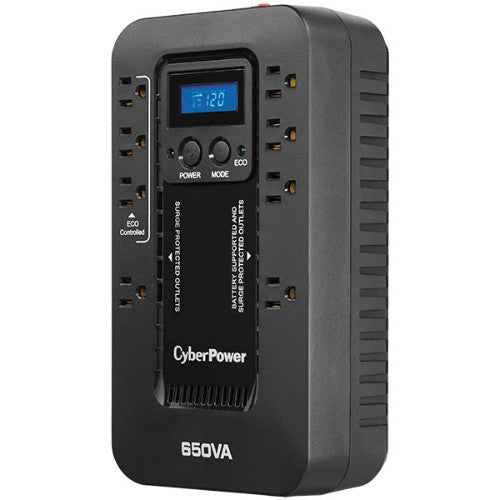

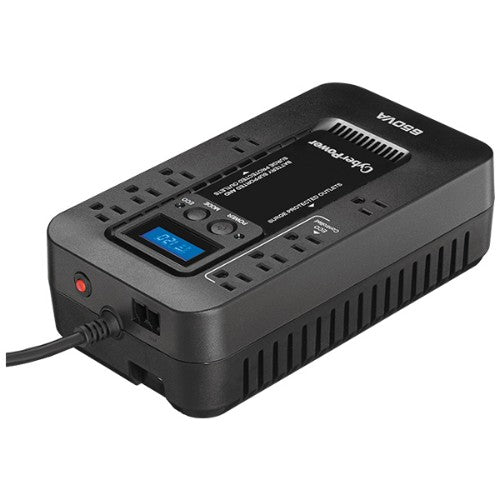

The CyberPower ECO Series EC650LCD uninterruptible power supply (UPS) safeguards PCs and other electronics (monitors, cable DSL/ modems, VoIP routers, and home theater devices) from blackouts, brownouts, surges, spikes, sags, and other power abnormalities. Its composite integrated circuitry offers advanced lightning protection. Patented GreenPower UPS advanced circuitry reduces UPS energy costs and is an ENERGY STAR listed product. The multifunction diagnostic LCD provides users the ability to check UPS operating status and assist in trouble-shooting power anomalies.
The CyberPower EC650LCD has three surge protected ECO outlets. When ECO mode is on and the battery backup detects that your computer is off (or in Sleep mode), computer peripherals connected to the ECO outlets will be turned off (USB connection required). This provides additional reductions in power usage and greater energy savings.
The EC650LCD unit has a capacity of 650VA/390Watts, eight (8) NEMA 5-15R receptacles, including, 3 ECO mode outlets, and two (2) widely-spaced outlets to accommodate transformer-based plugs. Its compact design allows for horizontal or vertical placement, or it can be mounted on a wall. This UPS has a 12-volt maintenance-free sealed lead acid battery. Protection for phone/network (RJ11) is also included. EMI/RFI filters increase the immunity of the load to disturbances and surges.
A HID compliant USB port provides connectivity to the EC650LCD. PowerPanel Personal Edition UPS Management software is included to monitor the vitals of the UPS and will safely shutdown the system in case of a power outage.
A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $100,000 Connected Equipment Guarantee.
Specifications
| Power |
|---|
| Output power |
390 W |
| Input operation voltage (min) |
96 V |
| Input operation voltage (max) |
140 V |
| Surge energy rating |
526 J |
| Output power capacity |
0.65 kVA |
| Input frequency |
47/63 Hz |
| Ports & interfaces |
|---|
| Cable length |
59.1" (1.5 m) |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
NEMA 5–15R |
| Power plug |
NEMA 5-15R |
| USB 2.0 ports quantity |
1 |
| Modem (RJ-11) ports |
2 |
| Performance |
|---|
| UPS topology |
Standby (Offline) |
| Waveform |
Sine |
| LED indicators |
Yes |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Surge protection features |
Modem, Telephone |
| Power protection features |
Overload |
| Audible alarm(s) |
Yes |
| Features |
|---|
| UPS topology |
Standby (Offline) |
| Waveform |
Sine |
| Output power |
390 W |
| Input operation voltage (min) |
96 V |
| Input operation voltage (max) |
140 V |
| Surge energy rating |
526 J |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Surge protection features |
Modem, Telephone |
| Power protection features |
Overload |
| Audible alarm(s) |
Yes |
| Output power capacity |
0.65 kVA |
| Input frequency |
47/63 Hz |
| Battery |
|---|
| Battery voltage |
12 V |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
8 h |
| Typical backup time at half load |
10.7 min |
| Typical backup time at full load |
2.8 min |
| Design |
|---|
| Form factor |
Compact |
| LED indicators |
Yes |
| Product colour |
Black |
| Certification |
UL1778, cUL 107.3, FCC |
| Cable length |
59.1" (1.5 m) |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
RoHS |
| Packaging data |
|---|
| Package dimensions (WxDxH) |
13.2 x 8.1 x 4.3" (335.3 x 205.7 x 109.2 mm) |
| Bundled software |
PowerPanel |
| Package weight |
6.5 lbs (2.95 kg) |
| Certificates |
|---|
| Certification |
UL1778, cUL 107.3, FCC |
| Compliance certificates |
RoHS |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
|---|
| Weight |
6.39 lbs (2.9 kg) |
| Width |
10.6" (269.2 mm) |
| Package weight |
6.5 lbs (2.95 kg) |
| Height |
3.1" (78.7 mm) |
| Depth |
5.9" (149.9 mm) |
| Other features |
|---|
| Package dimensions (WxDxH) |
13.2 x 8.1 x 4.3" (335.3 x 205.7 x 109.2 mm) |
| Nominal output voltage |
120 V |
| Packaging content |
|---|
| Bundled software |
PowerPanel |
