550VA, 330W, 2min Full Load, 8x NEMA 5-15R
Description

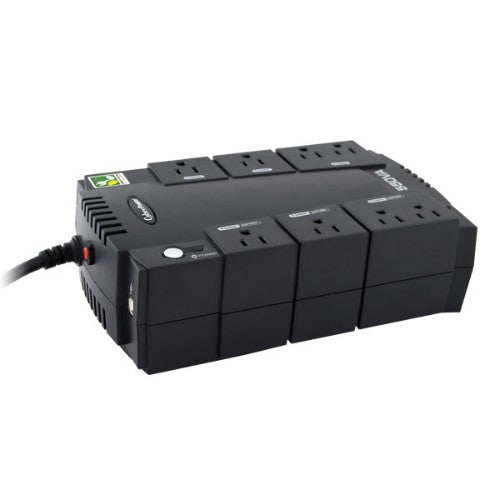

The CyberPower Standby CP550SLG uninterruptible power supply (UPS) safeguards a home office PC and other electronics (monitors, printers, scanners, speakers, fax machines, CD/DVD players and iPods) from surges, spikes, sags, brownouts and other power abnormalities. Its composite integrated circuitry offers advanced lightning protection. Patented GreenPower UPS™ advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models.

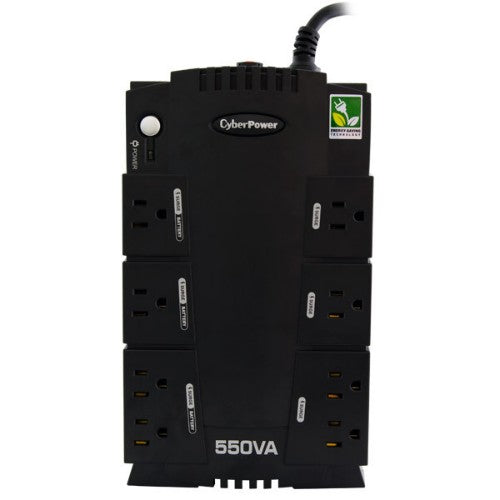

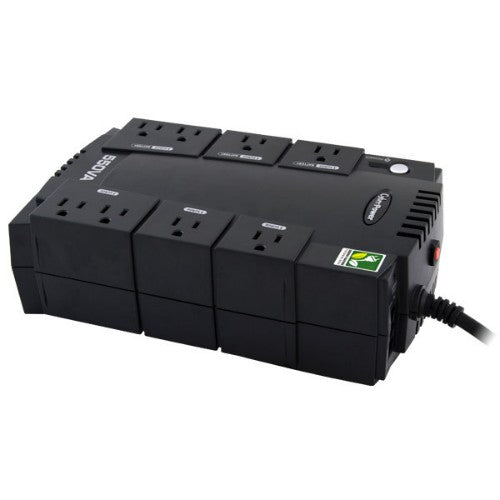

The CP550SLG unit has a capacity of 550VA/330Watts, eight (8) NEMA 5-15R receptacles, widely-spaced to accommodate transformer-based plugs. Its compact design allows for horizontal or vertical placement, or it can be conveniently mounted on a wall. This UPS has a maintenance-free, 12V/4.5Ah battery and offers connectivity via one (1) HID USB port. Protection for phone/network (RJ11) is also included. EMI/RFI filters increase the immunity of the load to disturbances and surges. PowerPanel® Personal Edition UPS Management software is included to monitor the vitals of the UPS and will safely shutdown the system in case of a power outage.
A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $100,000 Connected Equipment Guarantee.
- 550VA / 330W Simulated sine wave UPS
- Standby Topology
- GreenPower UPS™
- Full-time Surge Protection and Battery Backup
- Compact Desktop Form Factor

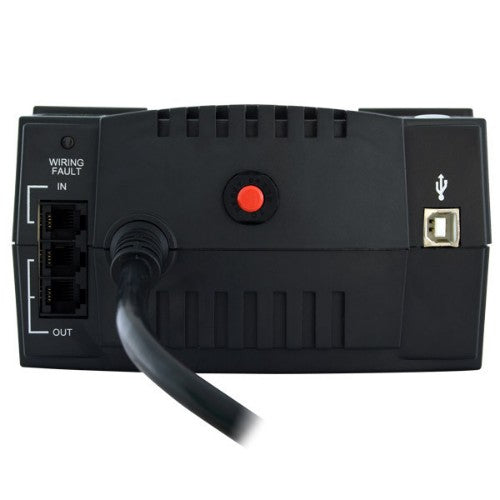

- RJ11 Protection (1-in / 2 Out)
- 8 Outlets / USB port
- EMI/RFI filters
- PowerPanel® Personal Edition
Specifications
| Power |
|---|
| Output power |
330 W |
| Surge energy rating |
890 J |
| Output power capacity |
0.55 kVA |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Cable length |
59.8" (1.52 m) |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
NEMA 5–15R |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
0 |
| Modem (RJ-11) ports |
1 |
| Ethernet LAN (RJ-45) ports |
0 |
| Battery |
|---|
| Battery type |
12V/5.5AH |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
8 h |
| Typical backup time at half load |
8 min |
| Typical backup time at full load |
2 min |
| Hot-swap battery |
No |
| Performance |
|---|
| UPS topology |
Standby (Offline) |
| LED indicators |
Yes |
| Audible alarm(s) |
Yes |
| Features |
|---|
| UPS topology |
Standby (Offline) |
| Output power |
330 W |
| Surge energy rating |
890 J |
| Audible alarm(s) |
Yes |
| Output power capacity |
0.55 kVA |
| Input frequency |
50/60 Hz |
| Design |
|---|
| Form factor |
Compact |
| LED indicators |
Yes |
| Product colour |
Black |
| Certification |
UL1778, cUL 107.3, FCC DOC Class B |
| Cable length |
59.8" (1.52 m) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
UL1778, cUL 107.3, FCC DOC Class B |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Battery type |
12V/5.5AH |
| Nominal output voltage |
110-120 V |
| Nominal input voltage |
96-140 V |
| Weight (imperial) |
6.4 lbs |
| Dimensions (W x D x H) (imperial) |
9.75 x 3 x 6" |
