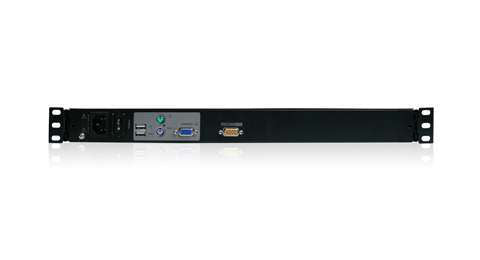

17" LCD Combo Console
Description
IOGEAR's new 17" LCD Combo Console offers a space-saving, streamlined approach to IT environments by integrating a keyboard, 17" TFT LCD active matrix monitor, and touchpad in one unit.
The LCD display is built into the cover; the keyboard and touchpad are built into the base. Setup is fast and easy. There is no software to configure, no installation routines and no incompatibility problems. Slide the console module section out; flip the cover up; and you are ready to go to work. When finished, flip the cover down and slide the console module back into the rack.
For further convenience and flexibility, the LCD drawer also supports an external USB mouse port, and an external console ports (keyboard, monitor, and mouse), which allows a second user to take control of the KVM either remotely or locally. (Remote operation requires additional equipment).
Features
- Integrated KVM console featuring a 17" TFT LCD active matrix monitor , keyboard and touchpad
- 1280 x 1024 resolutionon 19" rack mountLCD provides asharpvideo display
- Adjustable depth to fit different sizes of racks
- Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
- Rack mountable in a 19" (1U) system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
- Fully Supports DDC2B
Specifications
| Display |
|---|
| Display diagonal |
17" |
| Technical details |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Product colour |
Black |
| Ports & interfaces |
|---|
| Interface |
USB |
| Power |
|---|
| AC adapter input voltage |
100~240 V |
| AC adapter frequency |
50/60 Hz |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
30 lbs (13.6 kg) |
| Width |
19" (482 mm) |
| Height |
1.73" (44 mm) |
| Depth |
21" (533 mm) |
