StarTech.com 8 Outlet Horizontal 1U Rack Mount PDU Power Strip for Network Server Racks - Surge Protection - 120V/15A - w/ 6ft Power Cord (RKPW081915)
Description
Protect your equipment while adding eight additional power outlets to your server rack, with this 19in power distribution unit

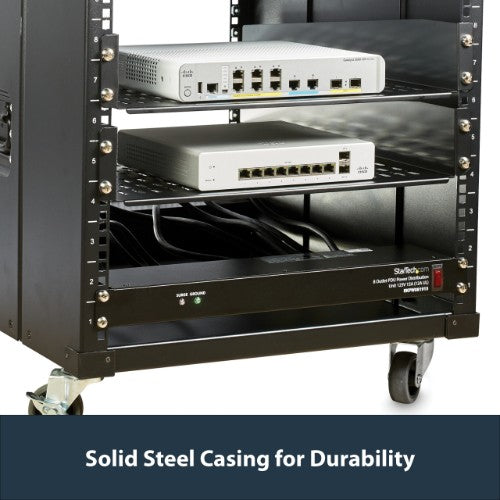

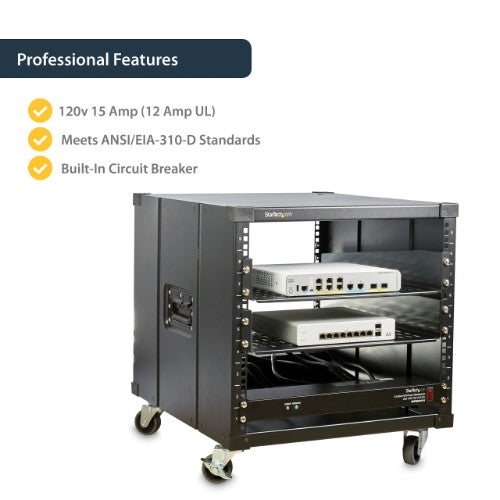

This 8-outlet (120V 15A)(12A UL) Rack PDU delivers a cost-effective power distribution solution for your server rack/cabinet. The 1U PDU can be mounted horizontally in any server rack 4in in depth or greater, to provide eight 120V 15A power ports/outlets, and features a rugged steel casing to ensure maximum durability.

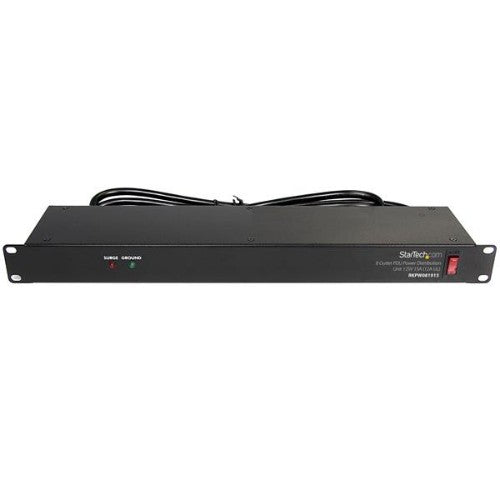

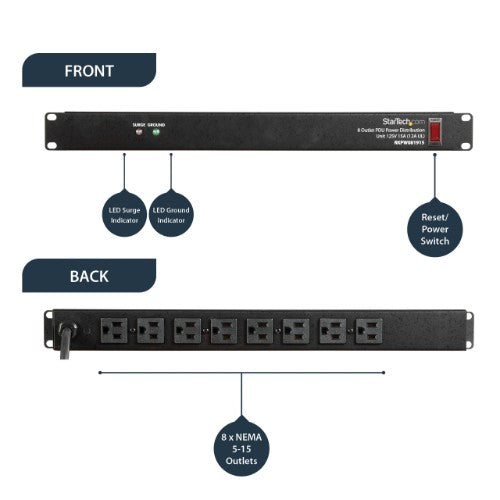

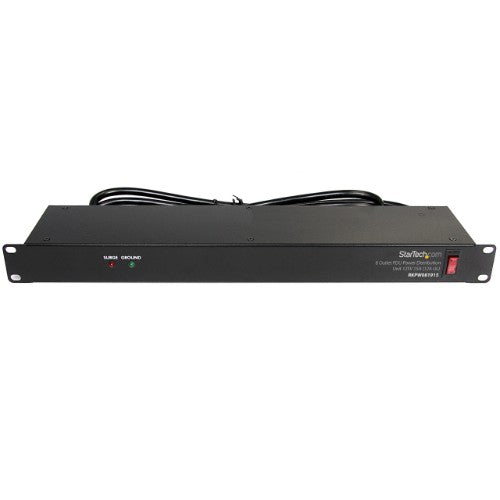

The front of the PDU features two LEDs to indicate proper ground and surge detection while enabling you to control the power state with an illuminated power/reset switch.
To prevent costly breakdowns of connected devices, the rackmount PDU features a built-in circuit breaker and reset switch, ensuring dependable performance of vital equipment.
The StarTech.com Advantage
Specifications
| Design |
|---|
| Mounting |
Horizontal |
| Product colour |
Black |
| Certification |
UL, REACH |
| Rack capacity |
1U |
| Housing material |
Steel |
| Ports & interfaces |
|---|
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
NEMA 5–15 |
| Power plug |
NEMA 5–15 |
| Features |
|---|

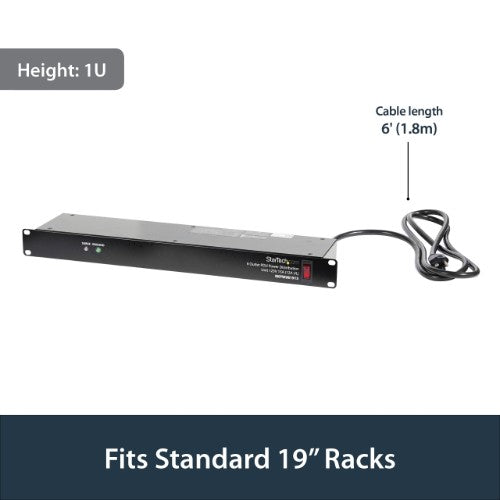

| Cable length |
70.9" (1.8 m) |
| LED indicators |
Yes |
| Certification |
UL, REACH |
| Ergonomics |
|---|
| Cable length |
70.9" (1.8 m) |
| LED indicators |
Yes |
| Power |
|---|
| Surge energy rating |
1800 J |
| Nominal input voltage |
120 V |
| Nominal output voltage |
120 V |
| Output voltage |
125 V |
| Maximum current |
15 A |
| Maximum total current draw per phase |
15 A |
| Load capacity |
1800 VA |
| Certificates |
|---|
| Certification |
UL, REACH |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 45 °C |
| Storage temperature (T-T) |
-25 - 65 °C |
| Weight & dimensions |
|---|
| Weight |
4.19 lbs (1.9 kg) |
| Width |
3.78" (96 mm) |
| Depth |
19" (483 mm) |
| Height |
1.69" (43 mm) |
| Package width |
2.32" (59 mm) |
| Package depth |
18.3" (465 mm) |
| Package height |
8.94" (227 mm) |
| Package weight |
4.85 lbs (2.2 kg) |
| Packaging content |
|---|
| Manual |
Yes |
| Packaging data |
|---|
| Package width |
2.32" (59 mm) |
| Package depth |
18.3" (465 mm) |
| Package height |
8.94" (227 mm) |
| Package weight |
4.85 lbs (2.2 kg) |
| Technical details |
|---|
| Compliance certificates |
RoHS |
