Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters)
Description
Extend an RS232 serial connection up to 1000 meters (3300 feet) using Cat 5 cabling

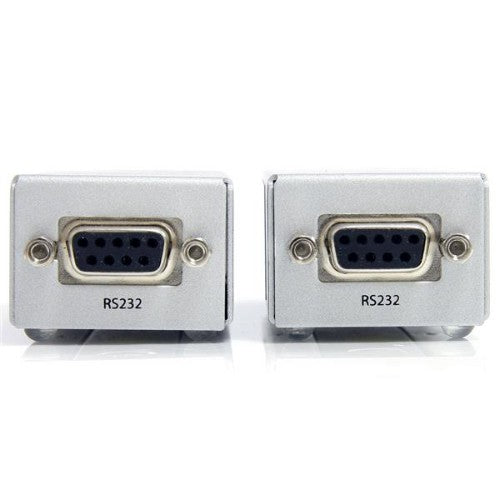

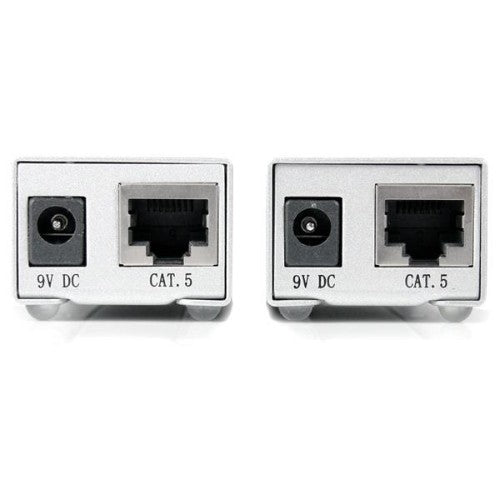

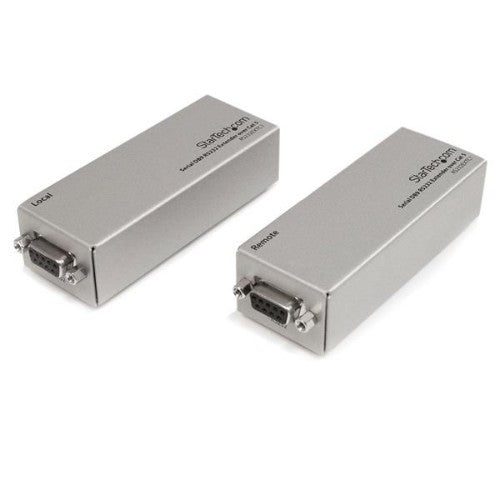

The RS232EXTC1 Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit. The Extender is a cost-effective serial extension solution and completely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling. Perfect for use in industrial monitoring and control, POS, security, medical, and traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Provides you with flexibility when choosing the location of your serial peripherals by dramatically increasing the maximum RS232 serial cable length
- Pure hardware design, no software or drivers required ensuring a simple plug and play installation
- Enables use of separate control rooms away from harsh environmental conditions where serial devices may be located
Specifications
| Performance |
|---|
| Type |
Network receiver |
| Maximum transfer distance |
39370.1" (1000 m) |
| Cable types supported |
Cat5 |
| Network |
|---|
| Cabling technology |
10/100Base-T(X) |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| Design |
|---|
| Product colour |
Silver |
| Power |
|---|
| Input current |
0.055 A |
| Output voltage |
9 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
0 - 85 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Weight & dimensions |
|---|
| Width |
1.34" (34 mm) |
| Depth |
3.62" (92 mm) |
| Height |
0.866" (22 mm) |
| Weight |
2.29 oz (65 g) |
| Packaging data |
|---|
| Package width |
2.24" (57 mm) |
| Package depth |
12.4" (315 mm) |
| Package height |
5.43" (138 mm) |
| Technical details |
|---|
| Type |
Network receiver |
| Maximum transfer distance |
39370.1" (1000 m) |
| Cable types supported |
Cat5 |
| Compliance certificates |
RoHS |
| Colour |
|---|
| Product colour |
Silver |
| Certificates |
|---|
| Compliance certificates |
RoHS |
