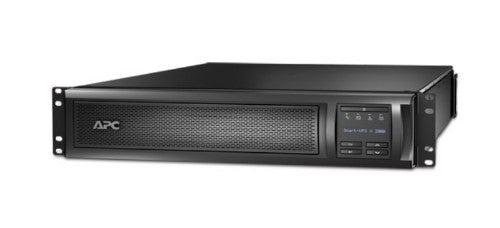

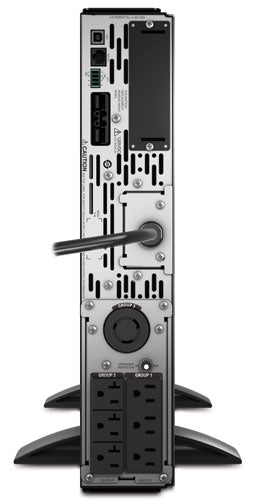

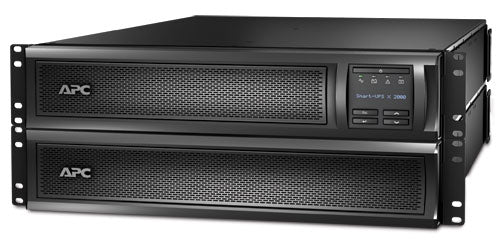

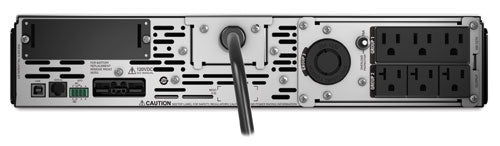

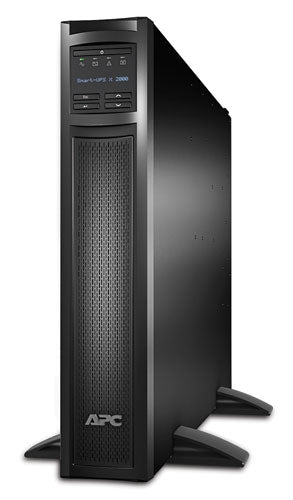

APC SMX2000LVNC, 1.92 kVA, 1800 W, Sine, 70 V, 154 V, 50/60 Hz
Description
APC SMX2000LVNC. Output power capacity: 1.92 kVA, Output power: 1800 W, Waveform: Sine. AC outlet types: NEMA 5–15R, NEMA 5–20R, NEMA L5-20R, Power plug: NEMA 5-20P, AC outlets quantity: 7 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 3 h. Form factor: Rackmount/Tower, Product color: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: UL 1449 BSMI, CSA, EN 50091-2, EN 55022 Class A, FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI...
Specifications
| Power |
|---|
| Output power |
1800 W |
| Input operation voltage (min) |
70 V |
| Input operation voltage (max) |
154 V |
| Surge energy rating |
540 J |
| Efficiency |
97.6% |
| Emergency Power Off (EPO) |
Yes |
| Output power capacity |
1.92 kVA |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Cable length |
96.1" (2.44 m) |
| AC outlets quantity |
7 AC outlet(s) |
| AC outlet types |
NEMA 5–15R, NEMA 5–20R, NEMA L5-20R |
| Power plug |
NEMA 5-20P |
| USB 2.0 ports quantity |
1 |
| Performance |
|---|
| Waveform |
Sine |
| LED indicators |
Yes |
| Noise level |
55 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Waveform |
Sine |
| Output power |
1800 W |
| Input operation voltage (min) |
70 V |
| Input operation voltage (max) |
154 V |
| Surge energy rating |
540 J |
| Efficiency |
97.6% |
| Emergency Power Off (EPO) |
Yes |
| Noise level |
55 dB |
| Audible alarm(s) |
Yes |
| Output power capacity |
1.92 kVA |
| Input frequency |
50/60 Hz |
| Battery |
|---|
| Number of batteries supported |
1 |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
3 h |
| Design |
|---|
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| LED indicators |
Yes |
| Product colour |
Black |
| Certification |
UL 1449
BSMI, CSA, EN 50091-2, EN 55022 Class A, FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A
REACH |
| Cable length |
96.1" (2.44 m) |
| Display type |
LED |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Packaging data |
|---|
| Package dimensions (WxDxH) |
23.5 x 34.2 x 9.57" (596 x 869 x 243 mm) |
| Package weight |
100.1 lbs (45.4 kg) |
| Certificates |
|---|
| Certification |
UL 1449
BSMI, CSA, EN 50091-2, EN 55022 Class A, FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A
REACH |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
84.9 lbs (38.5 kg) |
| Width |
17" (432 mm) |
| Package weight |
100.1 lbs (45.4 kg) |
| Height |
3.35" (85 mm) |
| Depth |
26.3" (667 mm) |
| Other features |
|---|
| Package dimensions (WxDxH) |
23.5 x 34.2 x 9.57" (596 x 869 x 243 mm) |
| Output connection type |
3 x NEMA 5-15R & 3 x NEMA 5-20R & 1 x NEMA L5-20R |
| Nominal output voltage |
120 V |
| Nominal input voltage |
120 V |
