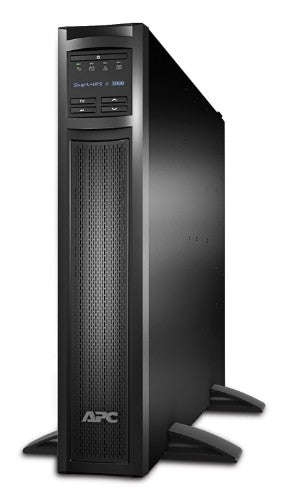

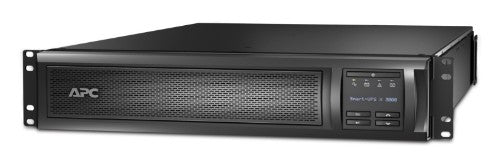

Smart-UPS X 3000VA Rack/Tower LCD 100-127V
Key Features
- User-selectable low voltage setting of 100V-127V

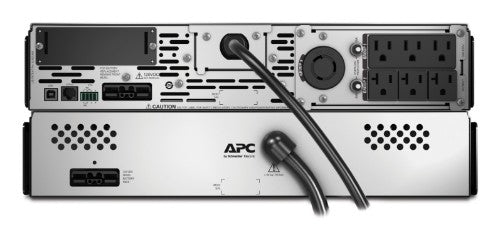

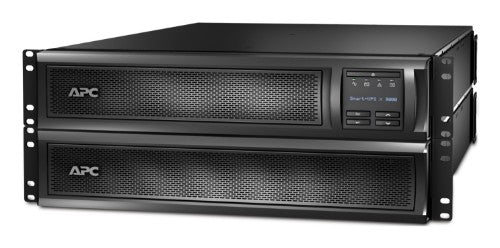

- Add up to 10 external battery packs (SMX120RMBP2U)
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
Description
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

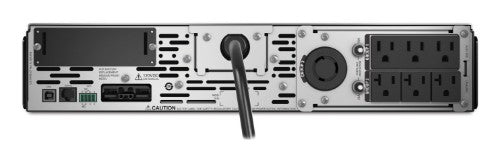

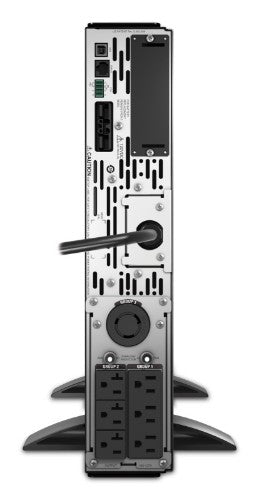

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2880VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power |
2700 W |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
127 V |
| Output operation voltage (min) |
100 V |
| Output operation voltage (max) |
127 V |
| Surge energy rating |
540 J |
| Efficiency |
98% |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Output power capacity |
3 kVA |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Cable length |
94.5" (2.4 m) |
| USB port |
Yes |
| Serial interface |
Yes |
| SmartSlot |
Yes |
| AC outlets quantity |
7 AC outlet(s) |
| AC outlet types |
NEMA 5–15R, NEMA 5–20R, NEMA L5-30R |
| Ethernet LAN (RJ-45) ports |
1 |
| Battery |
|---|
| Battery type |
RBC117 |
| Battery technology |
Lead-Acid |
| Battery recharge time |
3 h |
| Typical backup time at full load |
6.15 min |
| Performance |
|---|
| Audible alarm modes |
Alarm when on battery, Low battery alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Number of output phases |
1 |
| LED indicators |
Yes |
| Surge protection |
Yes |
| Surge protection features |
Network |
| Noise level |
55 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Audible alarm modes |
Alarm when on battery, Low battery alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Number of output phases |
1 |
| Output power |
2700 W |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
127 V |
| Output operation voltage (min) |
100 V |
| Output operation voltage (max) |
127 V |
| Surge energy rating |
540 J |
| Efficiency |
98% |
| Surge protection |
Yes |
| Surge protection features |
Network |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Noise level |
55 dB |
| Audible alarm(s) |
Yes |
| Output power capacity |
3 kVA |
| Input frequency |
50/60 Hz |
| Heat dissipation |
276 BTU/h |
| Design |
|---|
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| LED indicators |
Yes |
| Product colour |
Black |
| Certification |
BSMI,CSA,EN 50091-2,EN 55022 A,FCC 15 A,NOM,TUV,UL 1778,VCCI A |
| Cable length |
94.5" (2.4 m) |
| Control type |
Buttons |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 600000" (0 - 15240 m) |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Harmonized System (HS) code |
8504.40 |
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
BSMI,CSA,EN 50091-2,EN 55022 A,FCC 15 A,NOM,TUV,UL 1778,VCCI A |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Package width |
34.2" (869 mm) |
| Package depth |
23.5" (596 mm) |
| Package height |
9.57" (243 mm) |
| Weight |
84.9 lbs (38.5 kg) |
| Width |
17" (432 mm) |
| Package weight |
100.1 lbs (45.4 kg) |
| Height |
3.35" (85 mm) |
| Depth |
26.3" (667 mm) |
| Packaging data |
|---|
| Package width |
34.2" (869 mm) |
| Package depth |
23.5" (596 mm) |
| Package height |
9.57" (243 mm) |
| Package weight |
100.1 lbs (45.4 kg) |
| Logistics data |
|---|
| Export Control Classification Number (ECCN) |
EAR99 |
| Harmonized System (HS) code |
8504.40 |
| Other features |
|---|
| Battery type |
RBC117 |
