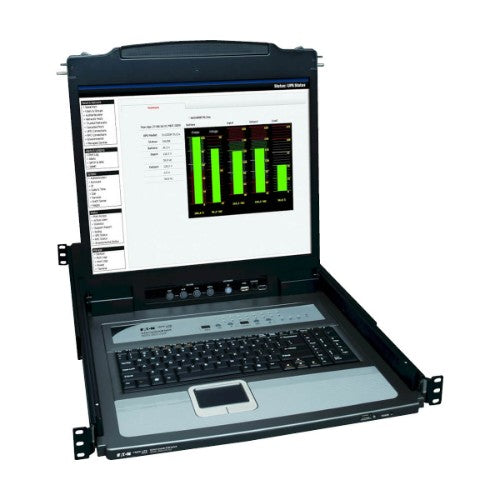

Tripp Lite B020-U16-19-K KVM switch Rack mounting Black

NetDirector 16-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables, TAA

Key Features

• Occupies just 1U of space in a rack-mountable drawer
• 19” LCD screen supports video resolutions up to 1280 x 1024
• Simplifies IT tasks with easy switching between all 16 ports
• Provides 2-level password security (administrator and user)
• Combo cables (included) connect to PS/2 or USB servers

Description

Saves Space and Money
Combines a 16-port KVM switch, 19” LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer
Mounts into 19”-wide rack, 26”-38” deep
Gives you control of up to 16 servers from a single, easily accessible console – ideal when rack space is at a premium
Includes eight P778-Series cables that support computers with either PS/2 or USB connections
Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use
Eliminates need to buy costly separate monitors, keyboards and mice for each computer/server

Simplifies IT Tasks
Switch easily between the 16 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese
Hot pluggable; add or remove computers without having to power down the switch
Auto-scan mode automatically sequences through all active ports that are accessible to the user

Large 19” LCD
Extra-wide display makes multitasking easier
Supports video resolutions up to 1280 x 1024
DDC emulation allows the video settings of each computer to be automatically adjusted for optimal output to the LCD

Multi-Level Password Security
Enhances security by limiting access to an administrator and up to 4 local users
Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed

Future Expandability and Long-Lasting Reliability
Increase the number of connected computers up to 264 by daisy-chaining up to 31 B022-U08 KVM switches
A console cable kit is included so you can connect the external console port to a keyboard, mouse or monitor, or a B051-000 IP Remote Access Unit
An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is also available to share a peripheral such as a flash drive or external hard drive with all the connected servers
Compatible with all major operating systems for easy integration into your existing structure
Firmware is upgradable with included cable and utility
Heavy-duty steel housing stands up to frequent use

Specifications

Ports & interfaces
Number of computers controlled	16
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Cable length	72" (1.83 m)
Performance
Maximum resolution	1280 x 1024 pixels
Technical details
Product colour	Black
Rack mounting	Yes
Weight (imperial)	31.3 lbs
Compliance certificates	RoHS
Design
Product colour	Black
Cable length	72" (1.83 m)
Rack mounting	Yes
Certification	UL, cUL, CE, FCC
Rack capacity	1U
Country of origin	Taiwan
Display
Built-in display	Yes
Display	LCD
Power
Power consumption (typical)	29.1 W
Video
Maximum resolution	1280 x 1024 pixels
Features
Country of origin	Taiwan
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	18.9" (480.1 mm)
Depth	27.1" (689.1 mm)
Height	1.73" (43.9 mm)
Weight	31.1 lbs (14.1 kg)
Package width	32.7" (830.1 mm)
Package depth	26.2" (665.5 mm)
Package height	5.12" (130 mm)
Package weight	43.7 lbs (19.8 kg)
Packaging data
Package width	32.7" (830.1 mm)
Package depth	26.2" (665.5 mm)
Package height	5.12" (130 mm)
Package weight	43.7 lbs (19.8 kg)
Packaging content
Cables included	PS/2, USB
Quick installation guide	Yes
Manual	Yes
Certificates
Certification	UL, cUL, CE, FCC
Other features
Ports quantity	16
Weight (imperial)	31.3 lbs
Logistics data
Country of origin	Taiwan
Master (outer) case width	32.7" (830.1 mm)
Master (outer) case length	26.2" (665.5 mm)
Master (outer) case height	5.12" (130 mm)
Master (outer) case gross weight	43.7 lbs (19.8 kg)
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	8471.80.1000
