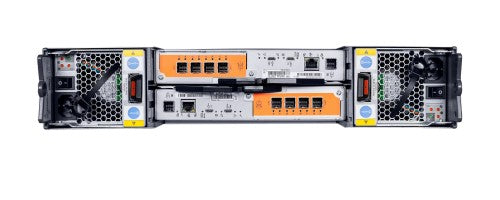

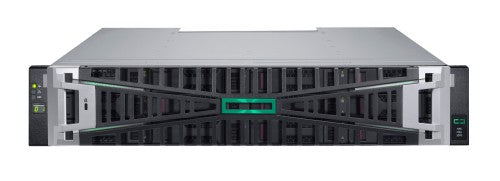

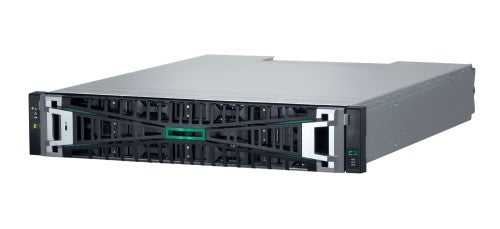

HPE MSA 2070 12Gb SAS LFF Storage, 3.5", Rack (2U)
Key Features
- Next generation HPE MSA Gen7 shared storage portfolio including the HPE MSA 2070, HPE MSA 2070 Flash Bundles, HPE MSA 2072 Hybrid Flash Bundles, and TAA-Compliant HPE MSA 2070 Storage arrays
- Up to 2x more IOPS (random) and 30% more bandwidth (sequential) performance as compared to the previous generation HPE MSA Gen6 Storage
- Scale beyond 7 PB per array by adding up to 9 MSA 2U LFF 12-drive and/or SFF 24-drive expansion drive enclosures and new high-capacity HDD and SSD MSA media options
- Updated MSA Storage Management Utility (SMU v.4) that supports simple, fast access to the MSA Health Check Tool for routine system maintenance
- Support for non-disruptive, online firmware updates for both MSA Gen7 controllers and drive media
Reasons To Buy
Fast - Real Performance You Can See and Feel
Next generation system architecture supporting incredibly fast performance for an entry-level storage solution. HPE MSA Gen7 Storage delivers up to 2x more IOPS (random) performance with up to 30% more system bandwidth (sequential) as compared to HPE MSA Gen6 Storage.
[1]Real-time, automated data tiering for hybrid configurations, optimizing the use of high-performance SSD media as well as lower-cost HDD storage within the same array. With minimal investment in SSDs, users can increase system IOPS by up to 4x versus HDD-only configurations.
[2]HPE MSA-DP+ advanced RAID technology eliminates the use of idle spare drives by distributing spare capacity across all drives in the disk group and enabling drive rebuild times that are up to 25x faster than traditional RAID.
[3]Affordable - Great Value Across All MSA Configurations
Start small and scale as needed with any combination of SSDs, Enterprise SAS HDDs, or Midline SAS HDDs. "Grow as you go" upgrades are available through low-cost HPE MSA SSD and HDD media 6-packs.
A wide range of HPE MSA Gen7 Storage array models, including value-driven solution bundles for hybrid-flash and all-flash configurations, provide a cost-effective path to high-performance storage on Day 1.
Minimize resources dedicated to daily maintenance and focus on business outcomes with HPE MSA Health Check. A cloud-based tool available to all MSA users at no additional charge, MSA Health Check uses MSA system logs to assess performance and configurations against HPE MSA best practice guidelines.
Simple - The Shared Storage System Anyone Can Use
Start with the unique and intuitive graphical user interface of HPE MSA Storage Management Utility (SMU) that provides step-by-step instructions and guided workflows to set up the array within minutes.
System monitoring and maintenance available through a simplified dashboard offers "at-a-glance" views of system alerts, performance, and capacity usage. New HPE MSA Gen7 innovations include support for online controller/media firmware updates as well as simpler and faster access to MSA Health Check.
System architecture supporting hot-swap controllers, drives, and power supplies, enabling users to quickly complete upgrades and maintenance with minimal downtime.
Description
HPE MSA 2070 12Gb SAS LFF Storage. Storage drive size: 3.5". Chassis type: Rack (2U), Device class: Large Enterprise Business. Number of storage drives supported: 12, Supported storage drive types: HDD & SSD
Specifications
| Storage |
|---|
| Installed storage drive type |
No |
| Supported storage drive types |
HDD & SSD |
| Number of storage drives supported |
12 |
| Storage drive size |
3.5" |
| Storage drives installed |
No |
| Maximum supported storage capacity |
6780 TB |
| Technical details |
|---|
| Device class |
Large Enterprise Business |
| Chassis type |
Rack (2U) |
| Sustainability certificates |
ENERGY STAR |
| Design |
|---|
| Device class |
Large Enterprise Business |
| Chassis type |
Rack (2U) |
| Performance |
|---|
| Device class |
Large Enterprise Business |
| Power |
|---|
| Power supply unit (PSU) capacity |
580 W |
| Number of power supply units |
2 |
| Redundant power supply (RPS) support |
Yes |
| System requirements |
|---|
| Server operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
