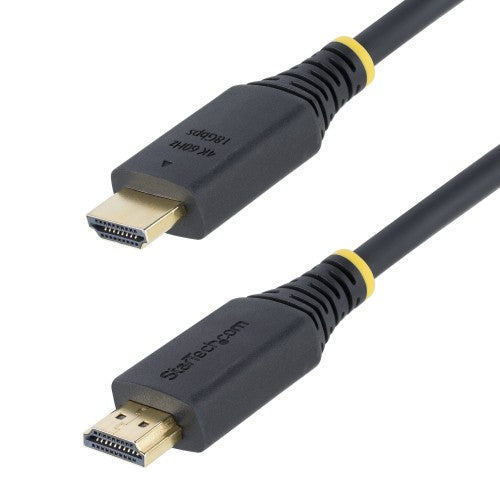

StarTech.com 1ft (30cm) High Speed HDMI Cable, 4K 60Hz/1440p 144Hz, 18Gbps, UHD HDMI 2.0 Cord, TPE Jacket
Key Features
- HIGH PERFORMANCE: High Speed HDMI 2.0 Cable is designed for UHD-enabled HDMI devices; Choose the right HDMI cable at-a-glance with performance markings on connectors for quick and easy identification; Up to 18Gbps for seamless 4K 60Hz video
- FULL-FEATURED HDMI 2.0: High Speed HDMI UHD supports Dynamic HDR10 w/12-bit processing for vibrant picture quality; 7.1 and 32-ch audio w/ARC; Connects to UHD displays, cameras, and dedicated video/media devices; Compatible w/HDMI 1.4/1.2
- QUALITY CONSTRUCTION: Gold-plated connectors rated beyond 10,000 insertions; Durable TPE Jacket and strain reliefs are halogen-free and RoHS compliant; Tested to withstand 2,000 bending cycles at -/+60 degrees; Braided shield for enhanced EMI protection
- APPLICATIONS: Ideal for 4K UHD displays; Up to 144Hz refresh rate at 1440p resolution; Suitable for high performance GPUs and workstations; Connect an HDMI monitor to a 4K docking station
- SPECS: Black; 1-foot (0.3-meter); High Speed HDMI with Ethernet; HDMI 2.0 supports HDR10/ARC/HDCP 2.2/CEC; 4K 60Hz/1440p 144Hz/1080p 240Hz; 18Gbps; 32-ch Audio; Backward Compatible; 30AWG; 6mm (0.24in) O.D.
Description
Connect reliably between HDMI UHD devices using this High Speed HDMI Cable
Connect to a 4K UHD TV or monitor, using this HDMI 2.0 Cable. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked HDMI cables. Eliminate guesswork and always choose the appropriate cable to support full HDMI 2.0 with Ethernet capabilities.
Seamless Compatibility
For seamless operation between HDMI-enabled devices, the HDMI cable is designed for guaranteed HDMI 2.0 performance and backward compatibility.
Durable Design
This High Speed HDMI Cable features a flexible TPE outer jacket that is tested to withstand 2,000 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable. The durable Gold-plated connectors are rated to operate beyond 10,000 insertions.
Supported HDMI 2.0 Features:
This HDMI Cable supports full HDMI 2.0 features:
• Resolutions up to 4K 60Hz using a compatible HDMI source and display
• Supports high refresh rates including 1440p 144Hz and 1080p 240Hz
• 21:9 Aspect Ratio support for cinematic viewing experiences
• High Dynamic Range (HDR10) for higher contrast ratio and vibrant picture quality
• High-Bandwidth Digital Content Protection (HDCP) 2.2 for a secure connection between source and display
• Audio Return Channel (ARC) for sending audio from the TV back to an AV receiver or soundbar
• Up to 32 Uncompressed Digital Audio Channels
• HDMI Ethernet Channel (HEC) for network connectivity over HDMI
• Backward compatible with previous HDMI versions
This HDMI 2.0 Cord is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
240 Hz |
| Colour depth |
12 bit |
| Cable shielding |
Aluminum mylar foil |
| HDMI Ethernet channel |
Yes |
| Audio Return Channel (ARC) |
Yes |
| Product colour |
Black |
| Cable length |
11.8" (0.3 m) |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Gold |
| AWG wire size |
30 |
| HDMI version |
2.0 |
| Data transfer rate |
18 Gbit/s |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
| HDCP |
Yes |
| High Dynamic Range (HDR) supported |
Yes |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10) |
| Cable jacket material |
Thermoplastic elastomer (TPE) |
| HDCP version |
2.2 |
| Supported digital audio channels (uncompressed) |
32 |
| Cable type |
Round cable |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Sustainability |
|---|
| Doesn't contain |
Halogen |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
1.76 oz (50 g) |
| Cable diameter |
0.236" (6 mm) |
| Package width |
4.92" (125 mm) |
| Package depth |
3.54" (90 mm) |
| Package height |
0.394" (10 mm) |
| Package weight |
1.94 oz (55 g) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
4.92" (125 mm) |
| Package depth |
3.54" (90 mm) |
| Package height |
0.394" (10 mm) |
| Package weight |
1.94 oz (55 g) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Doesn't contain |
Halogen |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
170 pc(s) |
| Master (outer) case width |
15.7" (400 mm) |
| Master (outer) case length |
11.8" (300 mm) |
| Master (outer) case height |
11.8" (300 mm) |
