CyberPower CP850PFCLCD uninterruptible power supply (UPS) Line-Interactive 0.85 kVA 510 W 10 AC outlet(s)

850VA, 510W, 2min Full Load, 10 x NEMA 5-15R

Description

Adaptive Sinewave™ UPS – Pure sine wave | 100% Active PFC compatible

The CyberPower CP850PFCLCD Adaptive Sinewave™ uninterruptible power supply (UPS) with pure sine wave output and multifunction LCD safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Its automatic voltage regulation (AVR) topology delivers clean and consistent AC power, protecting connected equipment and preventing costly business interruptions. Its patented GreenPower UPS™ advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models.

CyberPower’s Active PFC Adaptive Sinewave UPS with pure sine wave output solves the critical compatibility issues of non-Sine wave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 5.0). With PC manufacturers adopting high-efficiency Active PFC power supplies—your equipment may be at risk. CyberPower’s innovative Adaptive Sinewave UPS is an affordable solution that ensures equipment utilizing Active PFC power supplies do not unexpectedly shutdown or experience harmful stress when switching from AC power to UPS battery power.

The CP850PFCLCD unit has a capacity of 850VA/510Watts, ten (10) NEMA 5-15R receptacles and one (1) maintenance-free, user-replaceable 12V/8.5Ah batteries. The intelligent multi-function LCD panel displays real-time UPS vitals for ease of control. This unit offers connectivity via one (1) HID USB and one (1) DB9 serial ports. Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.

PowerPanel® Personal Edition UPS Management software automatically closes computer files and safely shuts down the system in case of a power outage. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $250,000 Connected Equipment Guarantee.

- 850VA / 510W Pure sine wave UPS
- Line-Interactive Topology
- AVR & GreenPower UPS™

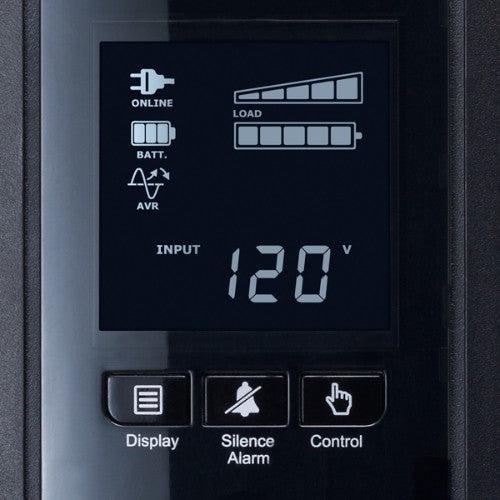

- Multi-function LCD display
- Tower Form Factor

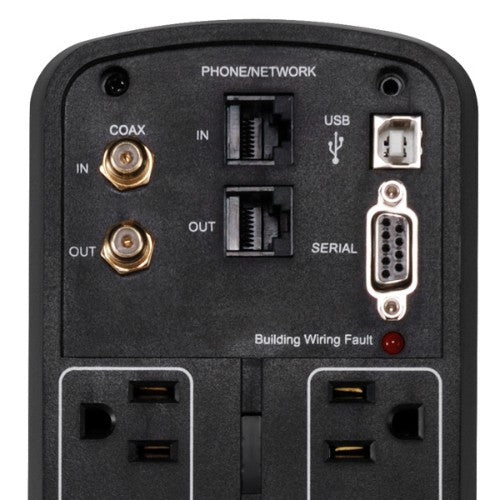

- RJ11/RJ45 and Coax RG6 Protection

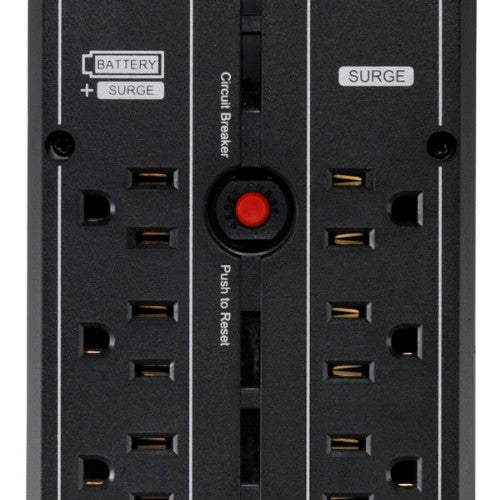

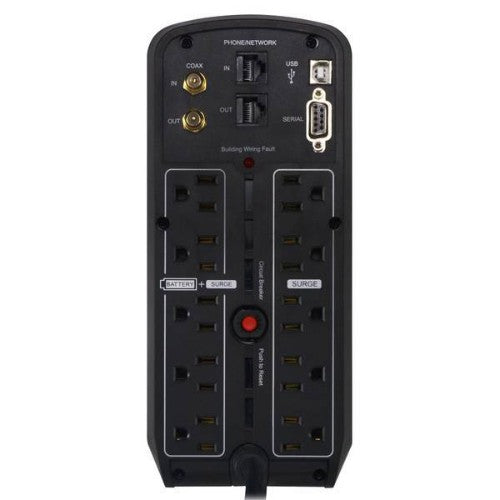

- 10 Outlets / USB and Serial ports
- EMI/RFI filters
- PowerPanel® Personal Edition

Specifications

Power
Output power	510 W
Input operation voltage (min)	78 V
Input operation voltage (max)	142 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	1030 J
Output power capacity	0.85 kVA
Input frequency	50/60 Hz
Ports & interfaces
Cable length	59.8" (1.52 m)
AC outlets quantity	10 AC outlet(s)
AC outlet types	NEMA 5–15R
Serial ports quantity	1
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Battery
Battery type	12V/8.5AH
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Typical backup time at half load	10 min
Typical backup time at full load	2 min
Hot-swap battery	No
Performance
UPS topology	Line-Interactive
LED indicators	Yes
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power	510 W
Input operation voltage (min)	78 V
Input operation voltage (max)	142 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	1030 J
Audible alarm(s)	Yes
Output power capacity	0.85 kVA
Input frequency	50/60 Hz
Design
Form factor	Tower
LED indicators	Yes
Product colour	Black
Certification	UL1778, cUL 107.3, FCC DOC Class B
Cable length	59.8" (1.52 m)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Compliance certificates	RoHS
Certificates
Certification	UL1778, cUL 107.3, FCC DOC Class B
Compliance certificates	RoHS
Other features
Battery type	12V/8.5AH
Weight (imperial)	14.9 lbs
Dimensions (W x D x H) (imperial)	3.9 x 10.4 x 9.1"
