StarTech.com 8NM8-RACK-MOUNT-PDU power distribution unit (PDU) 8 AC outlet(s) 1U Black

StarTech.com 8-Outlet Horizontal Rack Mount Metered PDU, 1U Server Power Strip w/Surge Protector, 8ft (2.4m) Power Cable, TAA

Key Features

• 8-OUTLET 1U RACK MOUNTED METERED PDU: 8x NEMA 5-15R power outlets; 125V max and 15A circuit breaker; Built-in 8ft (2.4m) NEMA 5-15P power cord; Ideal power supply strip for 19" racks in server rooms/closets, data center, and testing labs
• METERED POWER DISTRIBUTION UNIT: Large-font display with optional backlight for real-time monitoring of key power parameters: voltage (V), current (A), wattage (W), and power factor (PF), which indicates the efficiency of the connected devices
• SURGE PROTECTOR: Self-tripping MOV design with mechanical trigger instantly cuts power during surges to protect connected devices; Includes LED status indicator, resettable 15A circuit breaker, and safety cover to prevent accidental resets
• RACK MOUNTABLE: 1U horizontal rackmount PDU for EIA-310-compliant 19-inch server racks/cabinets that are 4in (10.1cm) or deeper; Made of cold-rolled steel w/textured finish for sturdiness & long-lasting durability; 6x rear and 2x front electrical outlets
• THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TAA-compliant rack mount PDU is backed for two years, including free lifetime 24/5 multi-lingual technical assistance

Description

Add eight power outlets to a 19in server rack or cabinet

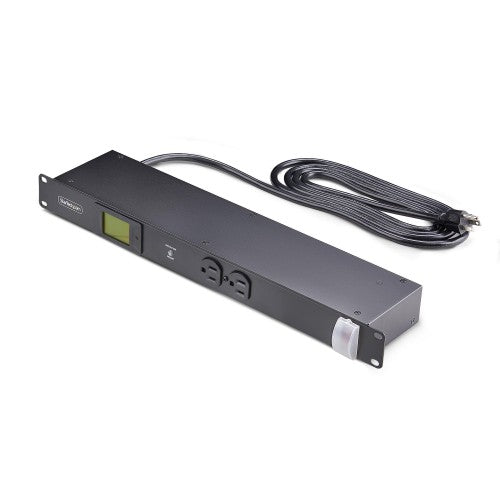

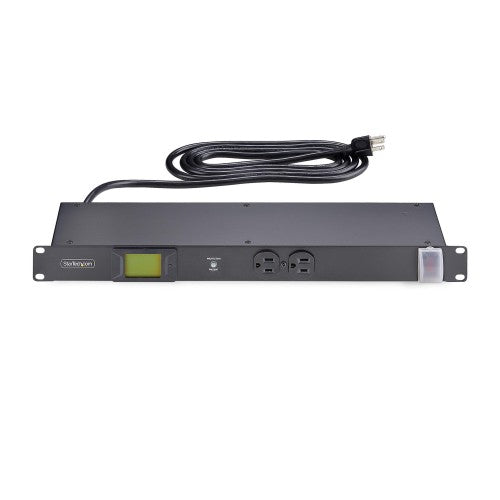

This 1U Rack Mount Metered PDU features a built-in 8ft (2.4m) NEMA 5-15P power cord and 8x NEMA 5-15R outlets, while the surge protection helps ensure the safe and stable operation of critical equipment. A large backlit LCD provides live readings of electrical parameters for connected devices.

Metered Power Distribution Unit

Metering is essential for maintaining equipment performance and stability by enabling real-time reads of key electrical parameters: voltage (V), current (Amp), wattage (W), and power factor (PF). The power factor indicates the efficiency of connected devices, with values closer to 1.0 being the most efficient. Monitoring enables early detection of potential issues, efficient load management, and insights for optimizing energy use.

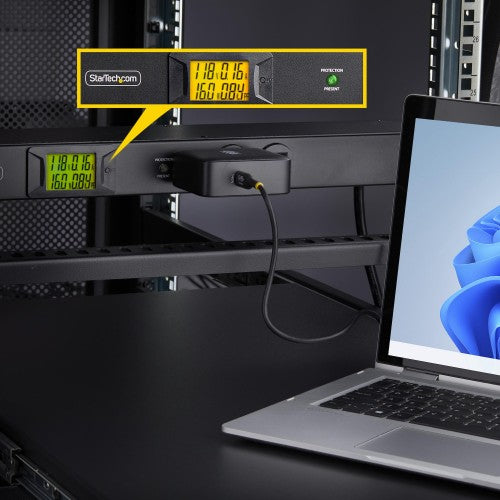

The large-font display provides real-time monitoring of key electrical parameters, while the on-demand backlight helps with visibility in dimly lit scenarios.

Enhanced Power Safety

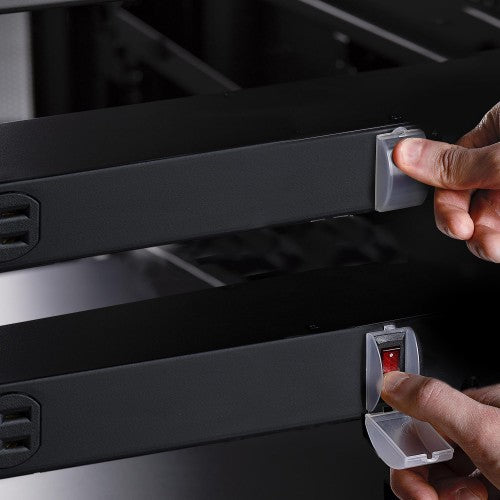

The robust 15A circuit breaker features a mechanical trigger that quickly responds to surges, providing essential protection for the connected. The resettable breaker has a safety cover that prevents unintentional resets. A bright LED indicator confirms active surge protection

Rack Mount Design

1U horizontal rackmount PDU is compatible with EIA-310-compliant 19-inch 2 or 4-post server racks or cabinets that are 4-inch (10.1cm) or deeper

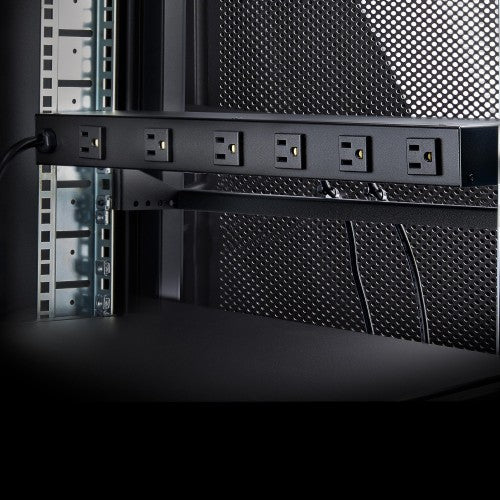

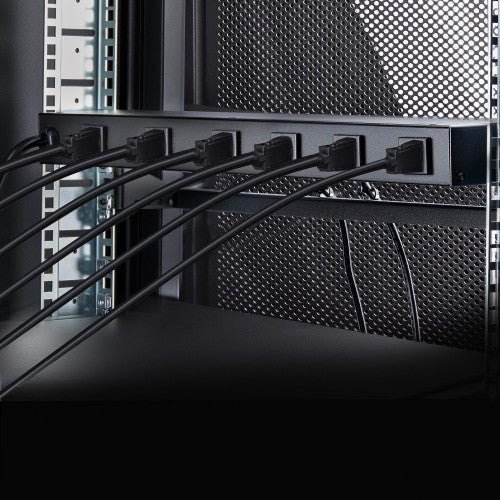

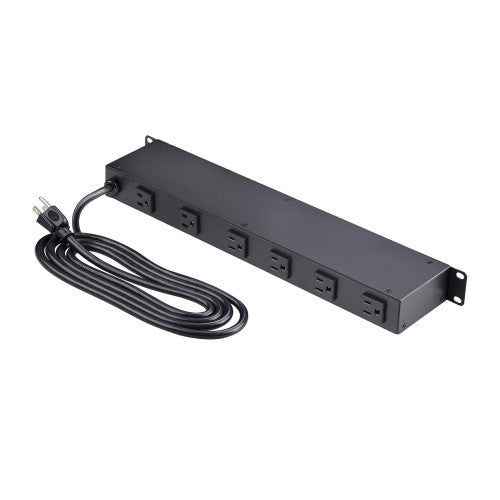

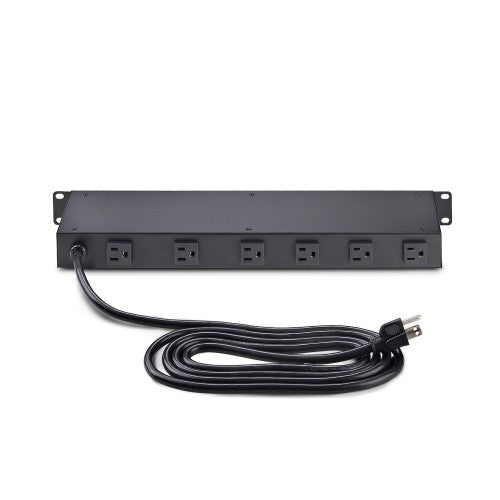

The TAA-compliant cabinet power strip is constructed from cold-rolled steel that ensures sturdiness and features a textured finish that enhances long-lasting durability. The PDU is equipped with a total of eight electrical outlets, including six positioned at the rear and two at the front, providing ample connectivity options for various devices in server rooms, data centers, and other professional environments.

The StarTech.com Advantage

Specifications

Design
On/off switch	Yes
PDU types	Metered
Mounting	Horizontal
Display	LCD
Product colour	Black
Rack capacity	1U
Housing material	Steel
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5-15R
Power plug	NEMA 5-15P
Features
Cable length	94.5" (2.4 m)
LED indicators	Yes
Management features
Monitoring	Current, Power, Voltage
Ergonomics
Cable length	94.5" (2.4 m)
LED indicators	Yes
Display	LCD
Power
Surge energy rating	1080 J
Nominal input voltage	120 V
Nominal output voltage	120 V
Output voltage	125 V
Power protection features	Surge protection
Maximum current	15 A
Maximum total current draw per phase	15 A
Circuit breaker	Yes
Weight & dimensions
Weight	4.41 lbs (2 kg)
Width	19" (483 mm)
Depth	3.78" (96 mm)
Height	1.69" (43 mm)
Package width	21.7" (552 mm)
Package depth	7.28" (185 mm)
Package height	3.15" (80 mm)
Package weight	5.29 lbs (2.4 kg)
Packaging data
Package width	21.7" (552 mm)
Package depth	7.28" (185 mm)
Package height	3.15" (80 mm)
Package weight	5.29 lbs (2.4 kg)
Packaging content
Manual	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Technical details
Compliance certificates	Trade Agreements Act (TAA), cULus
Logistics data
Master (outer) case width	22.4" (570 mm)
Master (outer) case length	8.11" (206 mm)
Master (outer) case height	13.9" (352 mm)
Products per master (outer) case	4 pc(s)
