1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km
Description
Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber
The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

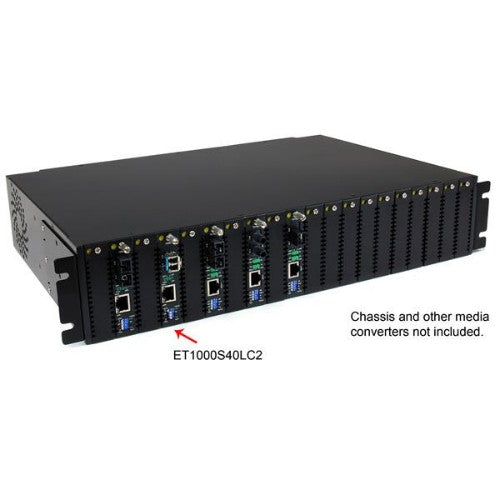

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for added durability in harsh environments
- Cost-effective way to extend/bridge networks using fiber cabling
Specifications
| Network |
|---|
| Converter input interface |
1000Base-T |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Duplex system |
Full, Half |
| Converter output interface |
1000Base-LX, 1000Base-SX |
| Auto MDI/MDI-X |
Yes |
| Maximum data transfer rate |
2000 Mbit/s |
| Fiber optic connector |
LC |
| Performance |
|---|
| Wavelength |
1310 nm |
| Maximum transfer distance |
1574803.1" (40000 m) |
| Fiber mode structure |
Single-mode |
| Mean time between failures (MTBF) |
65000 h |
| Plug and Play |
Yes |
| Features |
|---|
| Plug and Play |
Yes |
| Product colour |
Black |
| Internal |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Fiber optic connector |
LC |

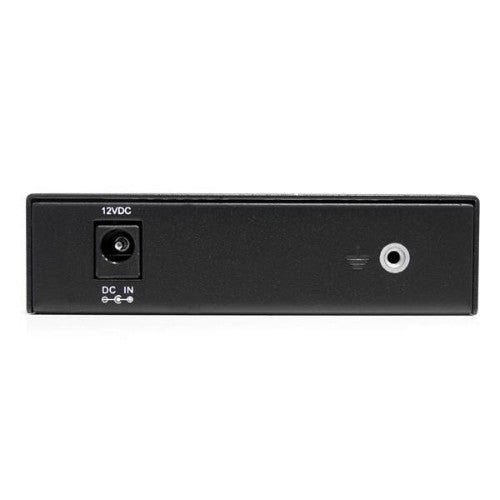

| DC-in jack |
Yes |
| Power |
|---|
| Output voltage |
12 V |
| Output current |
1 A |
| External power adapter |
Yes |
| Weight & dimensions |
|---|
| Weight |
21.9 oz (620 g) |
| Dimensions (WxDxH) |
3.74 x 6.3 x 0.787" (95 x 160 x 20 mm) |
| Package depth |
5.43" (138 mm) |
| Package width |
8.07" (205 mm) |
| Package height |
3.5" (89 mm) |
| Package weight |
26.6 oz (754 g) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Packaging content |
|---|
| Manual |
Yes |
| Packaging data |
|---|
| Package depth |
5.43" (138 mm) |
| Package width |
8.07" (205 mm) |
| Package height |
3.5" (89 mm) |
| Package weight |
26.6 oz (754 g) |
| Technical details |
|---|
| Wavelength |
1310 nm |
| Maximum transfer distance |
1574803.1" (40000 m) |
| Fiber mode structure |
Single-mode |
| Plug and Play |
Yes |
| Internal |
No |
| Harmonized System (HS) code |
85176990 |
| Compliance certificates |
RoHS |
| Design |
|---|
| Product colour |
Black |
| Certification |
CE, FCC |
| Internal |
No |
| Endurance |
|---|
| Mean time between failures (MTBF) |
65000 h |
| Management features |
|---|
| Plug and Play |
Yes |
| Colour |
|---|
| Product colour |
Black |
| Certificates |
|---|
| Certification |
CE, FCC |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Full duplex |
Yes |
| Dimensions (WxDxH) |
3.74 x 6.3 x 0.787" (95 x 160 x 20 mm) |
