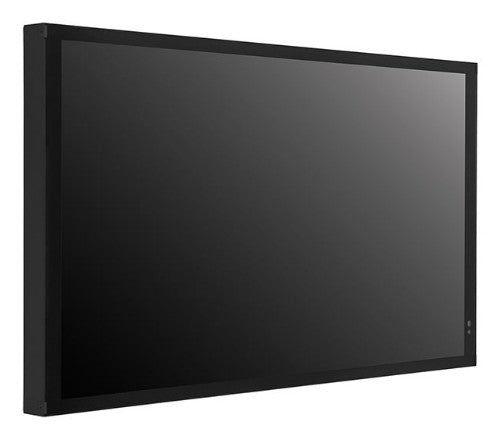

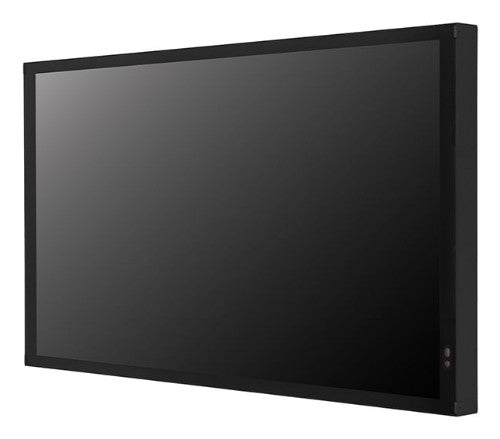

High-brightness IP-rated Outdoor Display, 49", 1920x1080 (FHD), 24/7, eMMC 16GB, webOS6.1, Max 380W, IP56
Key Features
- UL Verified Display Anti-discoloration characteristics
- Resolution : 1,920 × 1,080 (FHD)
- Brightness : 3,500 nits (Typ.), 2,800 nits (Min.)
- Portrait / Landscape
Description
IP-rated Outdoor DisplayLG offers advanced technical solutions equipped with various sensors, providing reliable and effective operations. In diverse spaces under sunlight, the XE3P highlights your content, reducing concerns about excessive operational burdens.
High Visibility Under Strong SunlightWith outstanding high brightness of 3,500 nits (Typ.), the XE3P outdoor display delivers content clearly with captivating passersby. Through IPS technology, viewers can engage with the content at wide viewing angles.
LG Anti-DiscolorationBy focusing on the key pain points, we developed our new "Anti-Discoloration" technology designed to deter both screen yellowing and black circles. With an enhanced thermal solution, the XE3P can deliver long-lasting and stable display quality.
World’s First UL Verified Display for Anti-Discoloration CharacteristicsEspecially for screen yellowing resistance, we obtained the world’s first UL Verification of Anti-Discoloration characteristics for displays. The UL Verified XE3P can alleviate concerns about screen yellowing, the most common but tricky issue for outdoor digital signage products.
IP56 Rated ReliabilityThe XE3P is sealed with IP56 design for reliable operation. It is designed to be protected not only from water but also from dust, which is an essential feature for outdoor applications.
IK10 Protective GlassThe XE3P features IK10 rated protective glass, tempered and laminated for outdoor extremes, minimizing damage from external impacts. This can reduce unnecessary LCD module replacements and can lead to cost-effective maintenance.
Wide Range of Operating TemperatureThe XE3P can be used under a wide range of operating temperature from -30℃ to 50℃.
Conformal CoatingConformal Coating* protects the circuit board and power board against dust, iron powder, humidity, etc.
Efficient Energy ManagementThe screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management. Also, the XE3P uses M+ panel that can offer high energy efficiency and cost savings by decreasing power consumption.
Easy Energy ManagementThe XE3P provides preset brightness settings suited to different locations and usage environments, enabling easy and effective power consumption management according to various scenarios.
Built-in Wi-Fi & BluetoothBuilt-in Wi-Fi and Bluetooth allow easy wireless transfer and distribution of content, help to prevent data hijacking, and ensure convenient and efficient device operation. Additionally, the XE3P is equipped with a beacon that delivers real-time information, using location data for display content.
Vandalism AlertIf the sensor detects the XE3P experiencing an impact above a certain threshold or deviating from its original installation angle, it sends an alert to the administrator, enabling a quick response to issues like vandalism.
Easy InstallationFor easy installation, the XE3P is equipped with a self-leveler tool for checking horizontal and vertical levels during installation, reducing the burden of installation work.
High-performance with webOS 6.1LG webOS 6.1, upgraded with SoC* and web engine, is available on the XE3P for smooth execution of several tasks. The XE3P enhances user convenience with its intuitive GUI**, and it also facilitates easy app development by being compatible with programming languages such as HTML, JavaScript, and CSS.
Web MonitoringThe LG Control Manager*, an embedded web monitoring program, is user-friendly and enables the user to have full access anywhere at anytime from their mobile phone or PC while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
Professional Content PartnersPairing the XE3P with LG SW solutions* would enhance its utilization.
Specifications
| Display |
|---|
| LED backlight |
Yes |
| Display number of colours |
1.07 billion colors |
| Panel type |
IPS |
| LED backlighting type |
Direct-LED |
| Touchscreen |
No |
| Display diagonal |
49" |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
3500 cd/m² |
| HD type |
Full HD |
| Contrast ratio (typical) |
1300:1 |
| Contrast ratio (dynamic) |
500000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Panel life |
50000 h |
| Native aspect ratio |
16:9 |
| Touch response time |
8 ms |
| Native refresh rate |
60 Hz |
| Haze rate |
3% |
| Glass thickness |
0.197" (5 mm) |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A |
| USB port |
Yes |
| Number of speaker outputs |
1 |
| Wi-Fi |
Yes |
| DisplayPorts quantity |
1 |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| RS-232 interface |
Yes |
| USB version |
2.0 |
| USB ports quantity |
2 |
| HDMI input ports quantity |
2 |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Sound pressure level |
62 dB |
| Design |
|---|
| Product design |
Interactive flat panel |
| Placement supported |
Outdoor |
| Orientation |
Horizontal/Vertical |
| Product colour |
Black |
| Performance |
|---|
| Purpose |
Commercial |
| Operating hours (hours/days) |
24/7 |
| International Protection (IP) code |
IP56 |
| On Screen Display (OSD) languages |
Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish |
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
22 |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Wi-Fi |
Yes |
| Panel life |
50000 h |
| Power |
|---|
| Heat dissipation |
1024 BTU/h |
| Power consumption (off) |
0.5 W |
| Power consumption (max) |
380 W |
| Power consumption (typical) |
150 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50/60 Hz |
| Computer system |
|---|
| Operating system installed |
WebOS |
| Operating system version |
6.1 |
| Weight & dimensions |
|---|
| Display width |
45.4" (1153 mm) |
| Display depth |
3.46" (88 mm) |
| Display height |
25.8" (656.2 mm) |
| Display weight |
68.8 lbs (31.2 kg) |
| Base width |
1.51" (3.84 cm) |
| Packaging data |
|---|
| Package width |
50.7" (1287 mm) |
| Package depth |
8.15" (207 mm) |
| Package height |
31.4" (797 mm) |
| Package weight |
79.8 lbs (36.2 kg) |
| Remote control included |
Yes |
| Cables included |
HDMI, Power |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
HDMI, Power |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 50 °C |
| Operating relative humidity (H-H) |
5 - 100% |
| Thin Client |
|---|
| Operating system installed |
WebOS |
| Battery |
|---|
| Battery system included |
Yes |
| Features |
|---|
| Heat dissipation (max) |
1194 BTU/h |
| Technical details |
|---|
| USB connector type |
USB Type-A |
| Panel type |
IPS |
| LED backlighting type |
Direct-LED |
| Internal memory |
16000 MB |
| Introduction year |
2024 |
| Other features |
|---|
| USB connector type |
USB Type-A |
| Panel type |
IPS |
| Wi-Fi |
Yes |
| Power consumption (max) |
380 W |
