NetCommander 8-Port Cat5 1U Rack-Mount Console KVM Switch with 19-in. LCD, TAA
Key Features
- Occupies just 1U of space in a rack-mountable drawer
- Low-cost Cat5 cabling allows longer distances, reduces cable clutter
- 19” LCD screen supports video resolutions up to 1366 x 768
- Simplifies IT tasks with easy switching between all 8 ports
- Expandable - Cascade a second level of KVM switches to control up to 128 servers from a single station using B072-008-1, B072-008-1A, B072-016-1 and/or B072-016-1A to increase the number of ports.
- TAA compliant for GSA Schedule purchases
Description

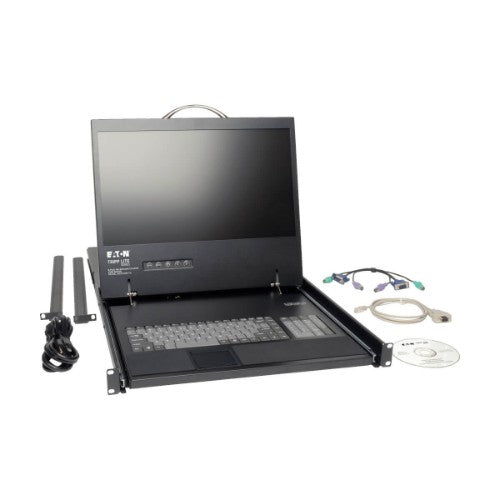

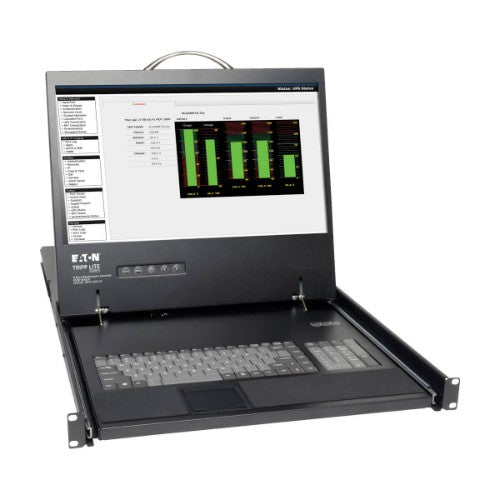

The B070-008-19 KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to eight computers/servers.
The B070-008-19 uses inexpensive, user-supplied Cat5e/6/6a and a Server Interface Unit so you can control computers/servers located up to 100 feet away from the switch. You can switch easily between the ports using an on-screen display (OSD) or keyboard hot key commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19-inch LCD screen supports video resolutions up to 1366 x 768.

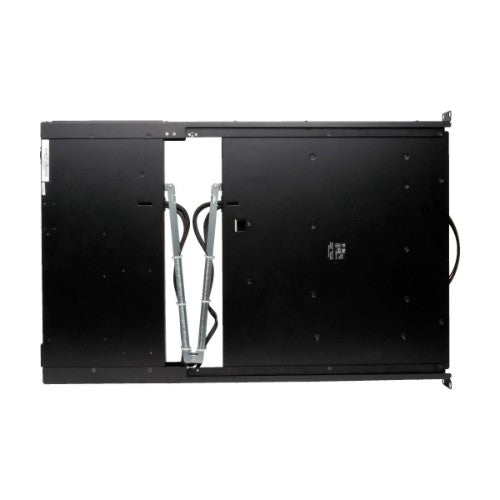

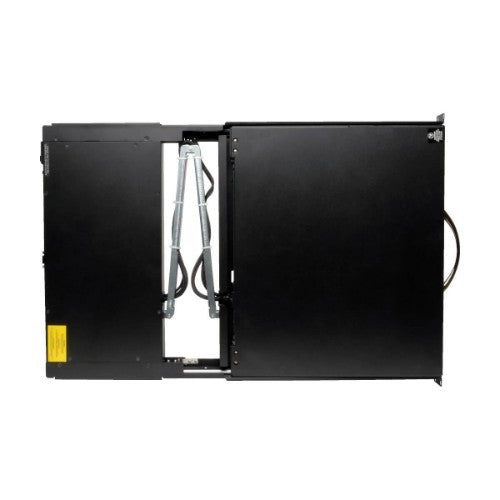

The B070-008-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Note: B051-000 remote access IP unit is not compatible with the B070-008-19 or B070-016-19 NetCommander® Cat5 1U Rack-Mount Console KVM Switch Series.
Specifications
| Display |
|---|
| Display |
LCD |
| Display diagonal |
19" |
| On Screen Display (OSD) |
Yes |
| Display resolution |
1280 x 1024 pixels |
| Technical details |
|---|
| Country of origin |
Taiwan |
| Relative humidity |
0 - 80% |
| Operating temperature (T-T) |
-40 - 158 °F |
| KVM switch ports quantity |
8 |
| Height (in Rack Units) |
1 |
| Product colour |
Black |
| Built-in KVM switch |
Yes |
| Weight (imperial) |
36 lbs |
| Compliance certificates |
RoHS |
| Ports & interfaces |
|---|
| Interface |
VGA, USB, PS/2 |
| Power |
|---|
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50/60 Hz |
| Certificates |
|---|
| Certification |
UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1 |
| Weight & dimensions |
|---|
| Weight |
30.9 lbs (14 kg) |
| Width |
17.7" (449.3 mm) |
| Height |
1.71" (43.4 mm) |
| Depth |
28.4" (722.4 mm) |
| Packaging data |
|---|
| Package width |
23.4" (595.1 mm) |
| Package depth |
32.8" (833.9 mm) |
| Package height |
6.3" (160 mm) |
| Package weight |
40.6 lbs (18.4 kg) |
| Logistics data |
|---|
| Master (outer) case width |
23.4" (595.1 mm) |
| Master (outer) case length |
32.8" (833.9 mm) |
| Master (outer) case height |
6.3" (160 mm) |
| Master (outer) case gross weight |
40.6 lbs (18.4 kg) |
| Products per master (outer) case |
1 pc(s) |
