mATX, Mini ITX, DTX, 3.5"/2.5" x 2, USB 3.0, USB 2.0
Reasons To Buy

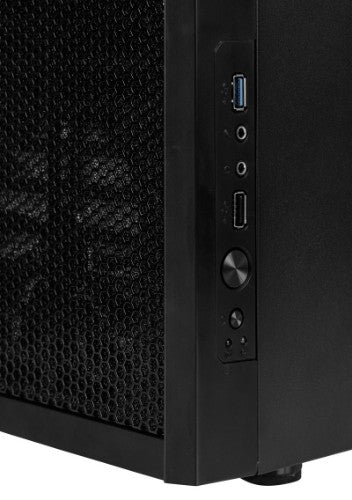

USB 3.0 I/O Panel
1x USB 3.0 with internal connector, 1x USB 2.0
1 x 120 mm Silent Fan
One Silent Series R2 fan included: 1x 120 mm in front
Smart HDD/SSD positioning
Innovative HDD positioning which mounts the HDD or SSDs vertically on the mounting bracket with anti-vibration silicone grommets
Description
The Fractal Design Core Series offers a unique combination of design, cooling performance and value.
The Core 1000 USB 3.0 brings forth many features usually only seen in more expensive and larger cases. It supports long graphics cards up to 350mm in length as a result of the innovative, vertical HDD mounting bracket. The front panel is easily removable and pre-fitted with fan filters to ensure a dust free interior.
The sleek black interior is contrasted with white expansion slots while all HDD mountings are fitted with anti-vibration silicone grommets for optimal silence.
Key Features- Simple yet elegant mesh front panel allowing for increased airflow through the case
- Optimized for performance in a compact, micro-ATX form factor with multiple cooling options
- NEW: 1 x USB 3.0 with internal connector, 1 x USB 2.0
- One Silent Series R2 fan included: 1 x 120mm in front
- A total of 3 fan slots (1 x 120mm in front, 1 x 92mm in rear, 1 x 120mm in side panel)
- Innovative HDD positioning which mounts the HDD or SSDs vertically on the mounting bracket with anti-vibration silicone grommets
- Supports long graphics cards up to 350mm in length
- Supports various combinations of drive sets ups: 3 x 2.5" SSD, 2 x 3.5" HDD or 1 x 2.5" SSD + 1 x 3.5" HDD
- Dust filter for front fan position
Specifications
| Technical details |
|---|
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
2 |
| Supported motherboard form factors |
DTX, micro ATX, Mini-ITX |
| Supported HDD sizes |
2.5,3.5" |
| Side window |
No |
| Reset button |
Yes |
| Built-in speaker(s) |
No |
| Product colour |
Black |
| Number of expansion slots |
4 |
| Maximum CPU cooler height |
5.83" (14.8 cm) |
| Maximum graphics card length |
13.8" (35 cm) |
| Type |
PC |
| Form factor |
Midi Tower |
| Harmonized System (HS) code |
84733080 |
| Indication |
|---|
| LED indicators |
Yes |
| Ergonomics |
|---|
| Reset button |
Yes |
| LED indicators |
Yes |
| Design |
|---|
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
2 |
| Supported motherboard form factors |
DTX, micro ATX, Mini-ITX |
| Side window |
No |
| Reset button |
Yes |
| LED indicators |
Yes |
| Built-in speaker(s) |
No |
| Product colour |
Black |
| Number of expansion slots |
4 |
| Maximum CPU cooler height |
5.83" (14.8 cm) |
| Maximum graphics card length |
13.8" (35 cm) |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
|---|
| Supported power supply form factors |
ATX |
| Power supply included |
No |
| Ports & interfaces |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Audio input |
Yes |
| Audio output |
Yes |
| USB 2.0 ports quantity |
1 |
| Cooling |
|---|
| Front fans installed |
1x 120 mm |
| Number of front fans supported (max) |
1 |
| Front fans diameters supported |
120 mm |
| Number of side fans supported (max) |
1 |
| Side fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
92 mm |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| Packaging content |
|---|
| Manual |
Yes |
| Weight & dimensions |
|---|
| Width |
6.89" (175 mm) |
| Depth |
16.5" (420 mm) |
| Height |
14" (355 mm) |
| Weight |
9.04 lbs (4.1 kg) |
| Packaging data |
|---|
| Package width |
9.06" (230 mm) |
| Package height |
16.3" (415 mm) |
| Package depth |
18.6" (473 mm) |
| Package weight |
11 lbs (5 kg) |
| Manual |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Other features |
|---|
| Manual |
Yes |
| Harmonized System (HS) code |
84733080 |
