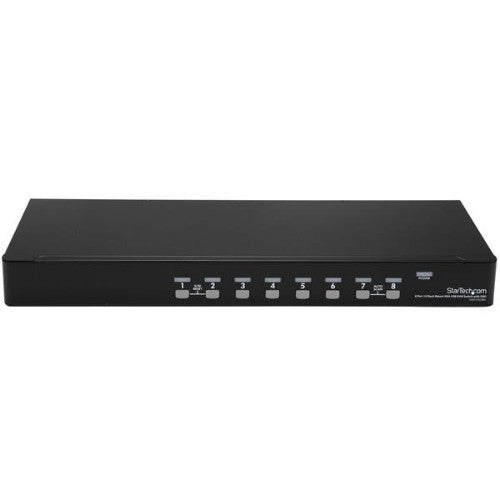

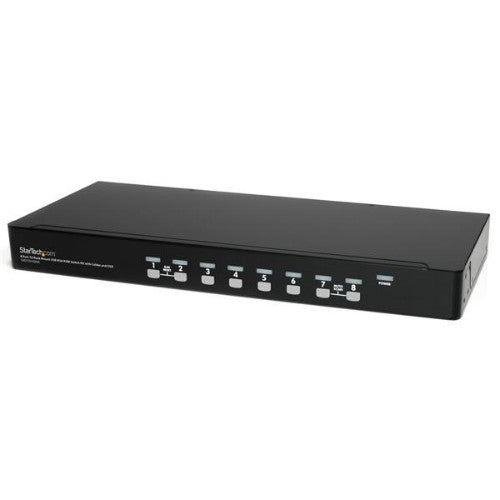

StarTech.com 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables - Rack mount KVM - VGA KVM Switch - 8 Port KVM Switch
Description
The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.
The USB KVM delivers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.
A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.

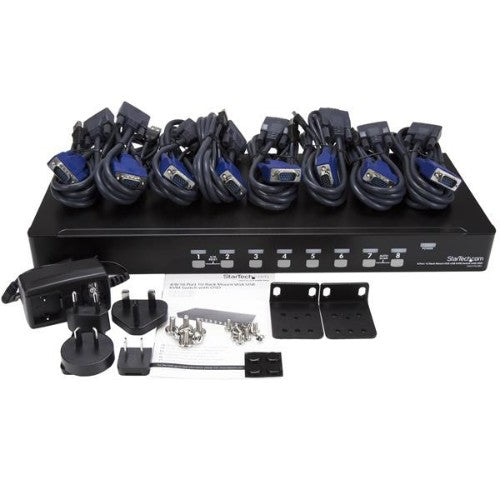

The StarTech.com Advantage- For simple setup, the USB/VGA KVM cables to connect all 8 ports to servers and PCs are included in the box
- Maximum compatibility with USB keyboard and mouse combos, and wireless setups; unlike most KVMs, this unique model extracts the keyboard strokes from the USB connection ensuring your setup will work flawlessly
- Rugged rack mountable metal chassis allows for versatility and durability in almost any environment
Specifications
| Ports & interfaces |
|---|
| Console USB ports quantity |
2 |

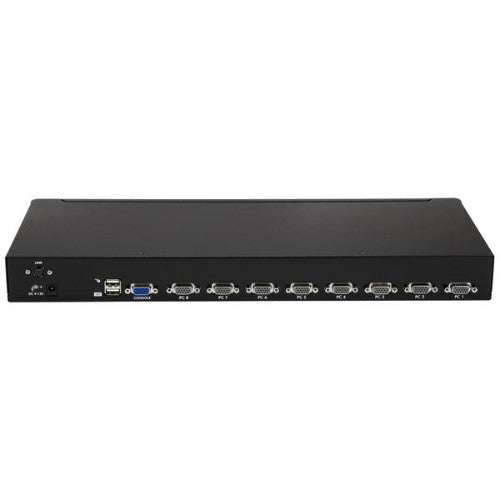

| Console ports |
USB A, VGA (D-Sub) |
| USB connector type |
USB Type-A |
| Number of computers controlled |
8 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
VGA |
| USB 2.0 ports quantity |
2 |
| VGA (D-Sub) ports quantity |
9 |
| DC-in jack |
Yes |
| Performance |
|---|
| Daisy chain |
Yes |
| Plug and Play |
Yes |
| Maximum resolution |
1920 x 1440 pixels |
| Maximum analog resolution |
1920 x 1440 pixels |
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
Yes |
| Plug and Play |
Yes |
| On Screen Display (OSD) |
Yes |
| LED indicators |
Power |
| Hot keys |
Yes |
| IP control |
No |
| Audio support |
No |
| Cascadable |
Yes |
| Compliance certificates |
RoHS |
| Design |
|---|
| Product colour |
Black |
| Rack mounting |
Yes |
| LED indicators |
Power |
| Hot keys |
Yes |
| Certification |
CE, FCC, TAA, REACH |
| Cascadable |
Yes |
| Rack capacity |
1U |
| Housing material |
Steel |
| Display |
|---|
| On Screen Display (OSD) |
Yes |
| Power |
|---|
| Output current |
1 A |
| Compatible power plug types |
AU, EU, UK, US |
| Output voltage |
12 V |
| Power consumption (typical) |
12 W |
| External power adapter |
Yes |
| Input voltage |
100 - 240 V |
| Video |
|---|
| Maximum resolution |
1920 x 1440 pixels |
| Maximum analog resolution |
1920 x 1440 pixels |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
17.1" (435 mm) |
| Depth |
7.09" (180 mm) |
| Height |
1.77" (45 mm) |
| Weight |
4.85 lbs (2.2 kg) |
| Package width |
10.3" (262 mm) |
| Package depth |
23.9" (606 mm) |
| Package height |
4.76" (121 mm) |
| Package weight |
10.4 lbs (4.7 kg) |
| Packaging data |
|---|
| Package width |
10.3" (262 mm) |
| Package depth |
23.9" (606 mm) |
| Package height |
4.76" (121 mm) |
| Package weight |
10.4 lbs (4.7 kg) |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Cables included |
KVM |
| Manual |
Yes |
| AC adapter included |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, TAA, REACH |
| Other features |
|---|
| IP control |
No |
| Audio support |
No |
| Hot keys |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
