StarTech.com 10m USB 3.0 Active Extension Cable - M/F
Description
Extend the distance between a computer and a USB 3.2 Gen1 device by an additional 10 meters

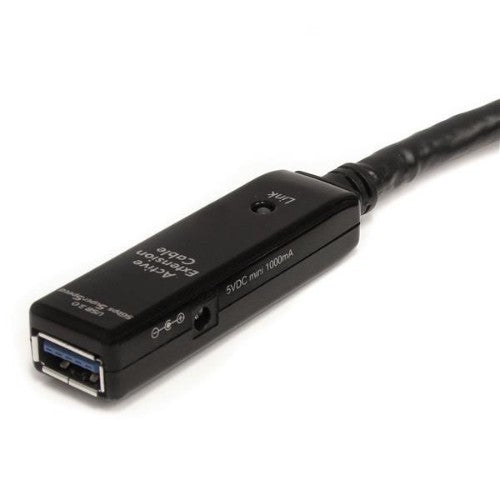

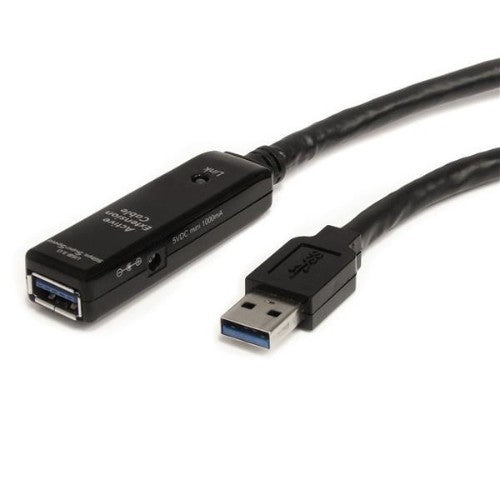

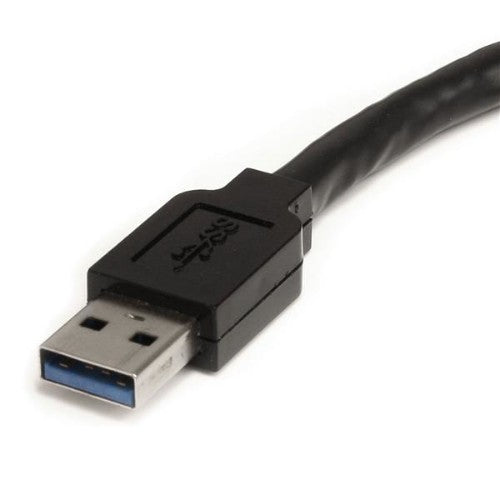

The USB3AAEXT10M, 10-meter Active USB 3.2 Gen 1 Extension Cable, offers one USB type-A (male) connector and one USB type-A (female) connector, and provides an active extension of USB 3.2 Gen 1 devices of up to 10-meters (32.8-feet).

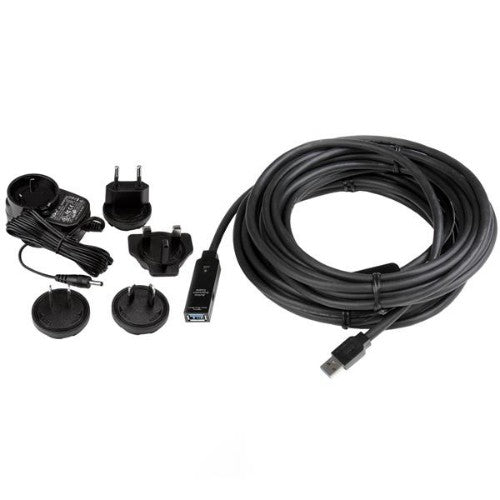

An all-in-one cable for overcoming distance restrictions as well as power source limitations; the active USB 3.2 Gen 1 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables. Up to 2 of these cables can be daisy-chained together, allowing the connection to be extended a total of 20-meters. If necessary, the USB device can be powered from a wall outlet using the Universal AC power adapter provided with the cable.
The USB3AAEXT10M extension cable (USB Extender) supports high speed USB 3.2 Gen 1 transfer rates of up to 5Gbps, and is backed by StarTech.com's 2-year Warranty.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Plug and Play |
Yes |
| USB version |
USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 |
USB A |
| Connector 2 |
USB A |
| Cable length |
393.7" (10 m) |
| Connector contacts plating |
Nickel |
| Maximum data transfer rate |
5000 Mbit/s |
| Product colour |
Black |
| Certification |
CE, FCC, REACH |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Maximum data transfer rate |
5 Gbit/s |
| Output voltage |
5 V |
| Output current (max) |
2 A |
| Weight |
17.3 oz (491 g) |
| Quantity per pack |
1 pc(s) |
| Power |
|---|
| Output voltage |
5 V |
| Output current (max) |
2 A |
| Weight & dimensions |
|---|
| Cable length |
393.7" (10 m) |
| Weight |
17.3 oz (491 g) |
| Package width |
8.86" (225 mm) |
| Package depth |
8.43" (214 mm) |
| Package height |
2.36" (60 mm) |
| Package weight |
26.7 oz (758 g) |
| Packaging data |
|---|
| Package width |
8.86" (225 mm) |
| Package depth |
8.43" (214 mm) |
| Package height |
2.36" (60 mm) |
| Package weight |
26.7 oz (758 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Ports & interfaces |
|---|
| USB version |
USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 |
USB A |
| Connector 2 |
USB A |
| Connector contacts plating |
Nickel |
| Data transmission |
|---|
| Maximum data transfer rate |
5000 Mbit/s |
| Technical details |
|---|
| Product colour |
Black |
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Product colour |
Black |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
