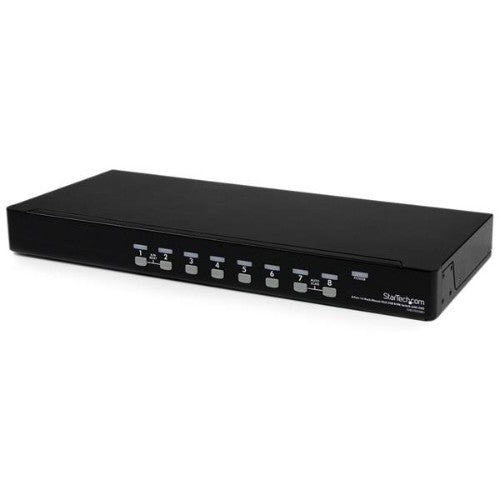

8 Port 1U Rackmount USB KVM Switch with OSD
Description
Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor
The SV831DUSBU 8 Port 1U Rack Mount USB KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and monitor.

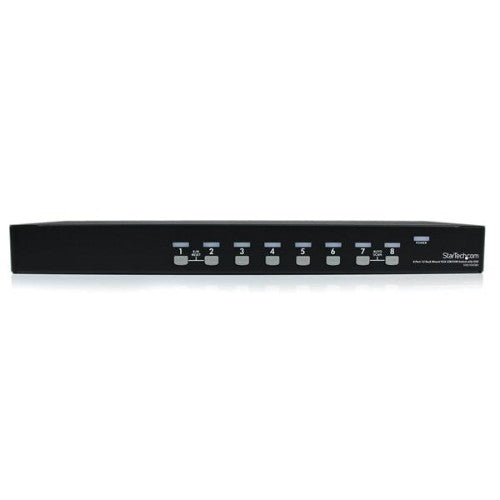

The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers added configuration options and convenience through an On Screen Display (OSD).
A suitable addition to server room operations, the 8 port switch can be rack mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 64 computers from this single switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
- Cascade configuration supported for one spot control of up to 64 computers
- Rugged, rack mountable 1U metal chassis is ideal for any environment
Specifications

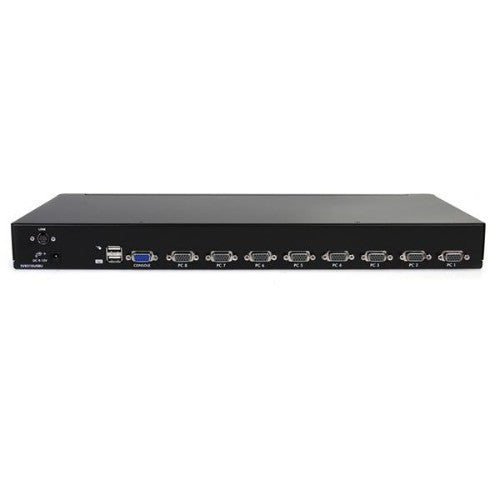

| Ports & interfaces |
|---|
| Console USB ports quantity |
2 |
| Console ports |
USB A, VGA (D-Sub) |
| Number of computers controlled |
8 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
VGA |
| Audio connections |
No |
| VGA (D-Sub) ports quantity |
9 |
| DC-in jack |
Yes |
| Performance |
|---|
| Daisy chain |
Yes |
| Plug and Play |
Yes |
| Maximum resolution |
1920 x 1440 pixels |
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
Yes |
| Plug and Play |
Yes |
| On Screen Display (OSD) |
Yes |
| LED indicators |
Yes |
| IP control |
No |
| Audio support |
No |
| Compliance certificates |
RoHS |
| Design |
|---|
| Mean time between failures (MTBF) |
150000 h |
| Product colour |
Black |
| Rack mounting |
Yes |
| LED indicators |
Yes |
| Certification |
CE, FCC, TAA, REACH |
| Rack capacity |
1U |
| Housing material |
Steel |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
Yes |
| Power |
|---|
| Input current |
0.8 A |
| Output current |
1.5 A |
| Power plug type |
Type M |
| Compatible power plug types |
EU, UK, US |
| Output voltage |
12 V |
| Input voltage |
100 - 240 V |
| Video |
|---|
| Maximum resolution |
1920 x 1440 pixels |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
21.3" (540 mm) |
| Depth |
7.09" (180 mm) |
| Height |
1.77" (45 mm) |
| Weight |
6.39 lbs (2.9 kg) |
| Package width |
3.5" (89 mm) |
| Package depth |
22.6" (573 mm) |
| Package height |
10.6" (268 mm) |
| Package weight |
7.28 lbs (3.3 kg) |
| Packaging data |
|---|
| Package width |
3.5" (89 mm) |
| Package depth |
22.6" (573 mm) |
| Package height |
10.6" (268 mm) |
| Package weight |
7.28 lbs (3.3 kg) |

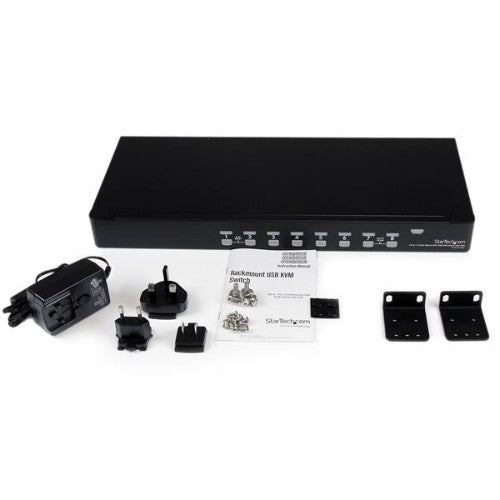

| Packaging content |
|---|
| Rubber feet |
Yes |
| Manual |
Yes |
| AC adapter included |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, TAA, REACH |
| Other features |
|---|
| Connectivity technology |
Wired |
| Power requirements |
110 - 240 AC |
| Ports quantity |
8 |
| Dimensions (WxDxH) |
21.3 x 7.09 x 1.77" (540 x 180 x 45 mm) |
| IP control |
No |
| Audio support |
No |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
