CyberPower PR1000LCD uninterruptible power supply (UPS) 1 kVA 700 W 8 AC outlet(s)

1000VA, 700W, 6 x NEMA 5-15R Out, 1 x USB, 1 x DB-9, 1 x EPO, EMI/RFI Filters, Mini-Tower

Description

Smart App UPS | Network and Servers

The CyberPower Smart App Sinewave PR1000LCD mini-tower uninterruptible power supply (UPS) with LCD Control Panel and pure sine wave output is Active PFC compatible for safeguarding mission-critical servers, telecom equipment, VoIP and internetworking hardware that require seamless pure sine wave power. Its full Automatic Voltage Regulation (AVR) boost/buck technology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. Patented GreenPower UPS advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models.

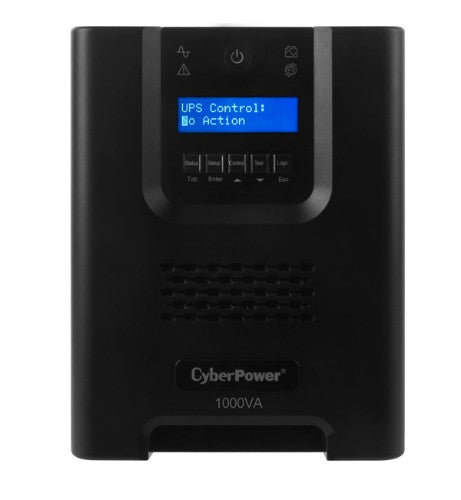

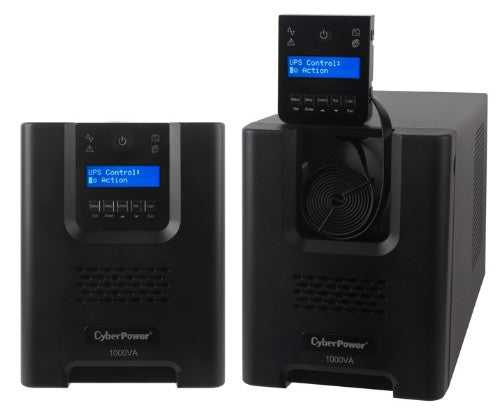

The LCD control panel provides 41 different settings to check status and customize the operating settings for the PR1000LCD, plus it can be removed and mounted separately from the UPS for ease of use regardless of where the UPS is installed. Functions include menus for checking power status on (11) different parameters, (23) settings for setup and control of the UPS, (3) battery test & calibration options, and (4) selections in the Log menu. With its attached cable the LCD control panel can be removed from the UPS and relocated up to 4.5 FT away from the UPS for ease of viewing when installed in hard to reach locations.

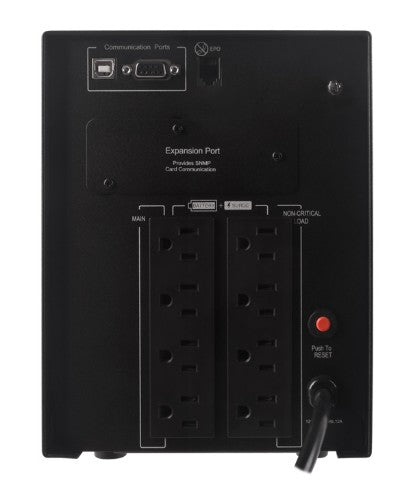

The PR1000LCD unit has a capacity of 1000VA/700Watts, six (6) NEMA 5-15R receptacles and two (2) maintenance-free, user-replaceable 12V/12.0Ah batteries. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. EMI/RFI filters increase the immunity of the load to noise disturbances.

This UPS unit incorporates microprocessor-based fully digital control and includes PowerPanel Business Edition providing the user unsurpassed flexibility and control. An optional SNMP / HTTP Remote Management adapter (RMCARD202) supports remote management and control of the PR1000LCD through a standard web browser. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $375,000 Connected Equipment Guarantee.

Specifications

Power
Output power	700 W
Input operation voltage (min)	75 V
Input operation voltage (max)	154 V
Surge energy rating	1030 J
Emergency Power Off (EPO)	Yes
Output power capacity	1 kVA
Input frequency	47/63 Hz
Ports & interfaces
Cable length	70.9" (1.8 m)
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
USB 2.0 ports quantity	1
Serial ports quantity	1
Battery
Battery type	12V/12AH
Battery technology	Sealed Lead Acid (VRLA)
Number of battery cells	2
Battery recharge time	8 h
Typical backup time at half load	24.5 min
Typical backup time at full load	7 min
Hot-swap battery	Yes
Performance
LED indicators	Battery replacement
EMI/RFI noise filtering	Yes
Power protection features	Overload
Audible alarm(s)	Yes
Features
Output power	700 W
Input operation voltage (min)	75 V
Input operation voltage (max)	154 V
Surge energy rating	1030 J
EMI/RFI noise filtering	Yes
Emergency Power Off (EPO)	Yes
Power protection features	Overload
Audible alarm(s)	Yes
Output power capacity	1 kVA
Input frequency	47/63 Hz
Design
Form factor	Mini Tower
LED indicators	Battery replacement
Product colour	Black
Certification	UL1778, cUL 107.3, FCC DOC Class A
Cable length	70.9" (1.8 m)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Compliance certificates	RoHS
Certificates
Certification	UL1778, cUL 107.3, FCC DOC Class A
Compliance certificates	RoHS
Weight & dimensions
Weight	44.1 lbs (20 kg)
Width	6.7" (170.2 mm)
Height	8.7" (221 mm)
Depth	17" (431.8 mm)
Packaging data
Bundled software	PowerPanel
Other features
Battery type	12V/12AH
Overload protection	Yes
Nominal output voltage	120 V
Management platform	SNMP/HTTP
Compatible operating systems	Windows 2000, 2003, XP 32/64, Vista 32/64, 7, Server 2008.
Packaging content
Bundled software	PowerPanel
